APPENDIX
Applying Stamps to Narrow Media
Example: Applying stamp to #10 envelopes.
The addition of the narrow media guide allows stamping of media widths from 4” to 5”.
Note: Without this guide installed the minimum media width for applying stamps is 5”.
1. Remove the Side Rail (1) from the Narrow Media Guide Assembly.
2. Raise the T-650’s Media Thickness Adjustment (14) to the highest setting.
3. Remove the Center Support Plate (6) from the T-650.
4. Install the Narrow Media Guide Assembly in place of the Center Support Plate, as shown
below.
5. Position (slide) the Narrow Media Guide Assembly, closer to or farther away from the
Left Media Guide Assembly (7), in order to accommodate the width of your media.
6. Move the Right Media Guide Assembly (5) against the Narrow Media Guide Assembly,
to hold it in place.
Important: When moving the Right Media Guide Assembly (5) the transport must be
turning at a medium speed. Move guide slowly to avoid damage.
7. Reposition the Media Hold-down Guide as shown below.
8. Setup Head 1 to apply stamps. See T-650 Operations Manual for details.
9. Readjust the Media Thickness Adjustment (14) to accommodate your media.
10. Run the Job.
Media Hold-down
Guide

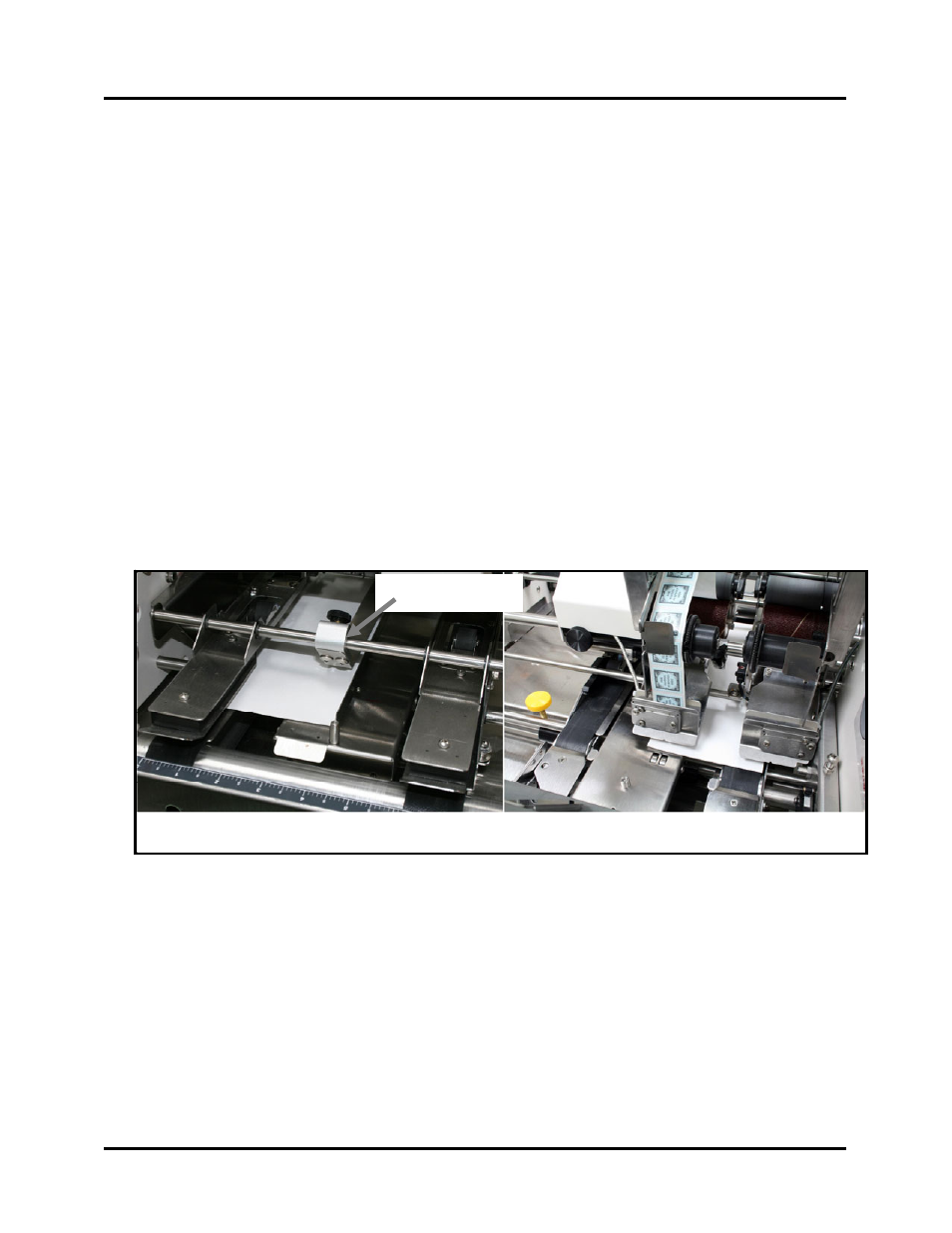

ENTRANCE VIEW EXIT VIEW
