I-Series Indoor Gas Fireplace
Operation
Property Damage Hazard. Excessive heat can cause property damage.
The appliance can stay lit for many hours. Turn off the appliance if it is not going
be attended for any length of time. .
CAUTION
Remote Operation
The Proflame 2 Transmitter controls the following fireplace
functions:
1. Main Burner On/Off
2. Main Burner flame modulation (6 levels).
3. Choice of standing or intermittent pilot (CPI/IPI).
4. Thermostat and Smart thermostat functions.
5. Variable Accent light (6 Levels).
6. Fan speed modulation (6 levels).
The Proflame 2 Transmitter uses a streamlined design with a
simple button layout and informative LCD display, see Figure 8
Sec.10. A Mode Key is provided to index between the features
and a Thermostat Key is used to turn On/Off or index through
Thermostat functions, see Figure 10 Sec.10. Additionally, a
Key Lock feature is provided .
The Proflame 2 System consists of the following elements:
1. Pilot Assembly
2. Proflame Gas Valve.
3. Proflame 2 Control Module
4. Wiring Harness
5. Variable Speed fans
6. Variable Accent Lights
7. Proflame 2 remote control
8. Battery Pack
9 Manual override switch
NOTE: Can not be used with home automation systems.
.
WARNING
Do not expose remote control to temperatures below 0°C (32°F) or above 50°C (122°F)

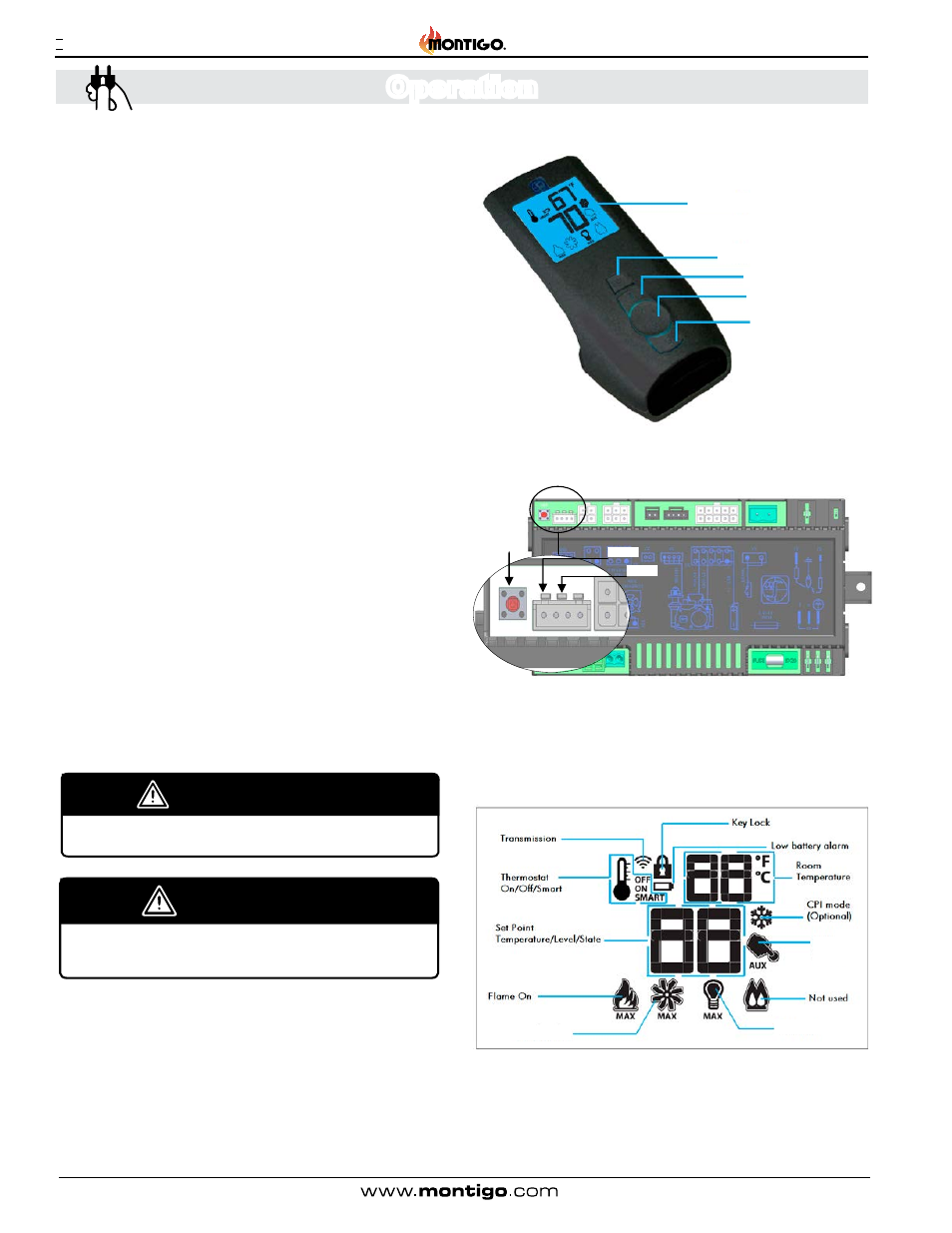

Figure 8 Sec.10 Proflame 2 Remote Control
Figure 9 Sec.10 Proflame 2 Control Module
SW1
LED1
LED2
SW1 = Programing Button
LED1 = Red Diagnostic Light
LED2 = Amber Programing Remote Control Light
Blue Back lit LCD display
On/Off Key
Thermostat Key
Up/Down Arrow Key
Mode Key
Figure 10 Sec.10 Remote Control LCD display.
Accent lights
Fans
Not Used
