I-Series Indoor Gas Fireplace
Installation

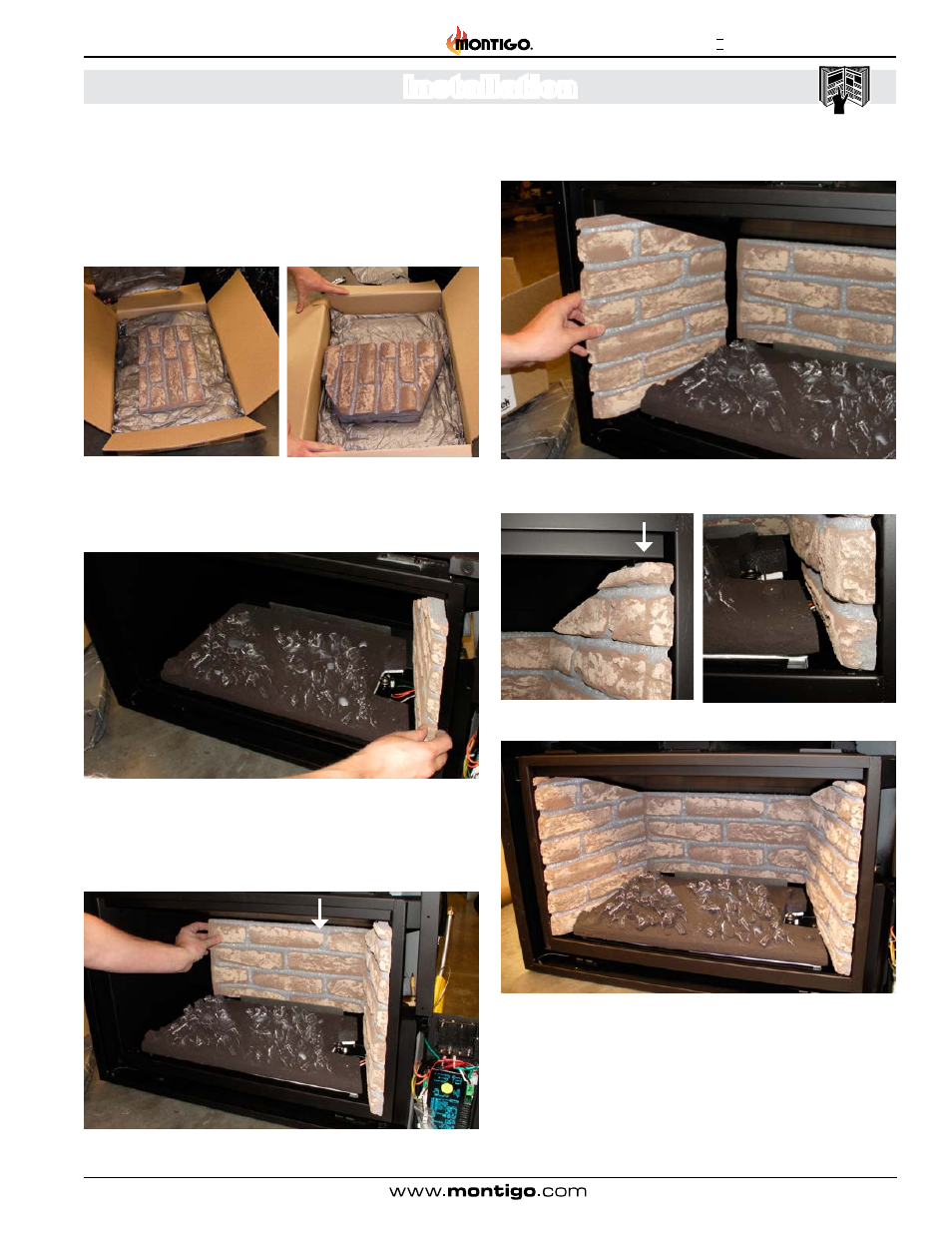

Brick Panel Installation
The 30FIDV-LGS must only be used with the Firebox Panels
installed. With the Fireplace Door removed, the panels can be
easily installed.
Figure 1 Sec.9
1). Make sure all the Brick Panels are received in good order
2). Slide the side panel along the wall of the Firebox towards the
back of the Firebox. There is a retainer clip at the top and at the
bottom of the Firebox. These Firebox Panels will slide within them.
Leave enough room to slide the rear panel behind the side panel.
Figure 2 Sec.9
Figure 3 Sec.9
3). Place the Rear Brick Panel behind the Right Panel. This panel
can be installed upside down, so make curtain that the grout lines
line up with the side panel, make sure grout line is at the top of the
rear panel. Push right side panel back until it hits the rear panel.
Adjust right panel so brick and grout lines line up.
4) . Install the Left Brick Panel along the left side of the Firebox.
Figure 4 Sec.9
Figure 5 Sec.9 Retainer detail Top and Bottom
5). Push top retainer in tighter if needed.
Figure 6 Sec.9 Completed brick installation
