XG00516-
150204
I-Series Indoor Gas Fireplace
Installation

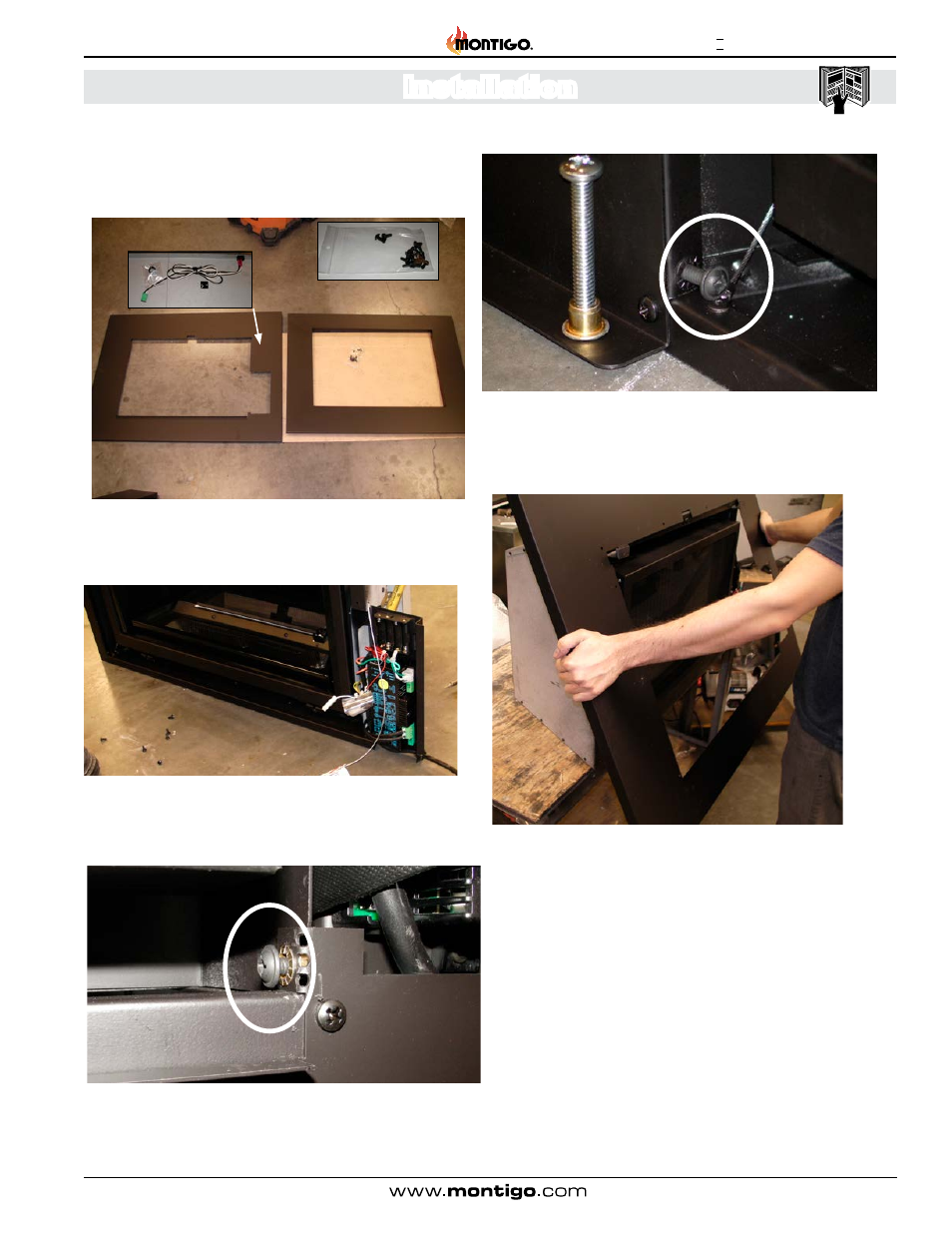

Four Sided Faceplate Installation
The Faceplate Surround has 2 main parts, the rear panel
and the front panel. The Rear Panel has an master override
switch installed on the upper right corner. The Rear Panel
has to be installed first.
3) Lift the Rear Faceplate up and over the Magnets located the
top of the fireplace.
1). Remove the Lighting Instructions from the Control area
and leave on the floor in front of the unit.
Figure 23 Sec.7 Four Sided Faceplate Kit Contents
Figure 24 Sec.7
2). Make sure that the attachment screw is installed in the small
tab at the lower front right part of the Rear Faceplate and the lower
left corner of the firebox shell.
Figure 25 Sec.7
Figure 26 Sec.7
Found behind panel
Screws supplied
Figure 27 Sec.7
