I-Series Indoor Gas Fireplace
Installation

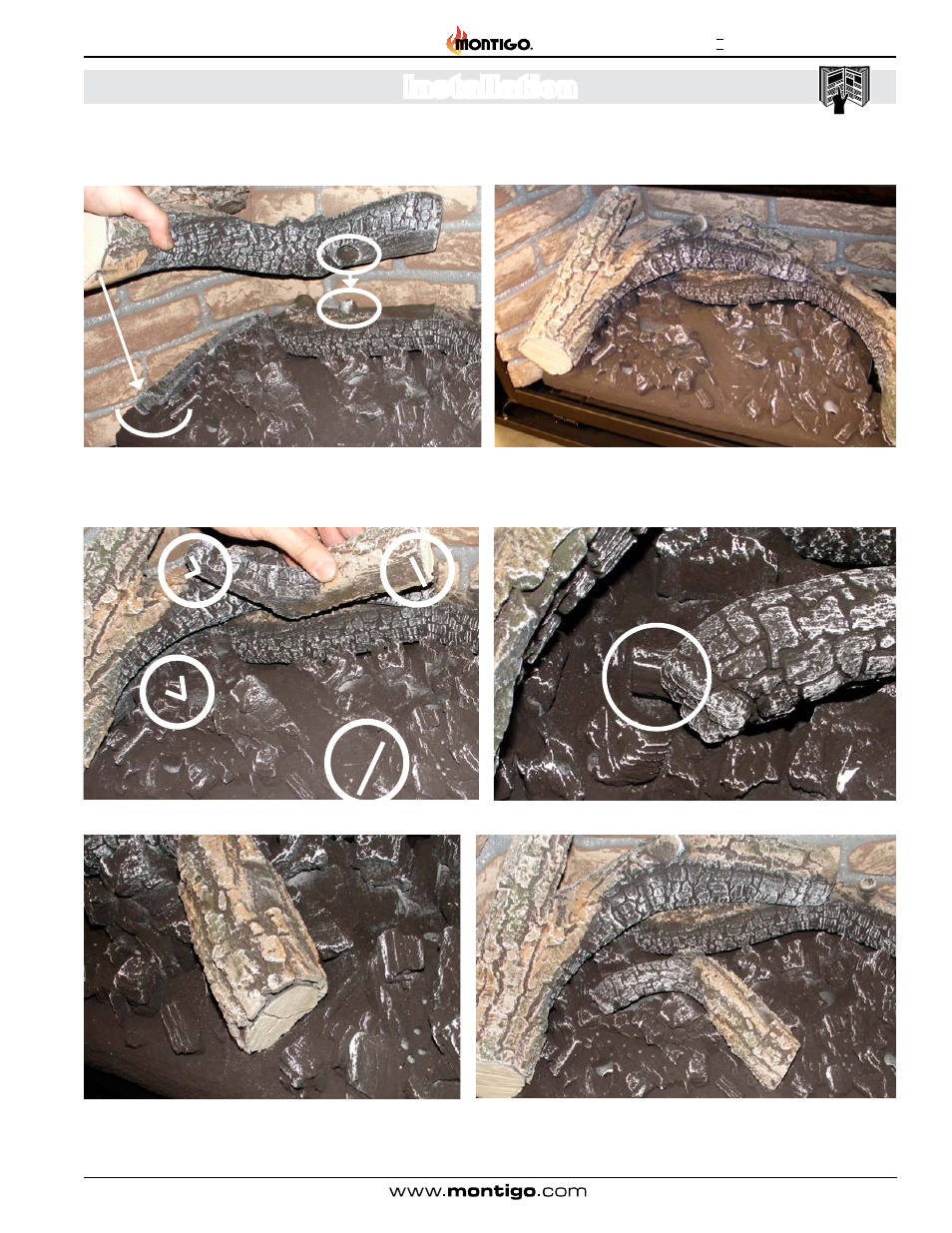

Figure 21 Sec.9 Log 2 installation
4). Place the second log on top of the first log ceramic pin and fit the front end of the log into the cradle of the ceramic burner, see
figure 18d.
Figure 22 Sec.9 Log 3 installation
5). Place the third log on the ceramic burner. Them ember part of the log locates on an ember on the burner. The front of the log
locates to a groove in the burner, see figure 18g-18j.
Figure 23 Sec.9 Log 3 installation details
Figure 24 Sec.9 Log 3 installation details
