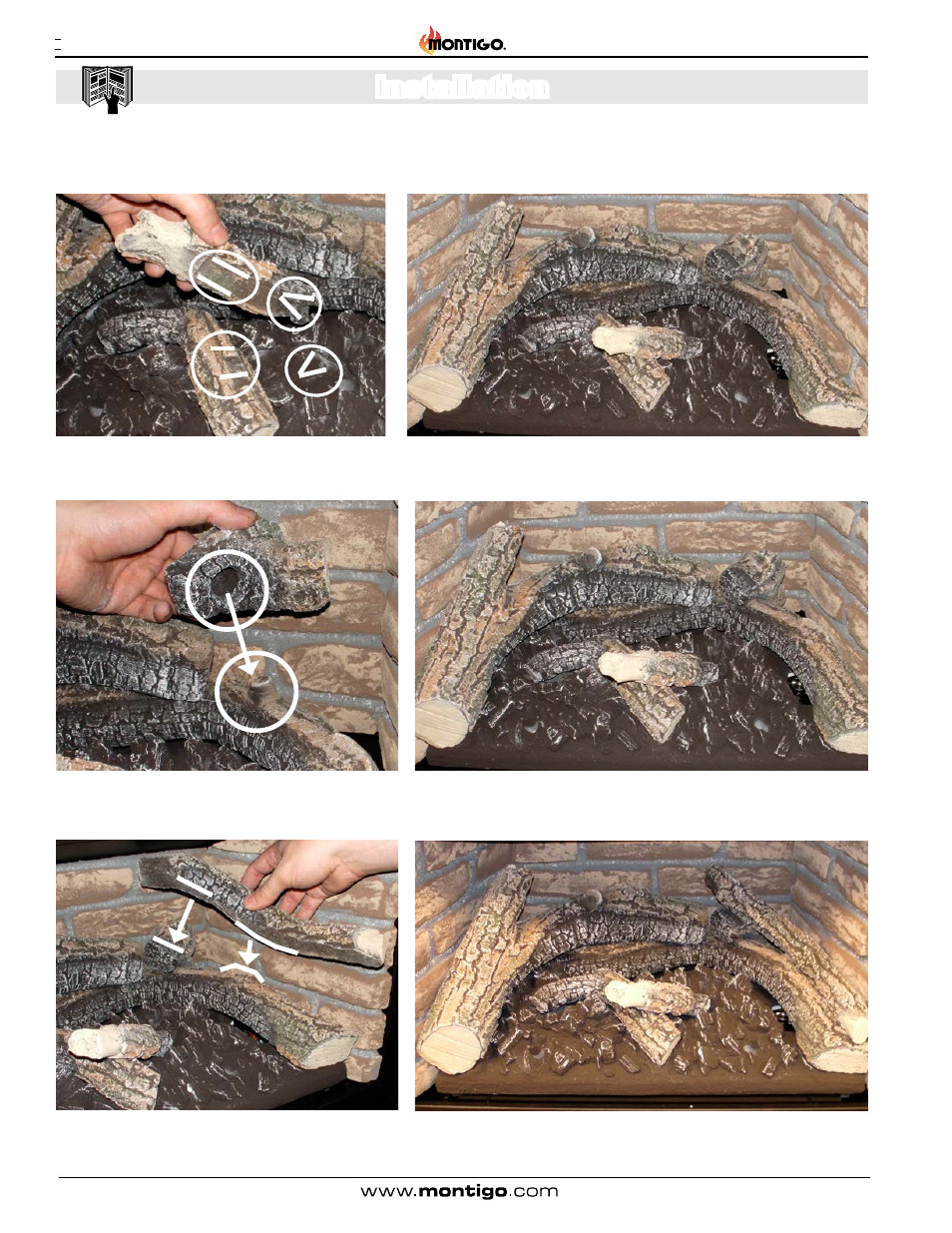

Figure 25 Sec.9 Log 4 installation
6). Place the forth log on top of the third log. The ember part of the fourth log locates on a 'V' shaped bump on the burner, see
figure 18k.
7). Place the fifth log on top of the first log. The first log has a ceramic pin to locate the fifth log, see figure 18m.
Figure 26 Sec.9 Log 5 installation details Figure 27 Sec.9 Log 5 installation
8). Place the sixth log on top of the fifth and first log. The curve in the sixth log meets up with a locator on the first log. The fifth log
has a groove in it. Line up the front and sixth log with this groove, see figure 18o.
Figure 28 Sec.9 Log 6 installation details Figure 29 Sec.9 Log 6 installation
