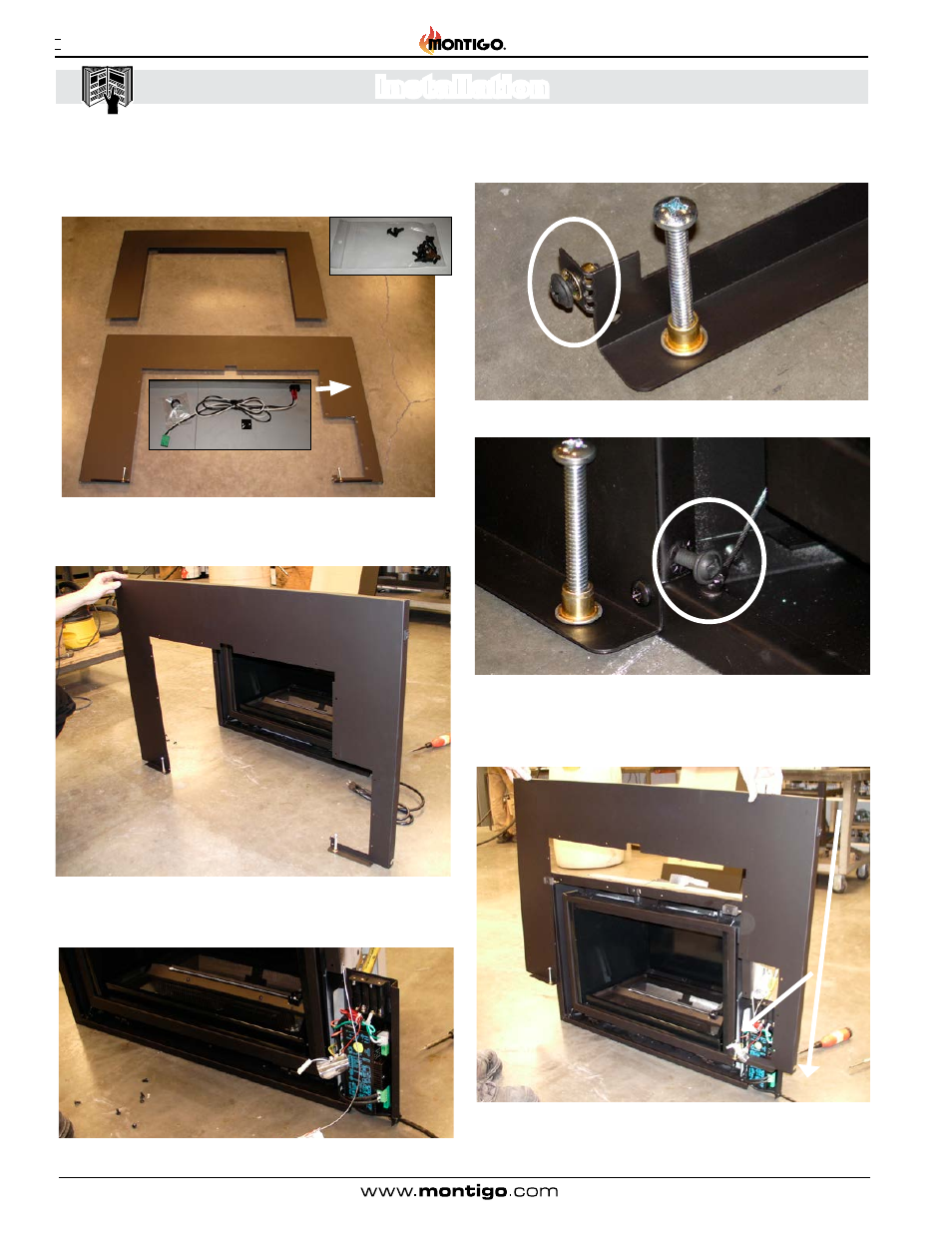

I-Series Indoor Gas Fireplace
Installation
Standard or Oversized Faceplate Installation
The Faceplate Surround has 2 main parts, the rear panel
and the front panel. The Rear Panel has an master override
switch installed on the upper right corner. The Rear Panel
has to be installed first.
Figure 6 Sec.7 Standard or Oversized Faceplate Kit Contents
3) Lift the Rear Faceplate up and over the Magnets located the
top of the fireplace.
Figure 7 Sec.7 The Rear Faceplate Panel
1). Remove the Lighting Instructions from the Control area and
leave on the floor in front of the unit.
Figure 8 Sec.7
Figure 9 Sec.7
2). Make sure that the attachment screw is installed in the small
tab at the lower front right part of the Rear Faceplate and the lower
left corner of the firebox shell.
Figure 10 Sec.7
Found behind panel
Screws supplied
Figure 11 Sec.7
