I-Series Indoor Gas Fireplace
Installation
13). Reinstall the 2 screws to secure the top of the control board
mounting bracket. Using the zip strap supplied, secure the excess
of wires neatly within the control / valve area. Re-install the 2
screws that keep the valve body from swinging out from the unit.
When swinging valve back in use care to not pinch or kink
wires or pilot gas line. Inspect pilot gas line for leaks.
Converting the main burner orifice to LP
15). Place the LP main orifice into the end of the socket wrench.
Being sure not to cross thread the orifice, install the orifice into
the mounting within the air shutter box.
14). Remove burner, see burner removal section. Using a socket
wrench and driver, loosen and remove the main burner orifice.
17). Remove the pilot hood from the pilot assembly
Converting the pilot burner orifice to LP
16). Remove the spring clip that retains the Pilot Flame Hood.
18). Using an Allen key, remove the NG Pilot Orifice

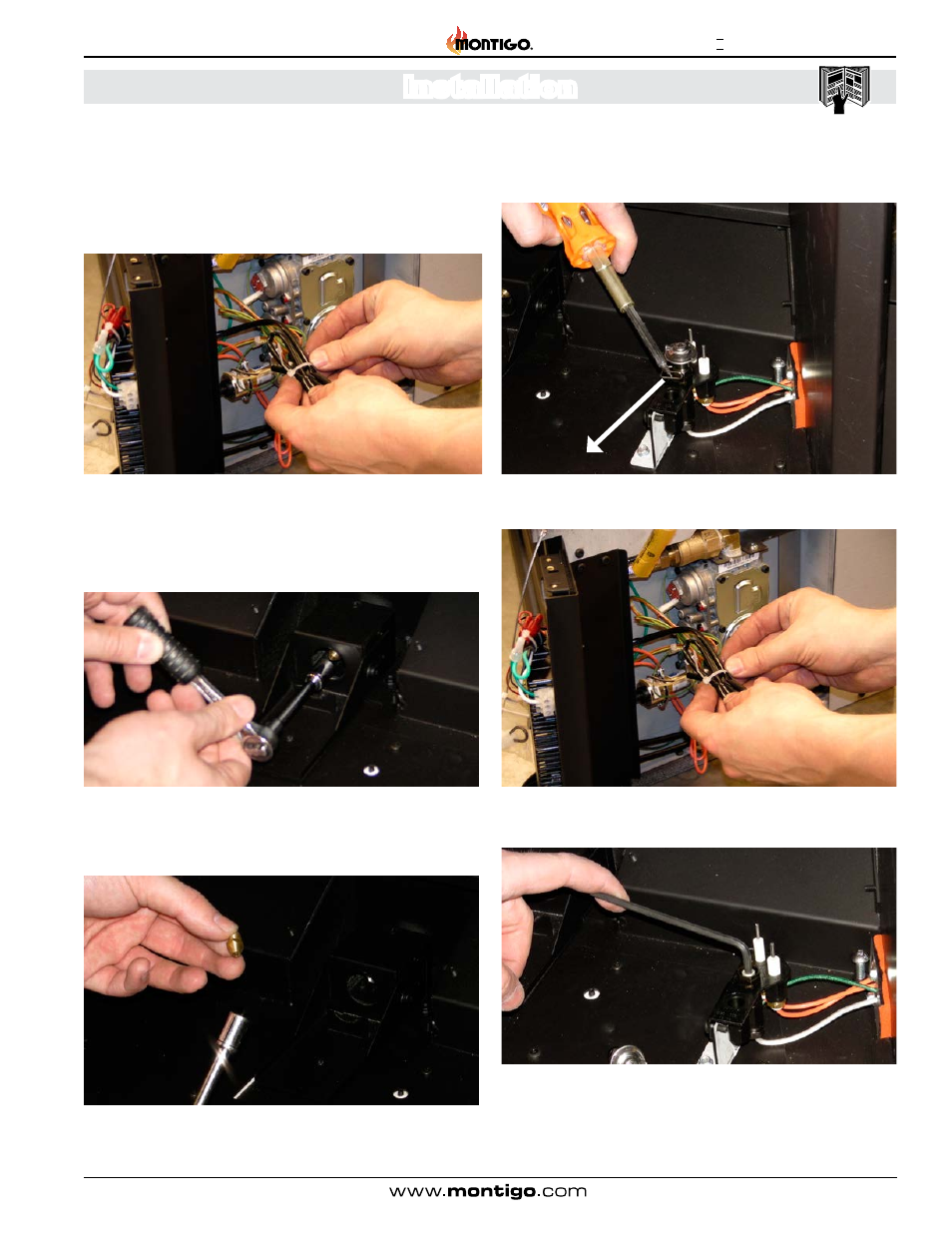

Figure 13 Sec.6
Figure 14 Sec.6
Figure 15 Sec.6
Figure 16 Sec.6
Figure 17 Sec.6
Figure 18 Sec.6
