I-Series Indoor Gas Fireplace
Installation

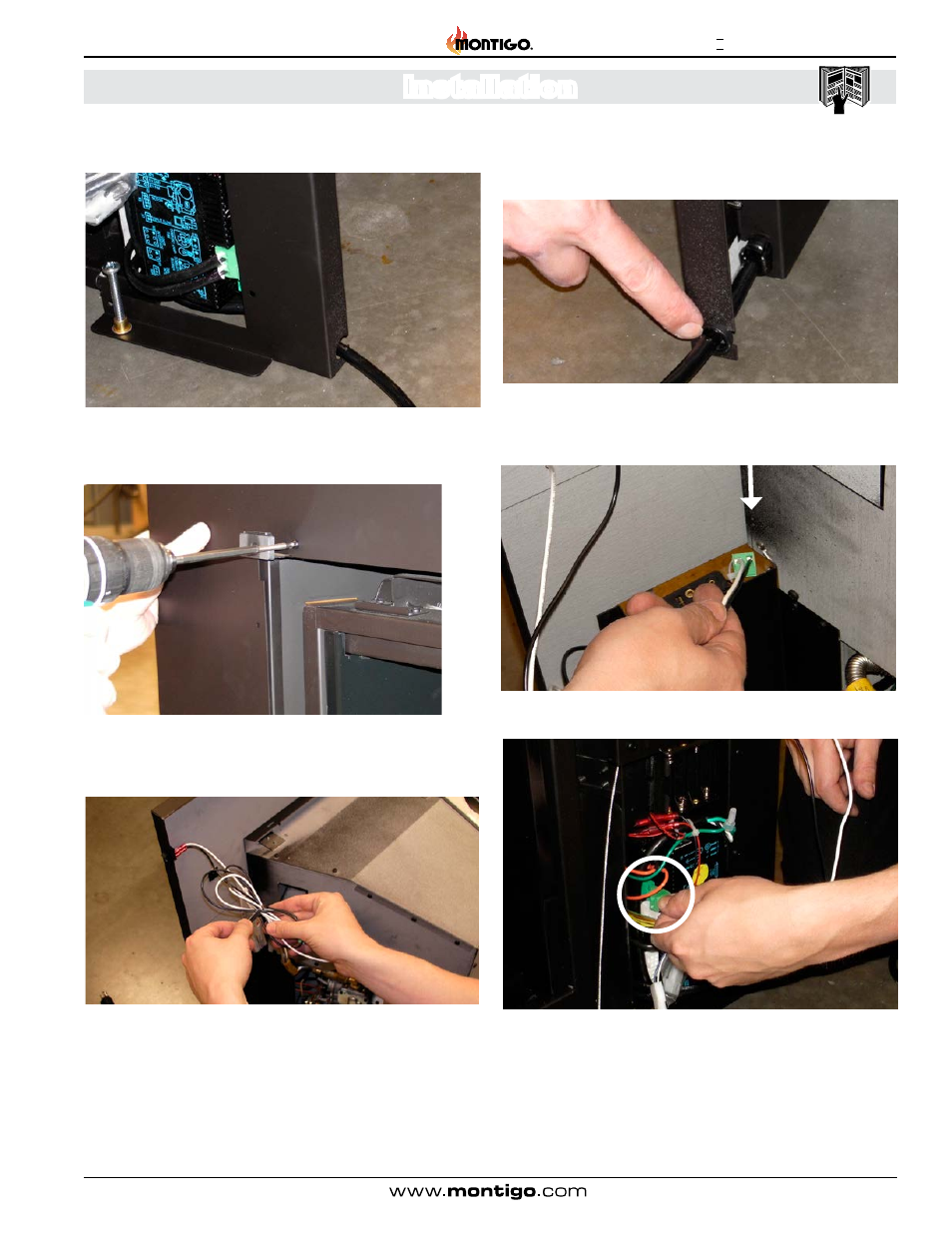

4) Temporarily, place the Electrical Cord through the hole in the
right side of the Rear Faceplate
Figure 12 Sec.7
5). Attach the Rear Faceplate to the Firebox using the screws
provided (13 locations)
Figure 13 Sec.7
6). Remove the twist tie and Zip Strap that is on the On / Off
Switch wire harness.
Figure 14 Sec.7
7). Slip the Split Plastic Grommet, found in the plastic bag attached
to the master override switch, around the Power Cable and then
press it into the provision on the right lower side of the Rear
Faceplate to secure the Power Cord.
Figure 15 Sec.7
8). Thread the On/Off Wire Harness through the gap between the
Control Board Mounting Bracket and the Rear Faceplate Panel.
Figure 16 Sec.7
9) Connect the Plug to the appropriate terminal on the Control Panel.
Figure 17 Sec.7
