Montigo 30FID Traditional - Manual (Page 11)

Page 11
XG00516- 150204
I-Series Indoor Gas Fireplace
Installation
10"
254
Max
Allowable
Mantel
Area
30"
32"
34"
36"
38"
16"
406
Min
16"
18"
20"
22"
24"
26"
28"
32" 28" 24" 20" 16" 12" 8" 4"
Mantle
Side Wall
Gas Insert
Wall Face
Non combustible facing
materials must be used above
the unit, up to the minimum
required mantel height clearance
and for the entire width of the
fireplace opening. This includes
all types of possible installations.

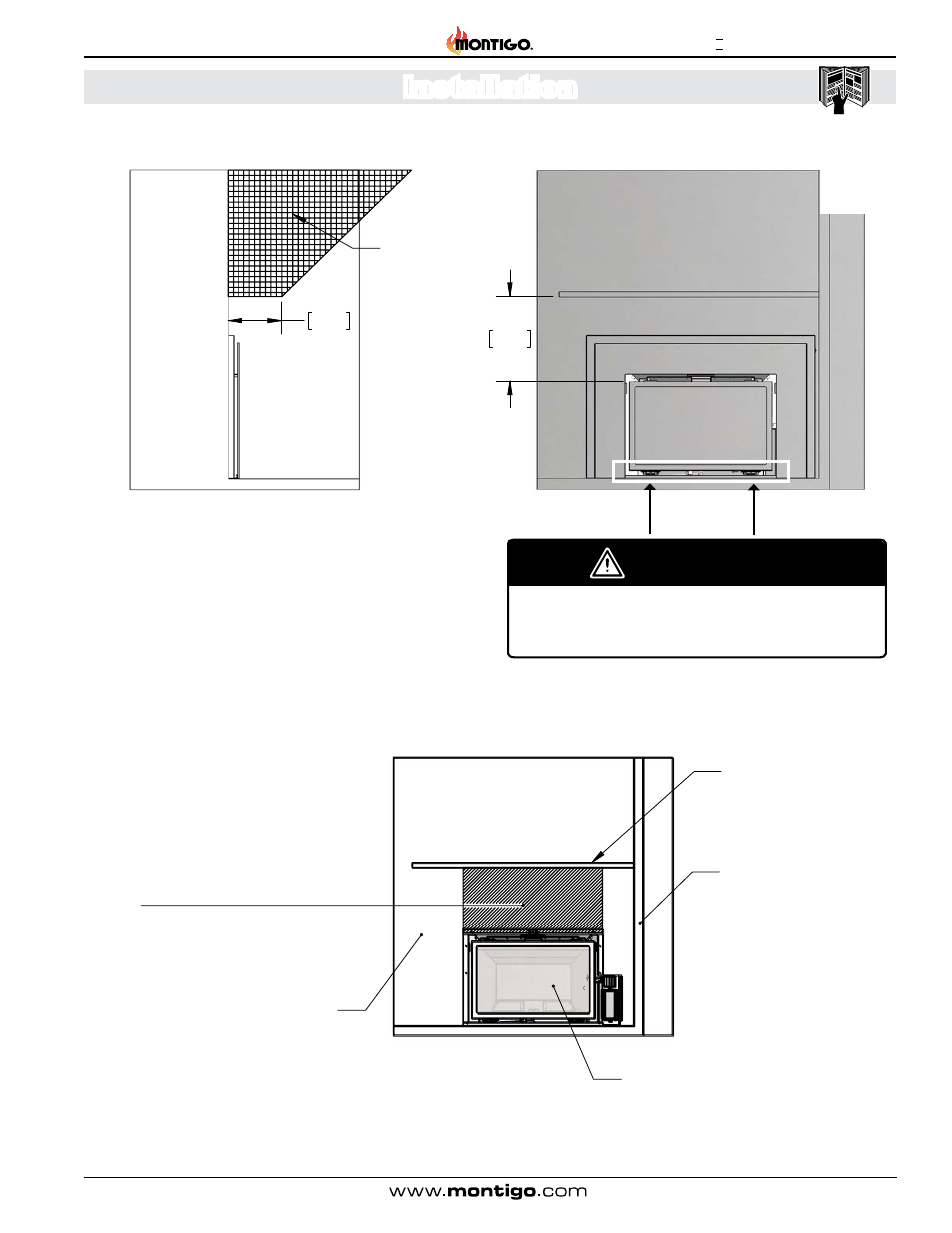

Figure 3 Sec.2 30FID-S Mantel Clearances
Figure 4 Sec.2 Non Combustible Board Install
WARNING
Do not place any materials or objects in front of
door relief. Doing so could result in failure of door
relief system or heat dissipation.
Non Combustible Board Install
