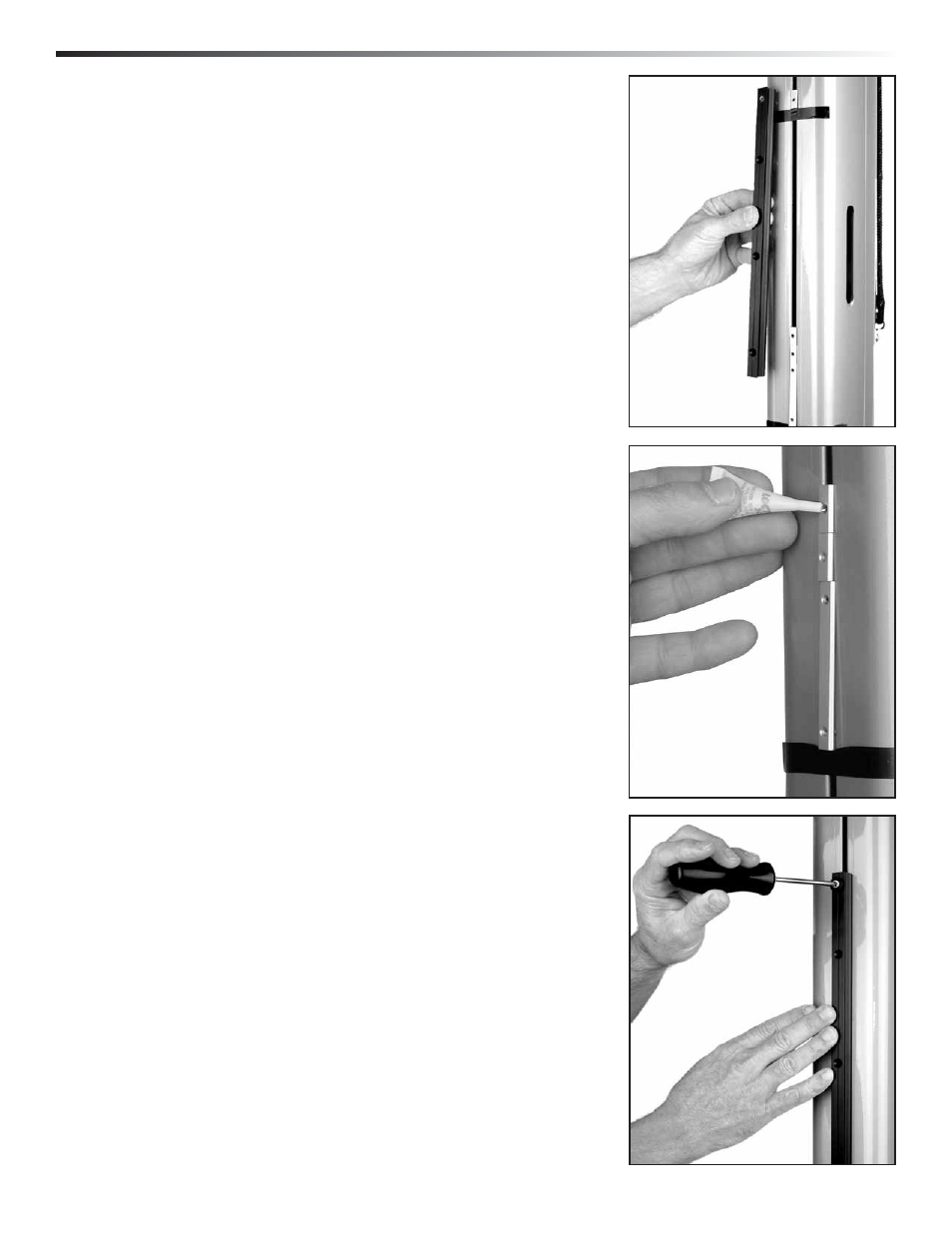

1. Slip top track slugs into mast groove. Use 19 mm (3/4") mounting
slug for top stop.
Note: If top track is 30 mm (1 3/16"), use 67 mm (2 5/8") connector
slug for top stop.
Install 67 mm (2 5/8") connector slug at bottom.
Mast up: Tape 32 mm (1 1/4") slug even with top of upper track.
Tape other slugs in place.
2. Squeeze one drop blue Loctite ® into each connector slug hole.
3. Thread 4 mm x 25 mm endstop screw through endstop, track, and
into endstop slug.
Mast up: Remove tape. Tighten screw to hold track.
Installation – CB System (Slug Mount) Install Track
8 System AA (CB)
Loctite is a trademark of Henkel AG & Company KGaA
