3813
Part No. Description Includes
Mounting slug method
3818, 3819
3820
Track Mounting Kit
(a) 19 x mounting slugs 19 mm (3/4"); (b) 1 x connector slug 67 mm (2 5/8"); (c) 2 x tubes blue Loctite ®
(d) 21 x HFS1009 flathead screws 4 x 20 mm.
3821, 3822
3823
Screwpin Endstop Kit
(a) 1 x 152 mm (6") end track with screwpin stop; (b) 1 x flathead screw HFS948 4 x 25 mm; (c) 1 x topstop;
(d) 2 x HFS1009 flathead screws 4 x 20 mm; (e) 1 x mounting slug 19 mm (3/4"); (f) 1 x tube blue Loctite
®
.
3817 Track Section length: 2.05 m (6'8 7/8"). Number track sections vary according to luff length of mainsail.
Drill & tap method
3837 Screwpin Endstop Kit (a) 1 x 152 mm (6") end track with screwpin stop; (b) 1 x 2711 splice link; (c) 1 x H-28411C endstop (d) 1 x tube blue Loctite ®
2707 Track (Micro CB)
Use for masts without grooves or when slugs will not fit. Purchase stainless steel 4 mm (#8) screws separately.
Do not use 3817 open-backed track. It requires mounting slugs. See page 11 for drill/tap sizes and mounting instructions.
Track and Accessories
Part No. Description Comments
3813 Headboard car
3814 Slider intermediate car If battens are close enough intermediate cars are not needed.
3815 CB intermediate car If battens are close enough intermediate cars are not needed.
3816 Batten car 10 mm Threaded stud. Purchase batten receptacle separately.
Cars
3816
Batten cars without receptacle
3815
3814
Spare car
screw/nut
Track
drill/tap type
9 mm
(3/8")
13 mm
(1/2")
2707

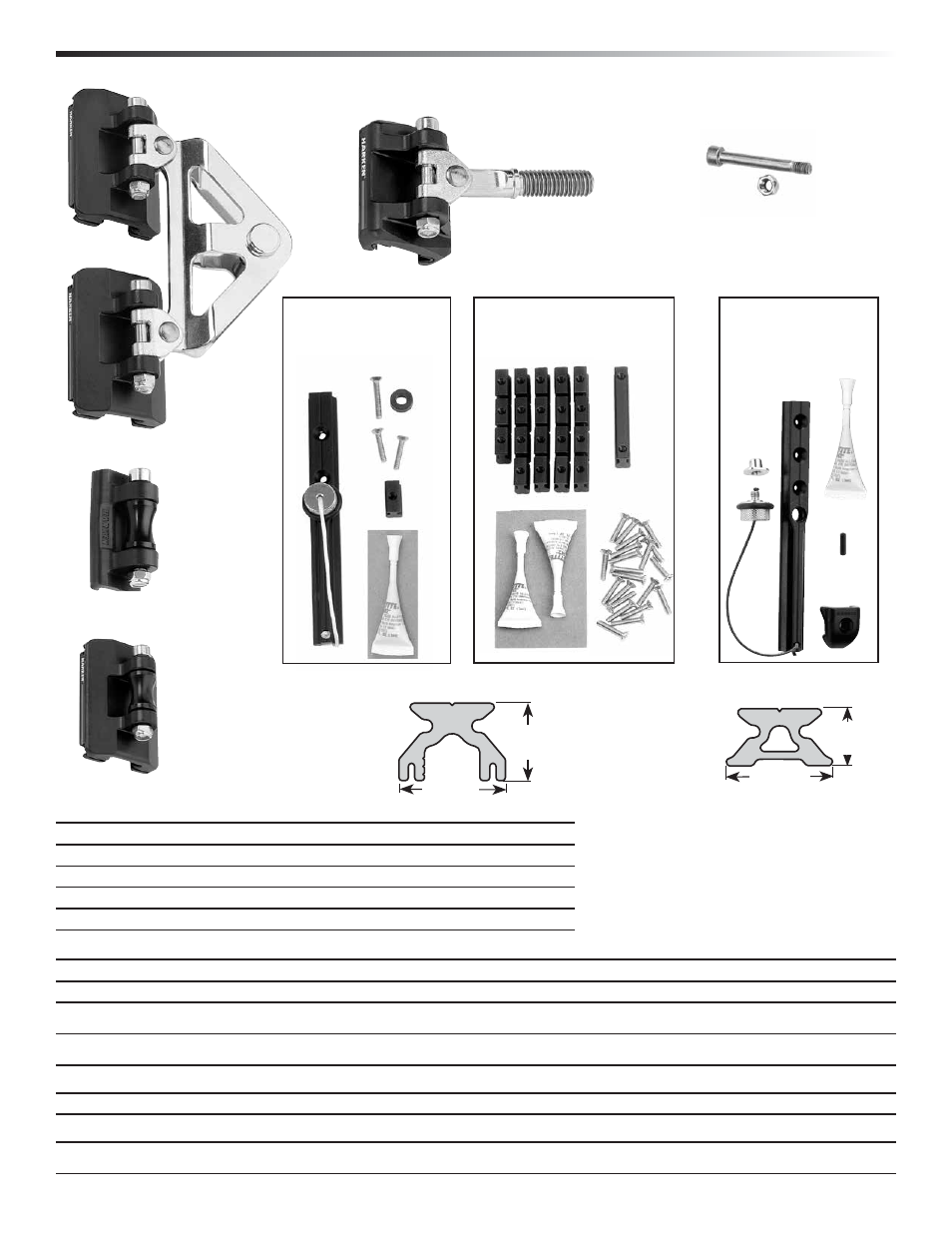

Preassembly – CB System (Slug Mount/Drill & Tap) Parts
System AA (CB) 3
Track mounting kit
3818, 3819, 3820
(mounting slug method)
b
d
a
c
a
b c
d
e
f
Screwpin endstop kit
3821, 3822, 3823
(mounting slug method)
d
a
b
c
Screwpin endstop kit
3837
(drill & tap method)
12 mm
(15/32 " )
13 mm
(1/2")
Track
mounting slug type
Loctite is a trademark of Henkel AG & Company KGaA
