Harken 3813 System AA Battcar - Manual (Page 13)

System AA (CB) 13
IMPORTANT! Keep balls captive by loading cars onto track without sail installed. Car must have 20 balls per side.
Consult chart for correct type of balls.
DO NOT MIX CARS. High-load brown Torlon ® balls are used in headboard and batten cars. Luff cars use low-load black Delrin ® balls.
2. Load Intermediate car (if used). Alternate with batten cars until all cars are loaded.
Mast up: Use halyard to hold cars up.

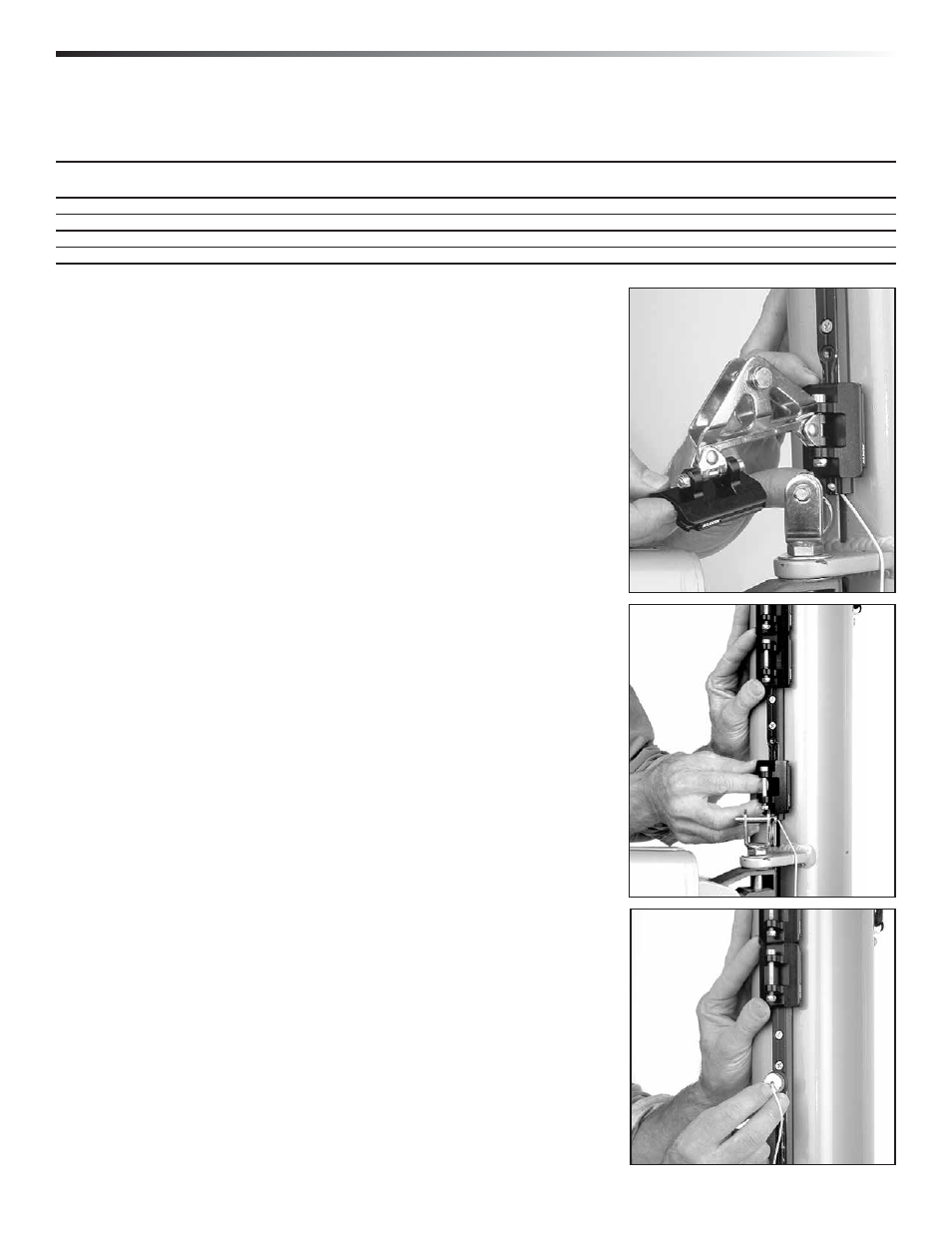

1. Headboard cars: Hold car so cap screw head faces up. Align car on guide section of
loader track and gently roll onto upper tracks. If car sticks, realign and roll onto track.
Tip: To load headboard car assembly, angle headboard coupler, roll car onto track.
If necessary, remove headboard assembly.
3. Install Screwpin stop.
Installation – CB System (Slug Mount/Drill & Tap) Load Cars on Track
Part
No. Car Type
Car Length Bearings
Number
per Car
Part
No. Balls/Set
Ball Ø
in mm Color Material in mm
3813 Headboard Cars 5 3/16 132 Brown Torlon ® 40 2708 20 3/16 5
3814 Slider Intermediate Car 1 3/4 44 — — — — — — —
3815 CB Intermediate Car 2 3/16 56 Black Delrin ® 40 HSB240 1 3/16 5
3816 Batten Car w/Threaded Stud 2 3/16 56 Brown Torlon ® 40 2708 20 3/16 5
Torlon is a registered trademark of Solvay Advanced Polymers.
Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
