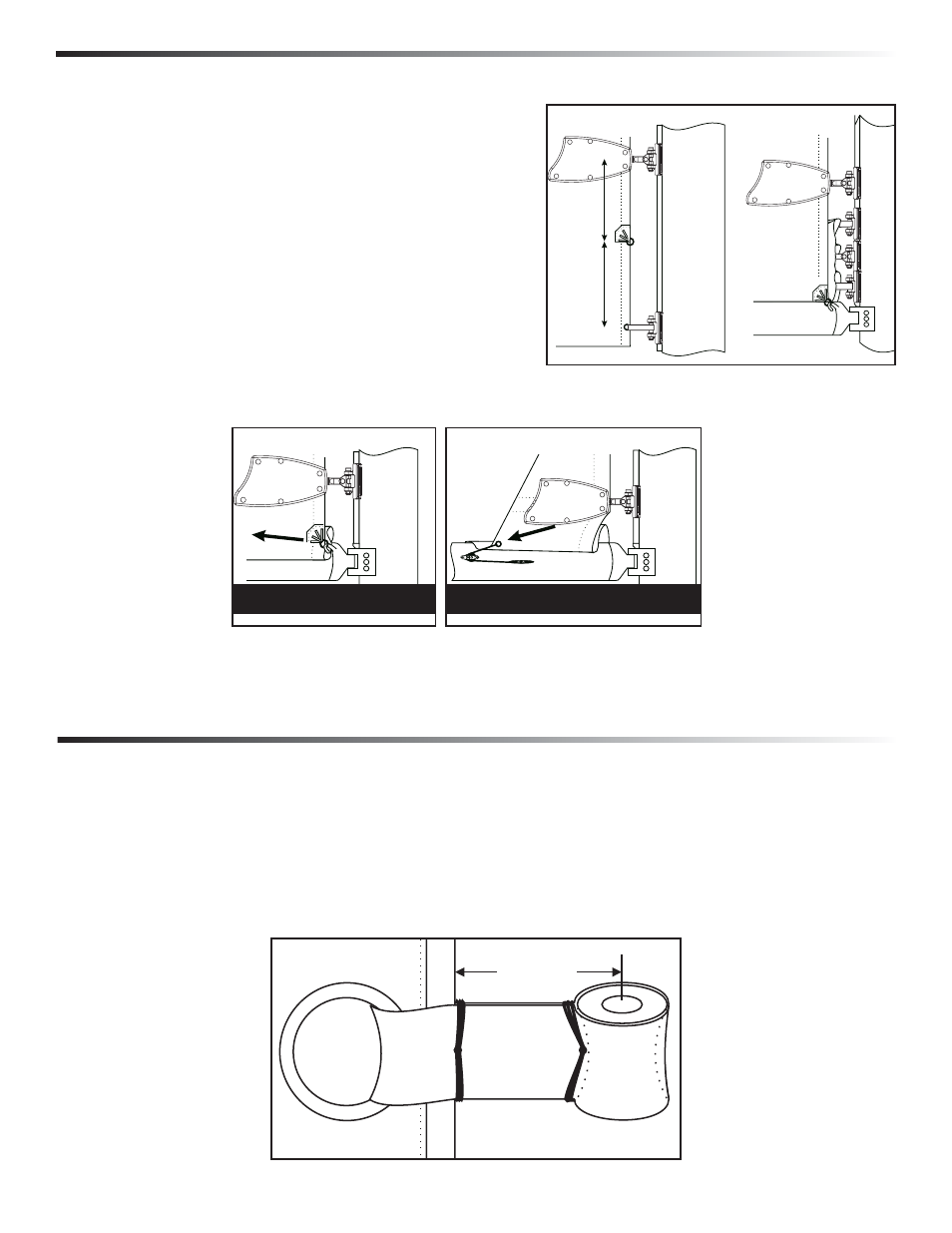

Distance Between Attachment Points
Battens and intermediate cars placed at sailmaker's discretion.
Maximum distance between attachment points is 1.2 m to
1.35 m (4' to 4'6").
Distance may be slightly greater. Contact Harken to discuss
sail reshaping to eliminate luff flutter.
Note: Adding battens may reduce stack height by eliminating
luff cars.
Setting Reef Points
Space reef points halfway between sail attachment points.
Battens or reef points may need to be moved—Diagram A.
Note Batten fittings and cars cannot handle reefing outhaul or
downhaul loads. Transfer loads to tack fitting—Diagram B.
Diagram B
Diagram A
Attach Sail to Intermediate Cars
Sail setback from luff tape to intermediate car clevis pin:
3814 – 20 mm (13/16")
3815 – 20 mm (13/16")
Plastic spacers come with 3814 and 3815 intermediate cars. Seize spacer to webbing by stitching just behind plastic spacer.
Seize webbing to sail by stitching up against sail.
See Above
Sailmaker's Instructions – CB System (Slug Mount/Drill & Tap) Attachment Points/Reef Points
18 System AA (CB)
INCORRECT CORRECT
Sailmaker's Instructions – (CB/Slider Systems) Attaching Sail to Intermediate Cars
