MDE-4624C CFN Series Tokheim® Pump PC Interface for CFN III with Windows NT® or XPE · January 2011
Page 9
Hardware Connections
Configuration
The Tokheim 98 Interface Box can support up to 8 dispensers. To connect the PC COMM port
to Tokheim dispensers through two Tokheim 98 Interface Boxes, use the C05577 CFN to Two
Tokheim 98 D-Boxes Cable Assembly. The C05577 CFN to Two Tokheim 98 D-Boxes Cable
Assembly includes the following:
Item
Description
Part Number
Quantity
1
Connector, 25-pos D-type Male S
C02045
1
2
Connector, Cover 25-pos “D” pl
C02149
1
3
Connector, 16-pos cir fem #2060
C08971
2
4
Connector, Cable Clamp #206
C04484
2
5
Connector, Contact Pin (24-20) 66
C08972
12
6
Cable, 4-cond 20 AWG str u
C02332
24
7
Assembly, RS232/2-Tokheim
C05851
1
8
Cable, CFN to Tokheim
M07493A001
1

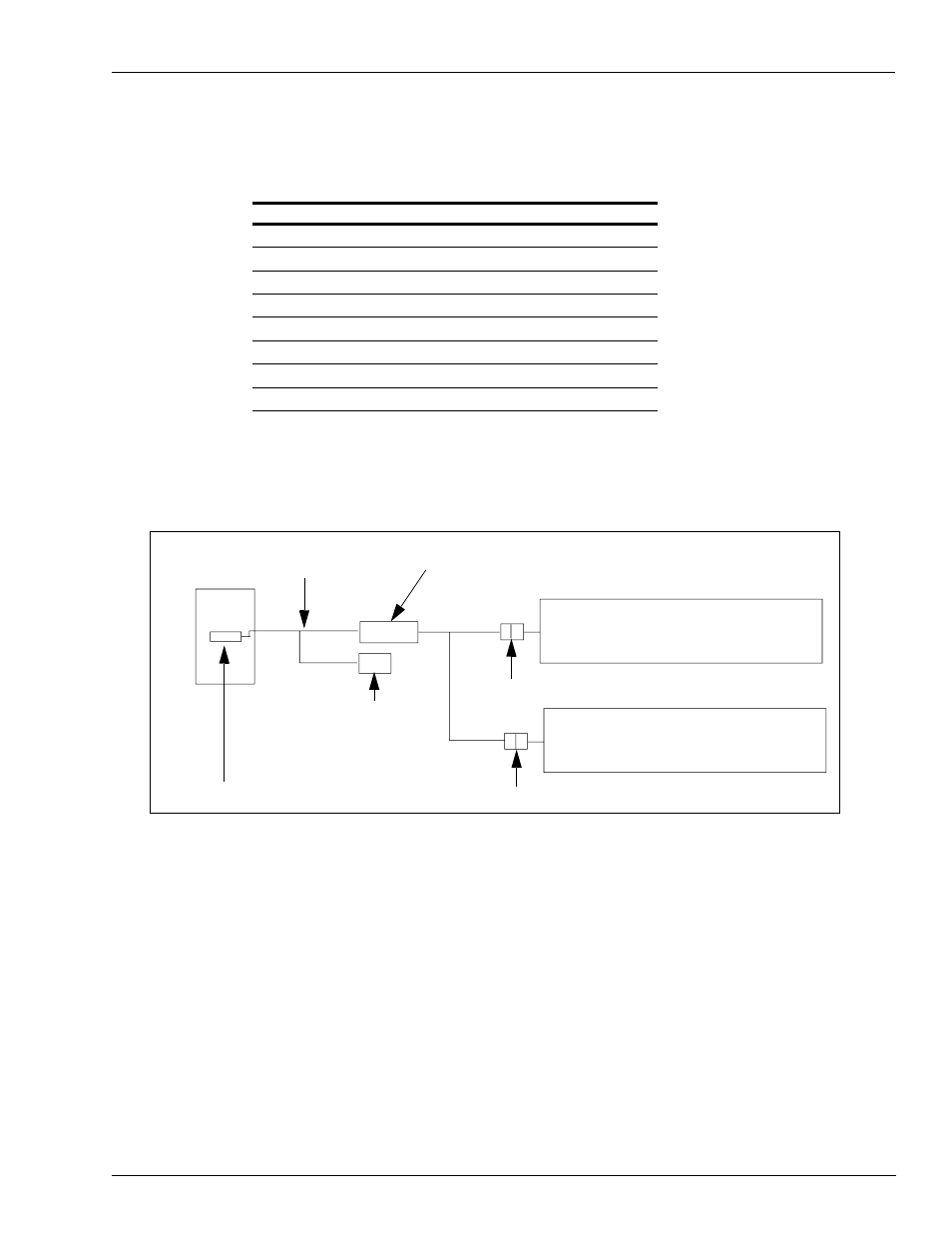

An overview of the wiring illustration and connections are shown in
Figure 3-2: Double Tokheim 98 Interface Box Wiring
M07493A001 Cable
PC COMM Port (9-pin)
Power Supply
Signal Converter
(C05851)
Barrel Connector
Barrel Connector
Tokheim 98 Interface Box
Pumps 1-8
Tokheim 98 Interface Box
Pumps 9-16
CFN 3
