FSR PATHFINDER Covers 12X8 THROUGH 32X32 User Manual
Page 58
58
Pathfi nder Matrix

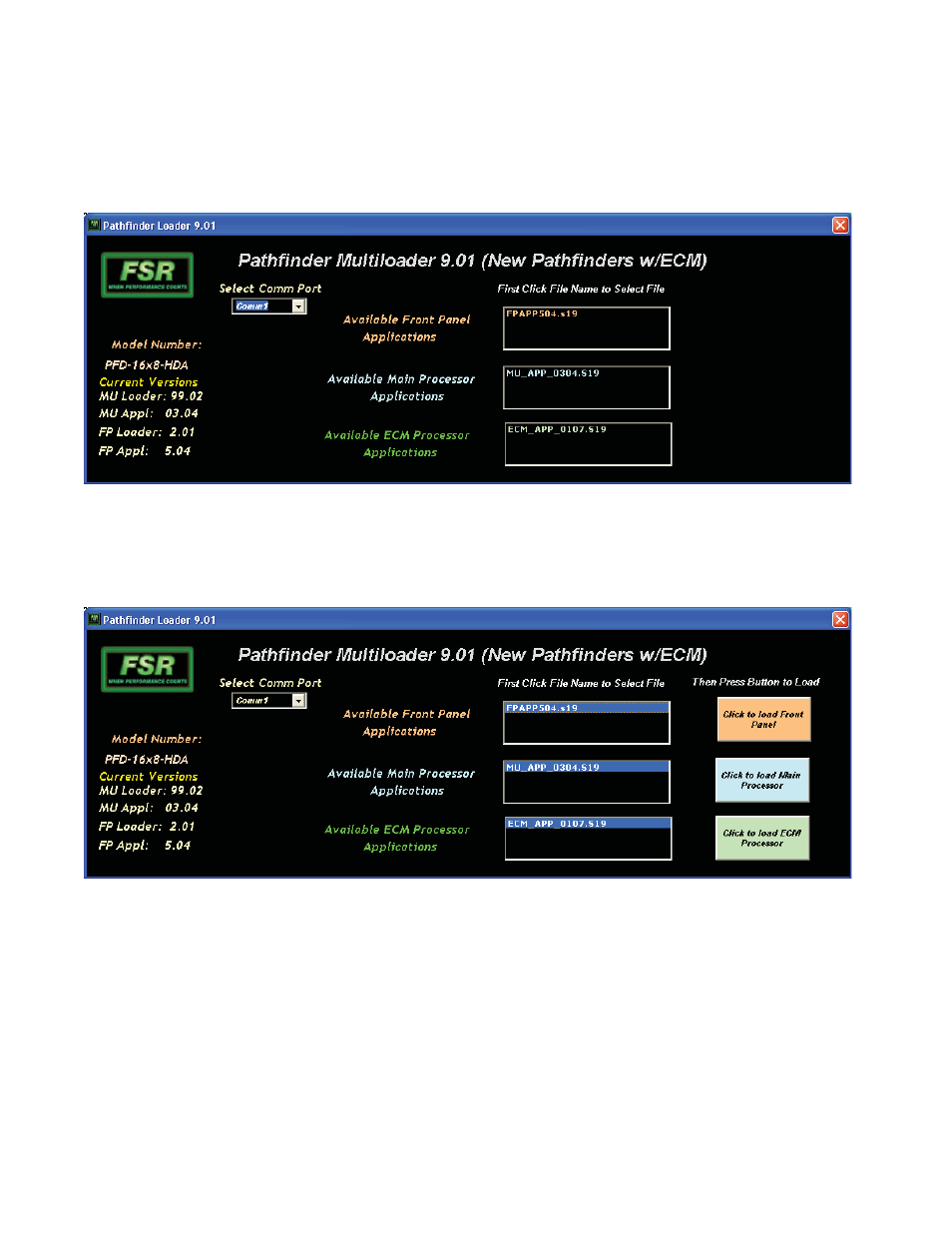

When the loader application locates a good Comm Port, the following screen will appear. It will
indicate the current versions of Pathfi nder Matrix fi rmware and the allow selection of the latest
versions available. Select the most recent version of the Front Panel application and click on the "
Click to load Front Panel" button to update the Front Panel Application
Click on a fi le to select it. The load button(s) will appear and the fi le name will be highlighted as
shown below. In this example all three fi les were selected for illustration purposes.
