32 Pathfi nder Matrix
PRESET SETUP MENU PAGE
All Pathfi nder Matrix models are capable of storing up to 32 presets. A stored preset is a saved
"snapshot" of a particular input output scenario that can be recalled at a later time. When the user
is in either preset select or preset setup mode, the input and output select buttons become preset
number select buttons. Preset numbers are selected from the front panel either by pressing an input
or output select button, or using the UP and DOWN buttons and SELECT to choose a preset number
not represented by an input or output button.
NOTE: If the matrix is a 12 X 8 matrix, only presets 1 to 20 can be accessed using an input or
output button. Presets 21 to 32 will need to be accessed using the UP, DOWN and
SELECT buttons. Preset numbers accessed by the input and output buttons are determined
by the button they are associated with. For example; on a 12 X 8 matrix, output button 3
would represent preset 15, output button 8 would be preset 20.
Presets are set up and stored by entering the PRESET SETUP menu. A preset can be stored in two
ways; saving the current output matrix settings to a preset, or defi ning a preset based on selected
outputs.
To defi ne a preset:
Defi ne a new route or select a pre defi ned route by pressing an output button.

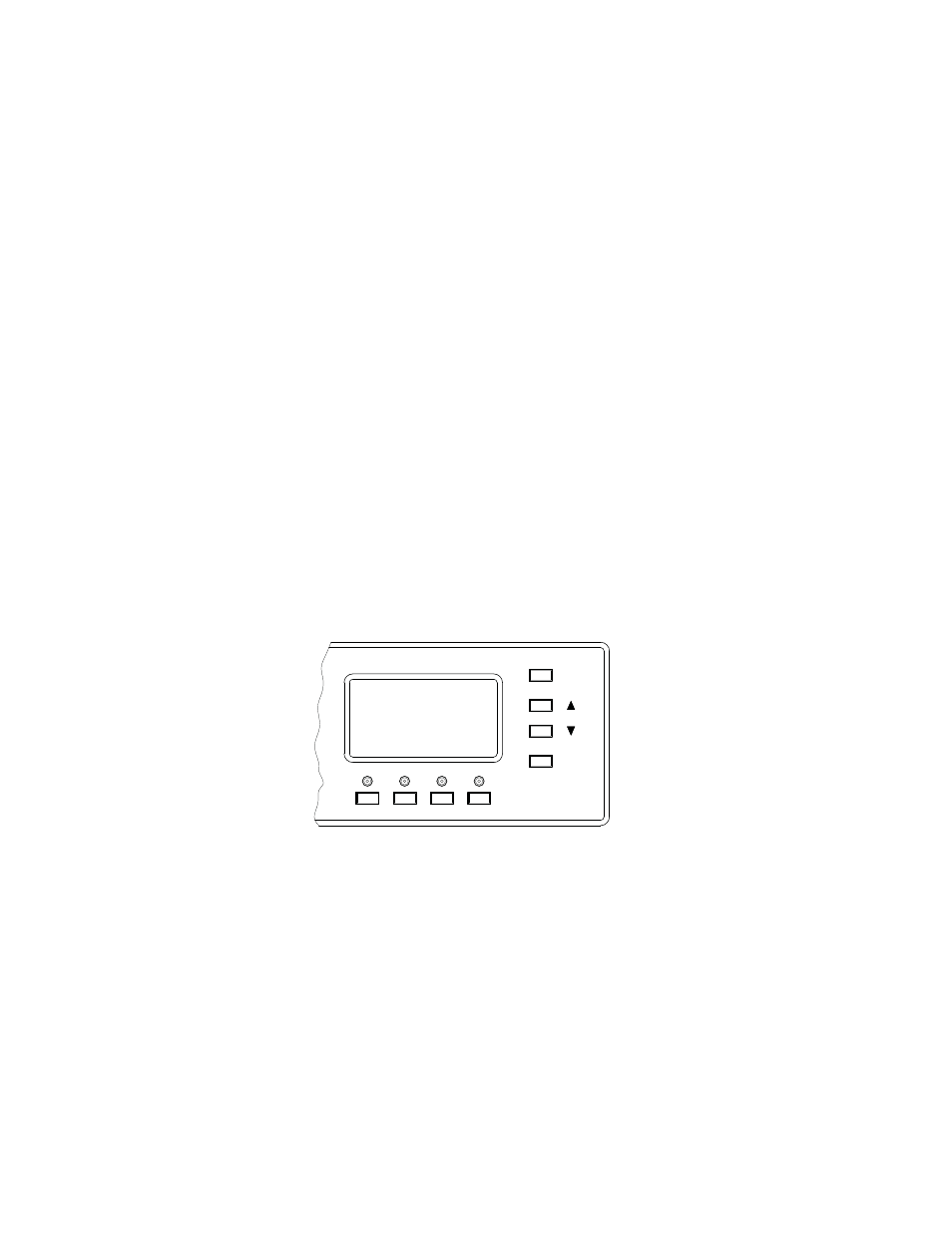

Enter the preset setup menu. The main screen for the preset setup will look like this:
ESCAPE
SELECT
PRESET SETUP
PRESET NUMBER
SAVE ALL OUTPUTS
SAVE SELECTED
>
Select "Preset Number" and press select
Using the UP and DOWN arrow buttons and SELECT to choose a preset number.
To save the current route as a preset:
Scroll down to SAVE ALL OUTPUTS and press SELECT. This will save the last
route and associated settings.
Press ESCAPE to return to the PRESET SETUP menu.
