1394 port (optional)
This digital interface supports electronic devices such as digital cameras,
scanners, and printers.
RJ45 10M/100M/1G LAN Port (optional)
If you have purchased the built-in LAN function, the port will be located on
the rear panel.

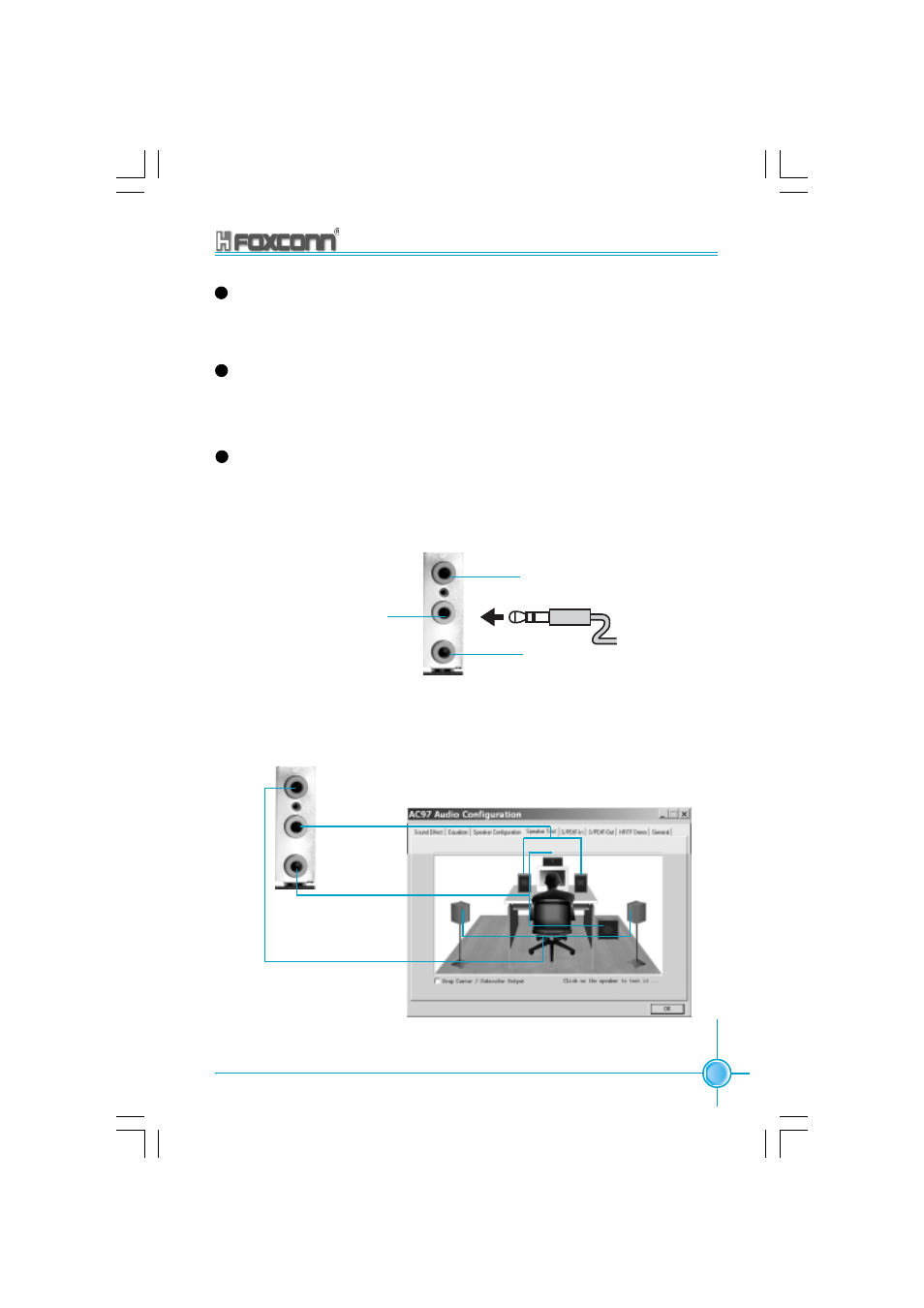

Audio Port
When using a two-channel sound source, the Line-out jack is used to con-
nect to speakers or headphones; the Line-in port connects to an external
CD player, tape player or other audio device. The MIC is used to connect to
the microphone.
When using a 6-channel sound source, connect the front speaker to the
green audio output; connect the surround sound speaker to the blue audio
input; connect the central speaker/sub woofer to the red MIC input, as being
shown in the following figure:
Front Left
Rear Left
Subwoofer
Center
Blue
Green
Red
Front Right
Rear Right
7
Line Out
Line In
Microphone
