Chapter 5 Ports and Connectors
Chapter 5

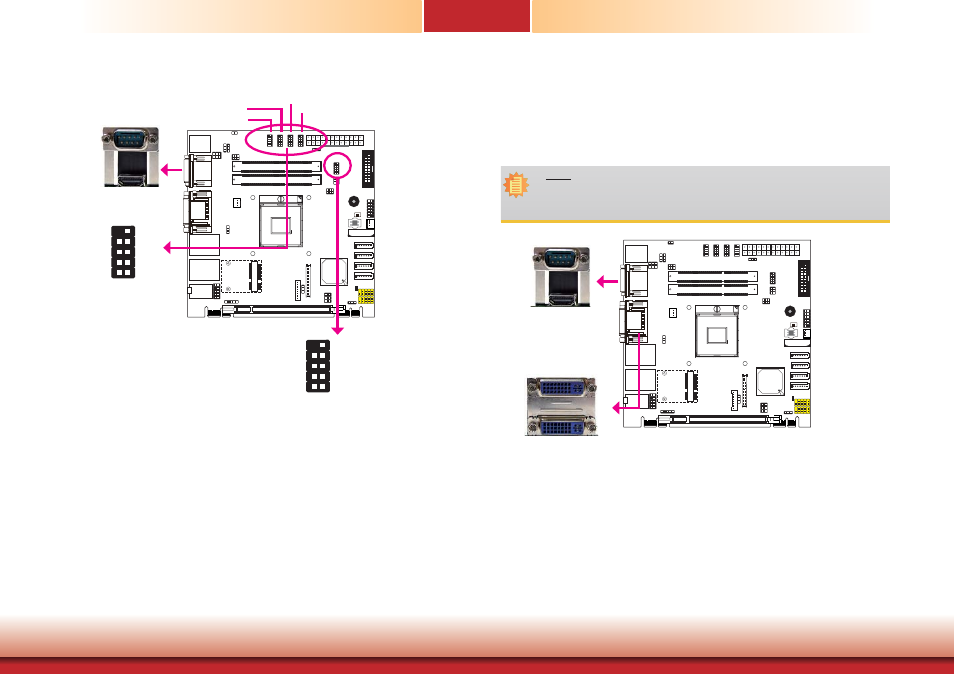

COM (Serial) Ports
COM 1
COM 3 to COM 6 are fixed at RS232.
The pin function of COM 1 and COM 2 ports will vary according to JP4/JP5’s setting. Refer to
“COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that
can be used with modems, serial printers, remote display terminals, and other serial devices.
Connecting External Serial Ports
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to
an available slot at the rear of the system chassis then insert the serial port cable to the COM
connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM
connector.
BIOS Setting
Configure the serial ports in the Advanced menu (“Super IO Configuration” submenu) of the
BIOS. Refer to chapter 7 for more information.
COM 4
COM 3 COM 5
COM 6
COM 1:
RS232/422/485
COM 3 to COM 6:
RS232
1 2
9
DCD-
TD
GND
RTS-
RI-
RD
DTR-
DSR-
CTS-
COM 2
HDMI
Graphics Interface
1 2
9
DCD-
TD
GND
RTS-
RI-
RD
DTR-
DSR-
CTS-
COM 2:
RS232/422/485
DVI-I
(DVI-D signal only)
DVI-I
The display ports consist of the following:
• HDMI
• LVDS
• DVI-I port
• DVI-I port (DVI-D signal only)
HDMI Port
The HDMI port which carries both digital audio and video signals is used to connect a LCD
monitor or digital TV that has the HDMI port.
Note:
The 3rd Gen Intel Core processors support 3 independent displays. If you are
connecting 3 display devices, make sure 2 of the devices are connected to the
HDMI and DVI (-D signal) interfaces .
