Addendum RCS10 Modem and Redundancy Control System
TM058 - Rev. 2.3 v
Addendum
3.4.1 Description
(Paragraph 3) Delete the following sentence:
Modems not part of a backup pool will not be learned.
3.4.6 Configuration Copy
The Configuration Copy is a feature that enables a user to store/retrieve up to five modem and interface card
configurations in non-volatile memory. These are in addition to the current running configuration.
The interface card configurations are tagged to the slot, and are stored in the switch. The modems, on the
other hand hold their own settings. The user can copy from and copy to any configuration in memory
including the current running configuration. Source and destination configurations must be different.
When instructed to copy a configuration, the switch sends a command to the modem to copy the
configuration, and if successful, the switch updates the slot configurations as well. If the destination
configuration is the current configuration, the modem re-initializes itself and uses the new settings. The
switch interface card is only updated when the destination configuration is the current configuration.
A user must be careful not to copy onto the current configuration unless that is desired, interruptions in traffic
will occur.

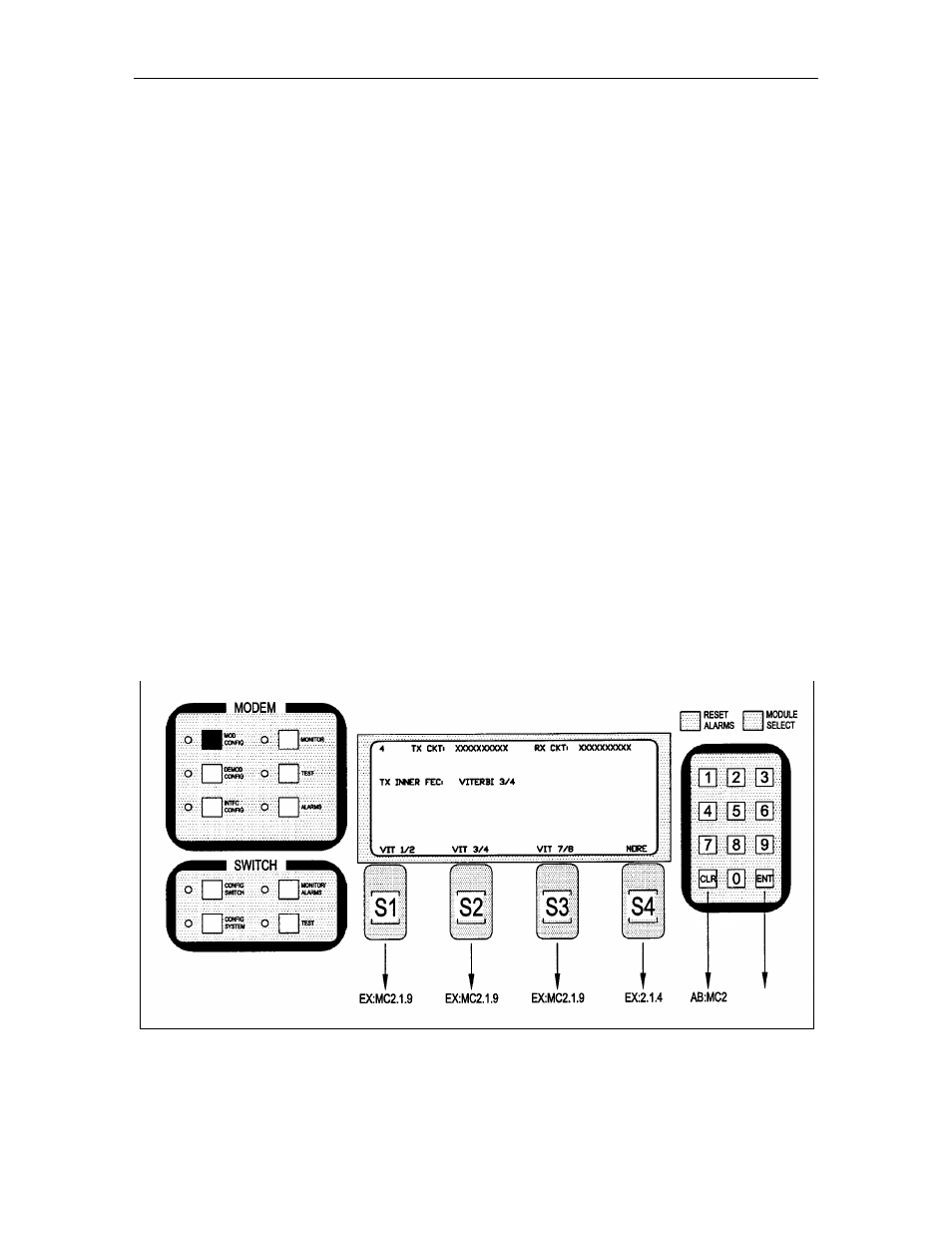

3.9.1 Function Keys
MC2.1 - Modified as follows:
Note: Inner FEC – Select VIT 1/2, VIT 3/4, VIT 7/8, SEQ 1/2, SEQ 3/4, SEQ 7/8, CSC 3/4, NONE,
TPC.793, TPC.495, TPC.325
