GENERAL OPERATION >>>
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK

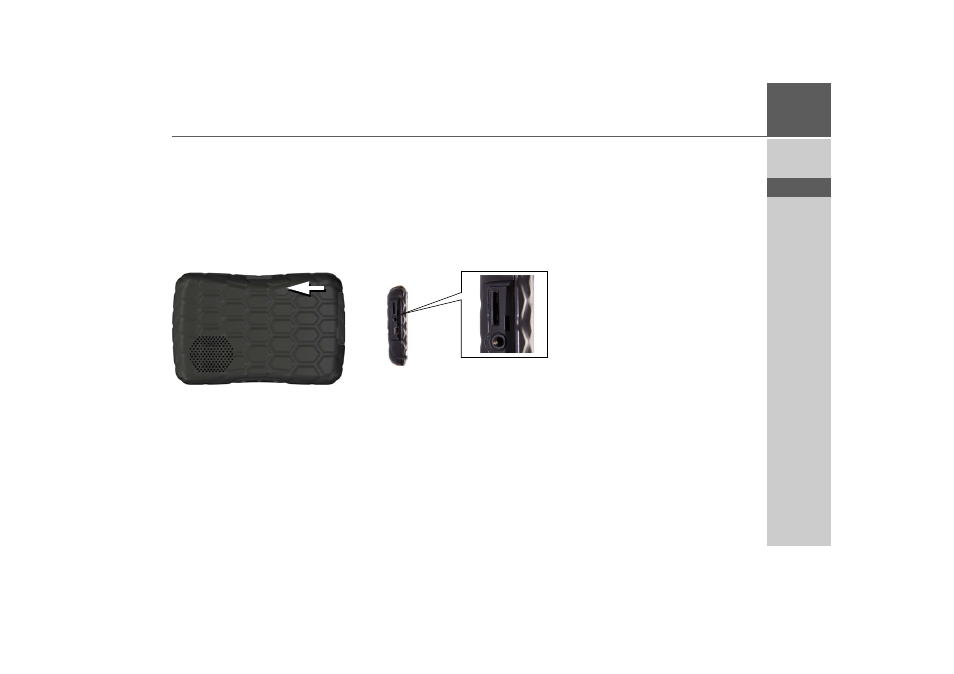

Connecting up external
antenna
To enable reception under adverse recep-
tion conditions, an external GPS antenna
can be connected (not included). For this
purpose, a closable connecting socket is
located on the rear of the housing. If no
external antenna is connected, this con-
nection must always be closed again.
> Open the closure by pulling gently on
its upper surface.
> Connect the external antenna using the
optionally available adapter.
Memory card
Your Traffic Assist has a slot for a Micro
SD memory card.
As the card data is stored on an internal
memory in the Traffic Assist, the slot for a
Micro SD memory card is only used for
updates and for playing music, looking at
images or watching videos.
The card slot is located on the left side of
the unit under a cover. The card slot is
equipped with a spring-actuated locking
and ejector mechanism.
Inserting memory card
> Remove the memory card from its
packaging without touching or soiling
the contact bar.
> Hold the memory card so that the con-
tact bar faces towards the front of the
unit.
> Guide the memory card into the card
slot.
> Exert a little pressure and slide the
memory card into the card slot until it
snaps in.
Ejecting memory card
The card slot ejects the card so that you
can pull it out with two fingers.
> Use your finger to gently press the
memory card against the spring force
into the card slot and then release it.
The card is ejected.
> Remove the memory card and place it
in the packaging while ensuring not to
touch contact bar.
