Line Width
The following tables show the horizontal and vertical line
widths. On the 9425/9445/9474 and 9420/9440 printers, the
line widths are the same for horizontal and vertical lines. On
the 9465, horizontal and vertical line widths are different.

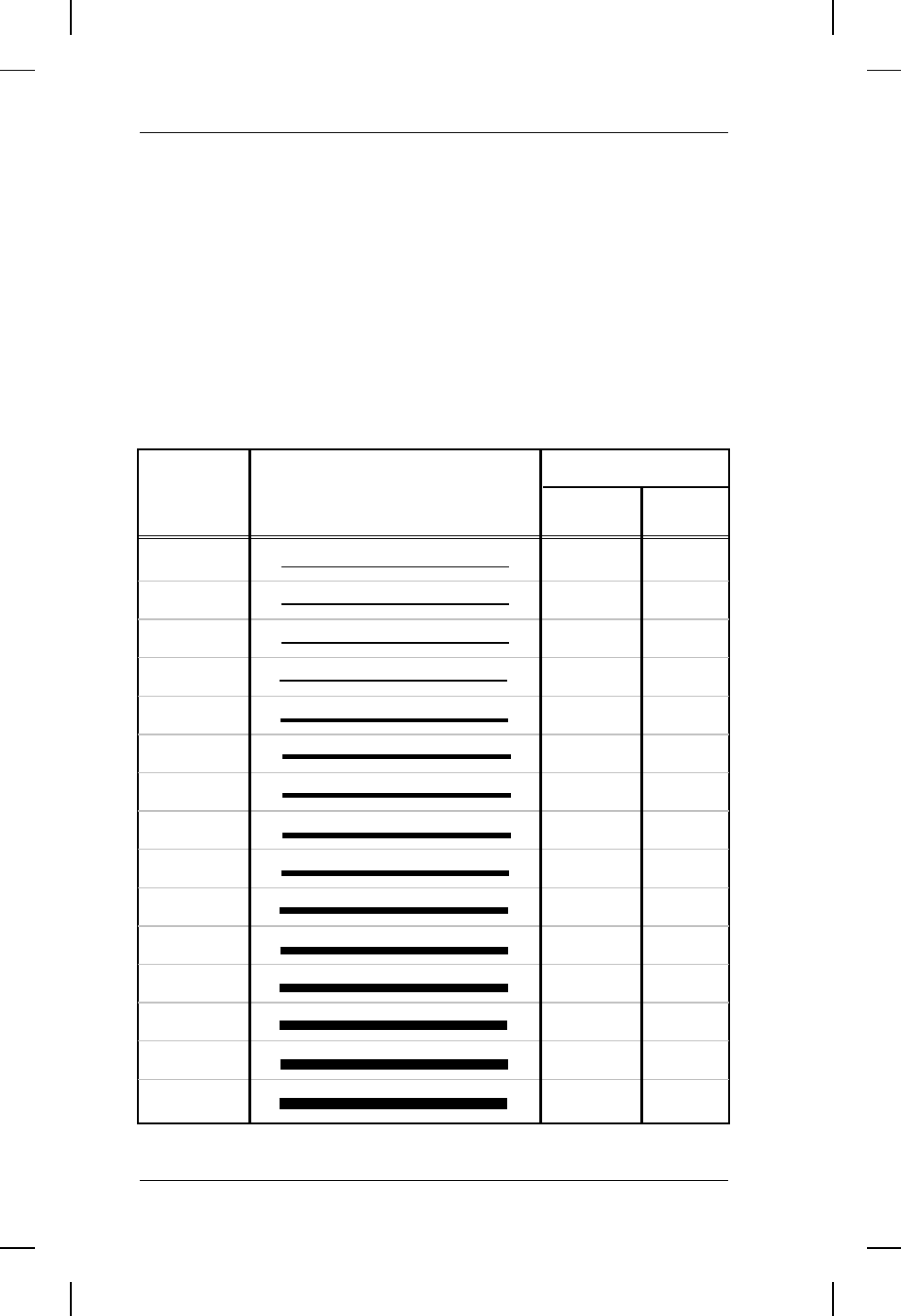

Line Widths (9425/9445/9474 and 9420/9440)
The following table shows the horizontal and vertical line
widths for the 9425/9445/9474 and 9420/9440 printers.
Line Width
Line
Number Appearance Inches MM
1 .005 .13
2 .010 .26
3 .015 .40
4 .021 .53
5 .026 .66
6 .031 .79
7 .036 .92
8 .042 1.06
9 .046 1.16
10 .052 1.32
11 .057 1.44
12 .062 1.57
13 .067 1.70
14 .072 1.82
15 .078 1.98
