B.3 card reset architecture, Figure b-4, Card reset diagram – Artesyn PCIE-8120 Installation and Use (July 2014) User Manual

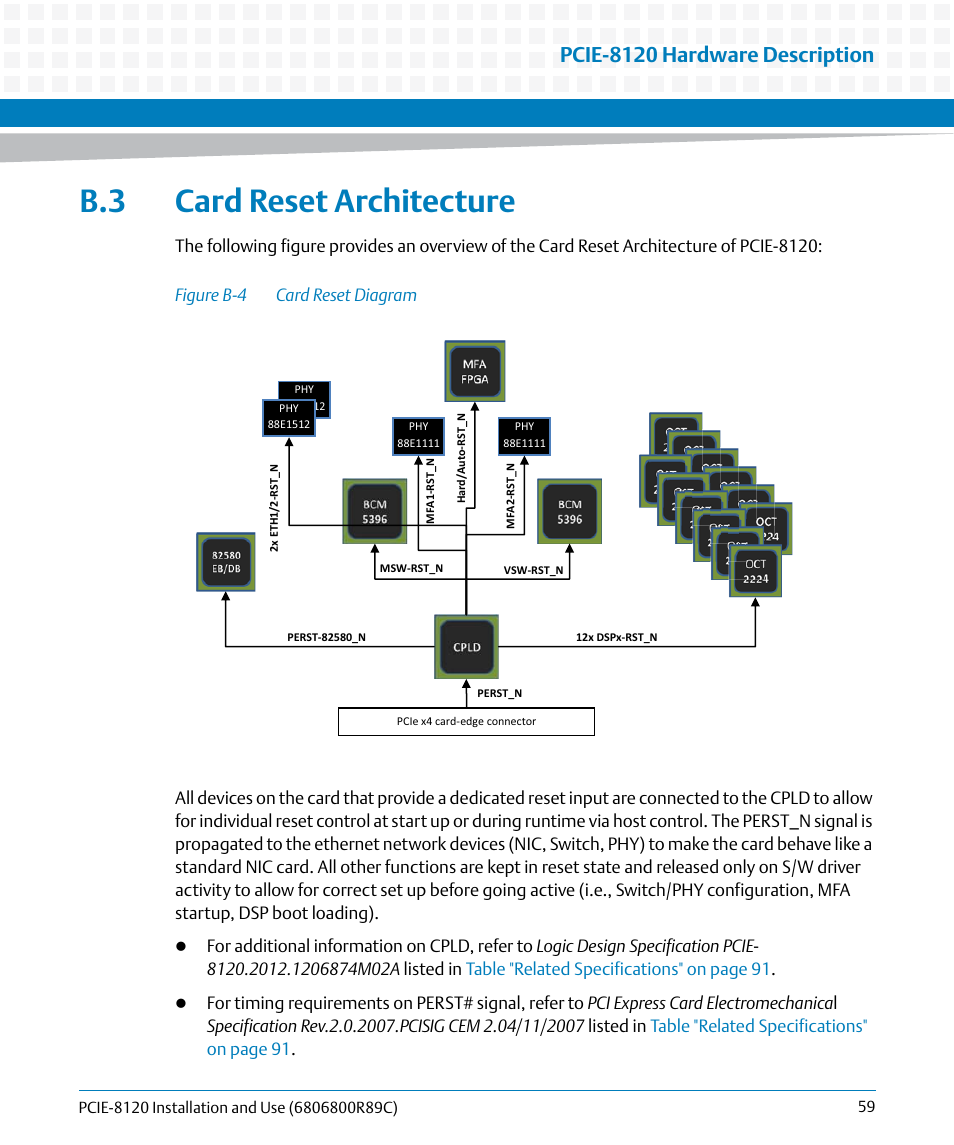

Page 59: Card reset architecture, Pcie-8120 hardware description
