Configuration Sorensen SF Series
ADDRESS SWITCHES
Switch Position Description
ON 1
OFF 0
2.3 Remote Programming Via RS-232
The DIA’s RS-232 interface operates at fixed 19.2Kbaud for SFA and is selectable from 2400 to
19.2Kbaud for the SFI, with 8 data bits, no parity, and 1 stop bit. All DIA commands are
supported at the RS-232 interface with the exception of the Service Request (SRQ) function
which is a GPIB-specific function requiring the dedicated Service Request line of the IEEE-
488.2 interface. In this case, the SRQ function has no effect. The RS-232 interface is
accessible through the rear panel 6-pin RJ-11 connector. The connector is labeled RS232.

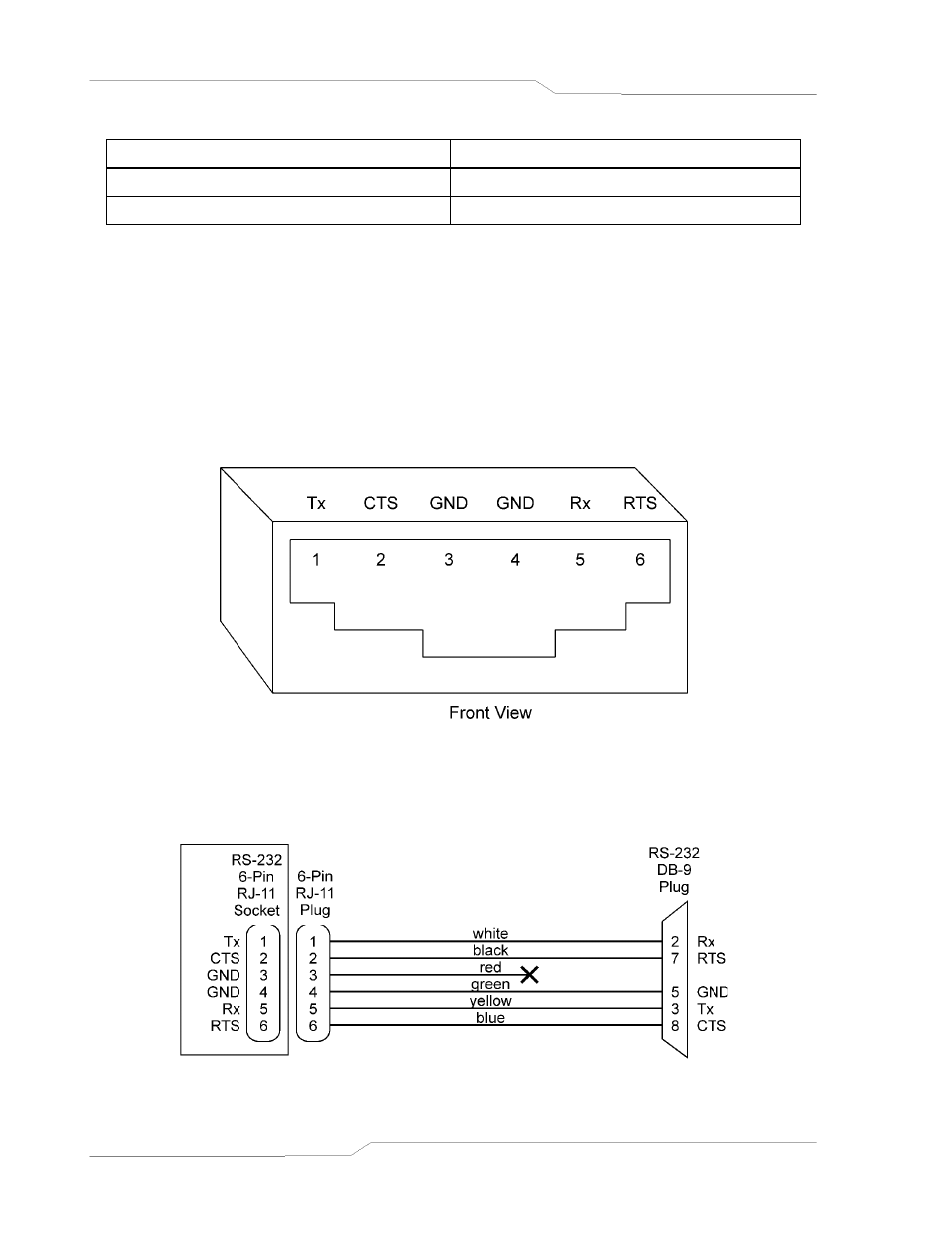

Figure 2–2. RS-232 Rear Panel RJ-11 Connector Pinout
Rear Panel To PC
Figure 2–3. SF to PC RS-232 Connection (RJ-11 to DB-9)
