Page 56
KBF LQC (E5.3) 07/2014
page 56/114

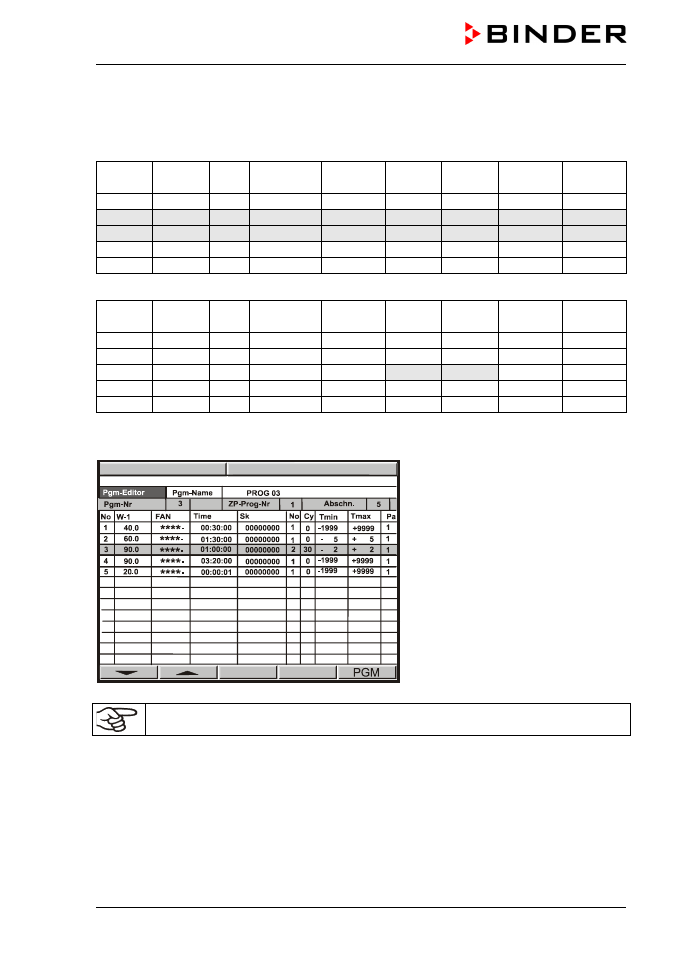

10.7 Repetition of a section or several sections within a program
The example of a set-point ramp temperature program of chap. 10.5 will serve as an example. The shad-
ed sections 02 and 03 shall be repeated e.g. 30 times.
Program
section
Set-point
temp.
Fan Section time Operation
lines
Target
section
No. of
cycles
Min.
tolerance
Max.
tolerance
01
40
100 % 00:30:00
Off
1
0
-1999
+9999
02
60
100 % 01:30:00
Off
1
0
-5
+5
03
90
100 % 01:00:00
Off
1
0
-2
+2
04
90
100 % 03:20:00
Off
1
0
-1999
+9999
05
20
100 % 00:00:01
Off
1
0
-1999
+9999
The following table shows the resulting program, whereby the differences to the table above are shaded.
Program
section
Set-point
temp.
Fan Section time Operation
lines
Target
section
No. of
cycles
Min.
tolerance
Max.
tolerance
01
40
100 % 00:30:00
Off
1
0
-1999
+9999
02
60
100 % 01:30:00
Off
1
0
-5
+5
03
90
100 % 01:00:00
Off
2
30
-2
+2
04
90
100 % 03:20:00
Off
1
0
-1999
+9999
05
20
100 % 00:00:01
Off
1
0
-1999
+9999
Sections 02 and 03 will be executed in total 31 times; only then, the program will continue.
Entry of the values into the display program table:
To have sections repeated infinitely, enter the number of cycles “Cy” as -1.
10.8 Performance after power failure in Program Mode
Execution of the program is resumed at the point where the interruption occurred with the latest set-
points reached during program course. The power failure is noted in the event list. No error message is
displayed indicating that a power failure has taken place.
08:43:55 15.12.13
