Commissioning
Operating Manual PNOZ m ES CANopen
1002699­EN­03 17
1
23 4
9
8
7
6
0 5
x10

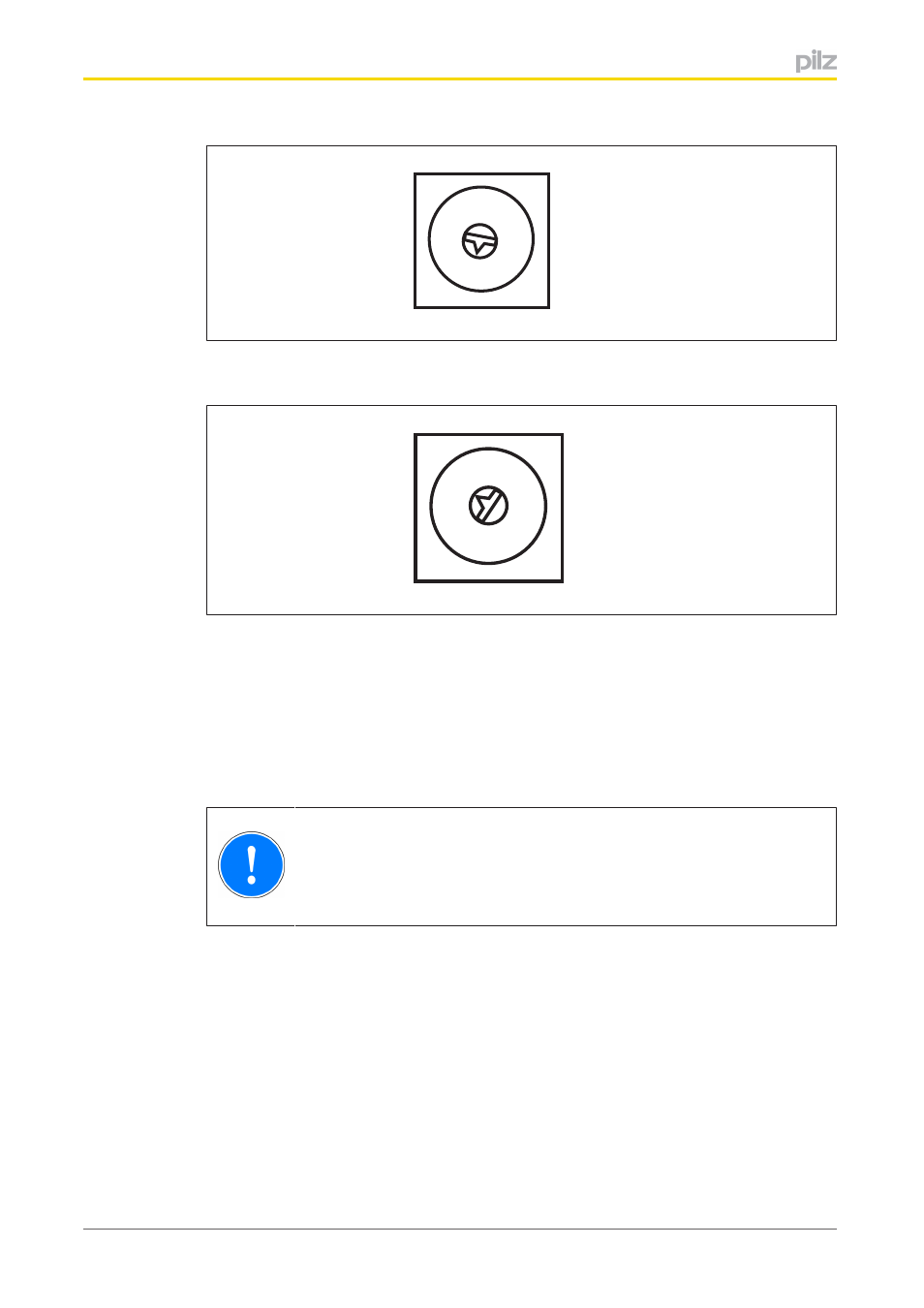

} On the middle rotary switch x10, use a small screwdriver to set the tens digit for the ad­
dress (“3” in the example).
1
23 4
9
8
7
6
0 5
x1
} On the lower rotary switch x1, set the ones digit for the address (“6” in the example).
Station address 36 is set in the diagrams as an example.
6.2.3 Download modified project to the PNOZmulti safety system
As soon as an additional expansion module has been connected to the system, the project
must be amended using the PNOZmulti Configurator. Proceed as described in the operat­
ing instructions for the base unit.
NOTICE
For the commissioning and after every program change, you must check
whether the safety devices are functioning correctly.
