Xblue Networks X-2020 - Manual (Page 100)

Web Programming
100 XBLUE Networks
6
Phonebook
created from the personal phonebook. Another way to create the file is using Windows Notepad. Once created
save it with a name such as “Publicphonebook.csv, and place it in a location that you can easily find.
The format of this file is very important:
Name,Number,Ring,Group,
Anne Sweeney,1924020842,0,family,
Alan Booker,769011,0,Friends,
Bob Smith,12122641501,0,Colleague,
Donald Kilroy,18752250474,0,VIP,

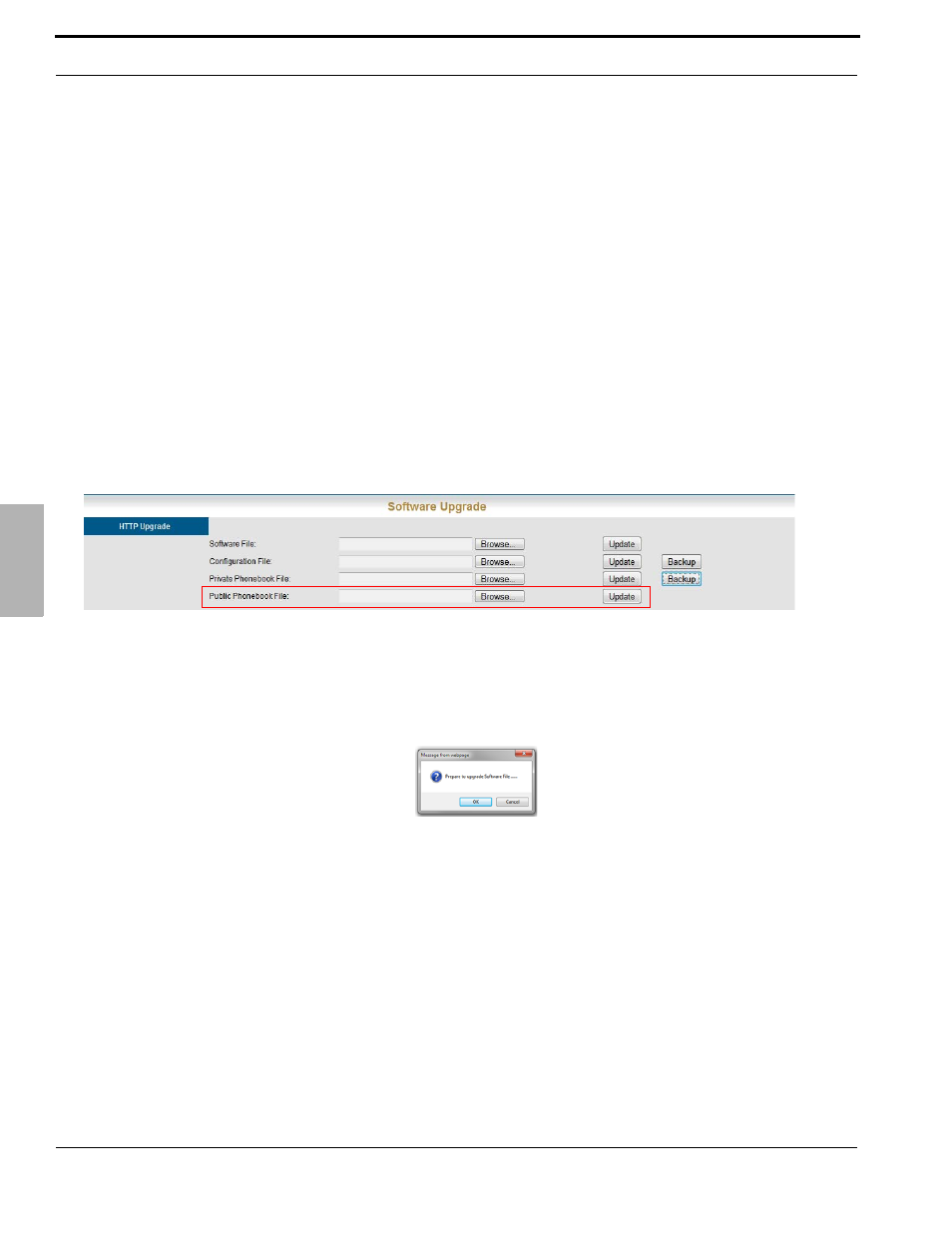

One the file is ready to be uploaded, click on the “SW Upgrade” tab.
•
Locate the “Public Phonebook File:” and click on the Browse... button
•
Locate the saved file
•
Click on the Update button
•
Click on “OK” to complete the upload or “Cancel” to stop the upload.
•
Click on the Phonebook tab, and then the Public Page tab. If the file format is correct, the information
will be visible. If the numbers are not visible recheck the file format.
