14 RAID Controller Configuration
StorCase Technology, Inc. InfoStation 12-bay RAID User's Guide - Rev. C00
RAID CONTROLLER CONFIGURATION
NOTES: The configuration and use of the InfoStation RAID Controller requires a certain
level of expertise and experience on the part of the user/integrator. Since there
are many configuration options and variables (ie. host platforms, applications,
etc.), only general guidelines will be discussed in this User's Guide.
Also refer to the disk manufacturer's documentation for specific information
regarding the disks.
Configuration Overview
The RAID control panel (Figure 8) allows for exploration of all configuration options. However,
the LCD screen can only display limited amounts of information at a time.
To display all information on a larger terminal screen, the RAID Controller can be accessed via
a computer serial port (female DB9-female DB9 cable provided). Refer to section "Monitor
Utility" for further information.
NOTE: The Monitor Utility and the front control panel cannot be used at the same time.
When one is active, the other is disabled.

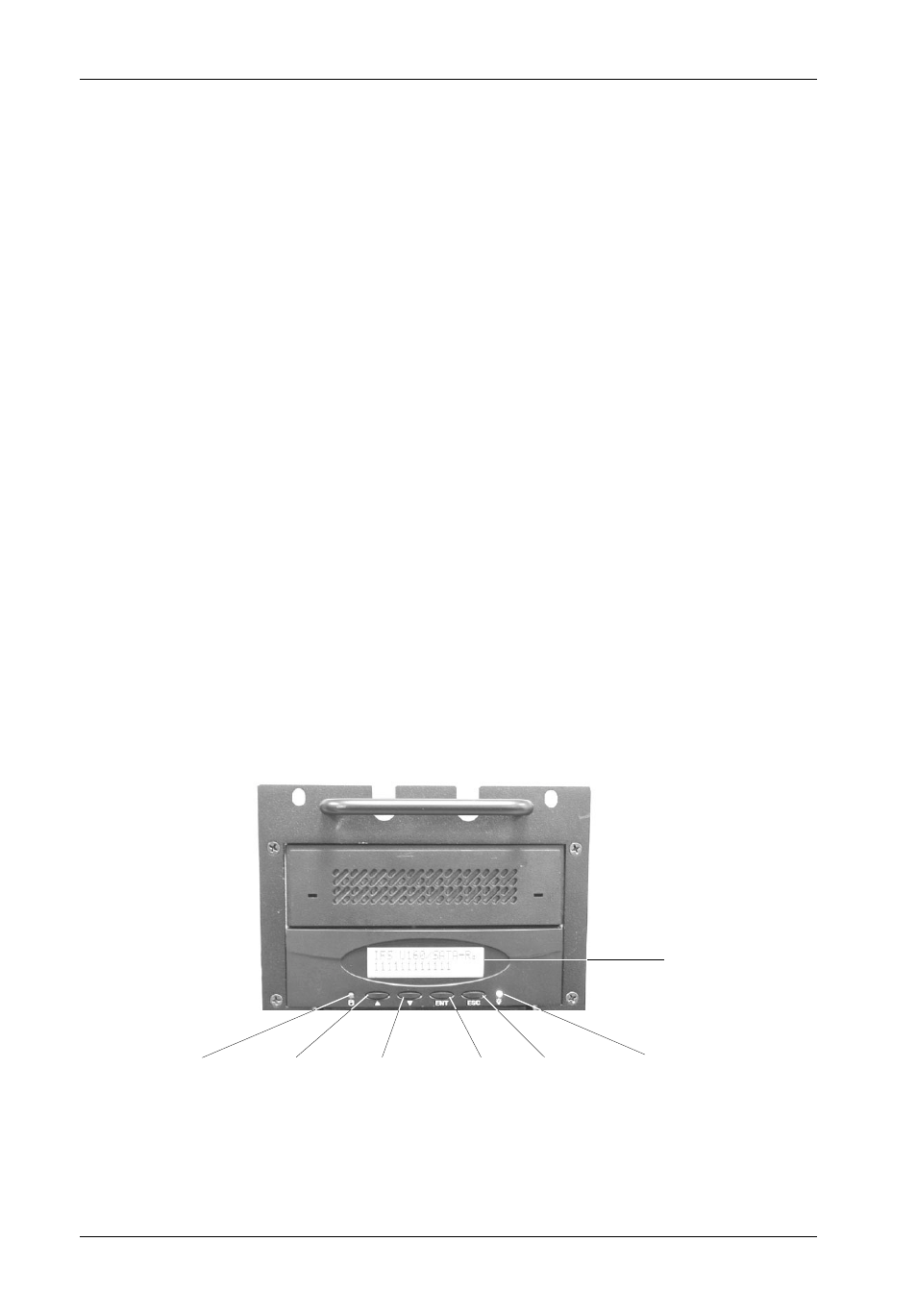

Figure 8: LCD Display and Control Panel
Activity
LED
Scroll UP
Button
Scroll DOWN
Button
Enter
Button
Escape
Button
Power
LED
LCD
Display
