InfoStation 12-Bay RAID User's Guide - Rev. C00 StorCase Technology, Inc.
SCSI Channel and FC Configurations 11
TYPICAL SCSI CHANNEL CONFIGURATION
(For SCSI-to-SATA version only)
CAUTION: VHDCI connectors are easily damaged by improper handling. Visually inspect
each connector for bent contacts and carefully align prior to insertion.
NOTES: The configuration and use of the InfoStation RAID Controller requires a certain
level of expertise and experience on the part of the user/integrator. Since there
are many configuration options and variables (ie. host platforms, applications,
etc.), only general guidelines will be discussed in this User's Guide.
For daisy-chaining applications, total device-to-host cable length should not
exceed 12m (approx. 39ft) per SCSI specifications.

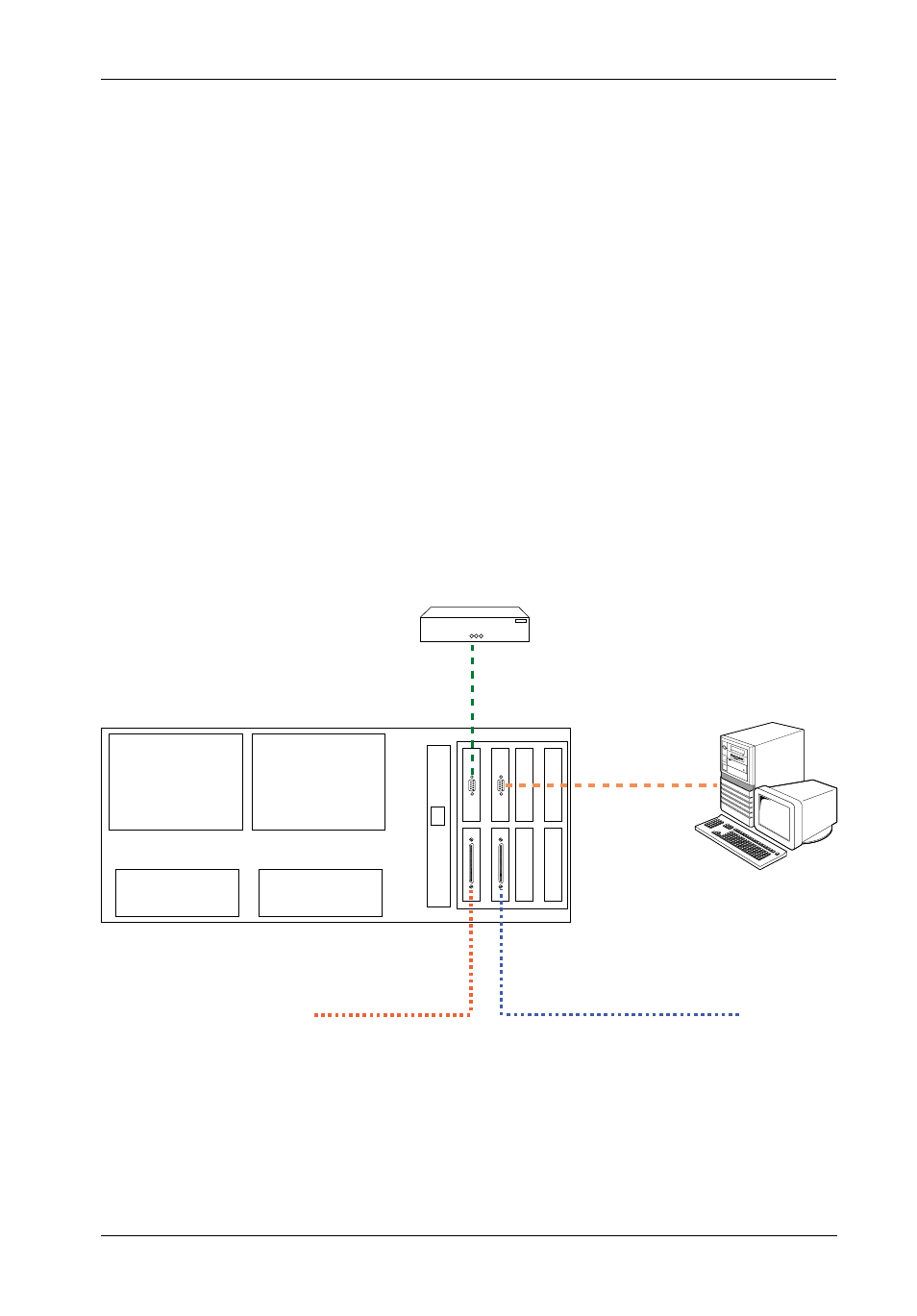

Figure 6: Typical Dual SCSI Host Connection to InfoStation
VT-100/ANSI
Terminal
External
Modem
To SCSI
Host 0
To SCSI
Host 1
