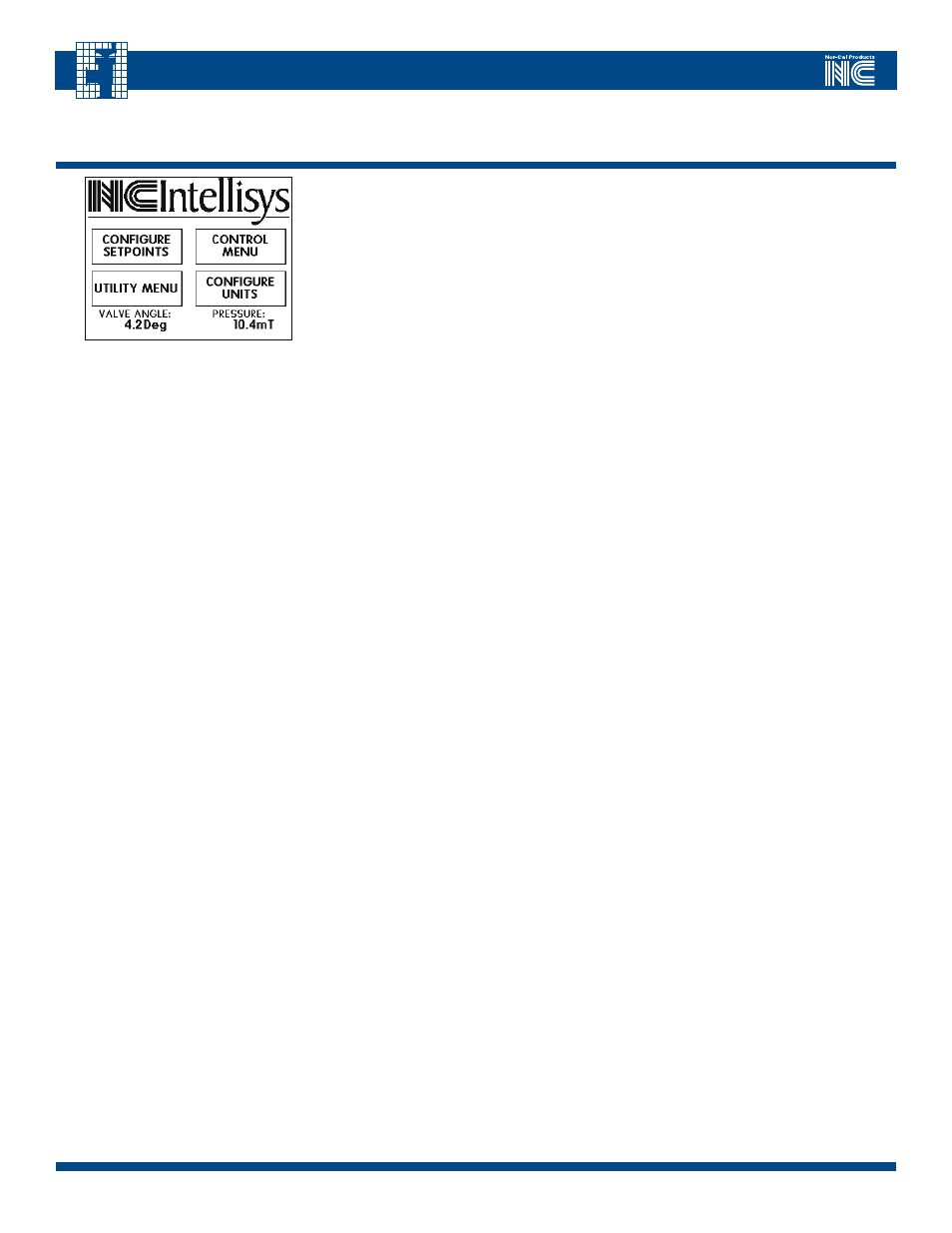

The mAIN mENU page simply serves as a central node used in navigation to the various sub menu pages.
From this screen, the user can access sub-menus that are used:
a)
to configure set-point parameters such as value, type and certain tuning parameters
b)
to perform utility functions such as valve initialization, controller reset and LCD set-up
c)
to configure engineering units for pressure and valve position, and
d)
in the active control mode of the controller and valve system
The mAIN mENU also displays real time values for both pressure and valve position, and is therefore
intended to be the page that is displayed whenever the controller is in normal operation mode.
