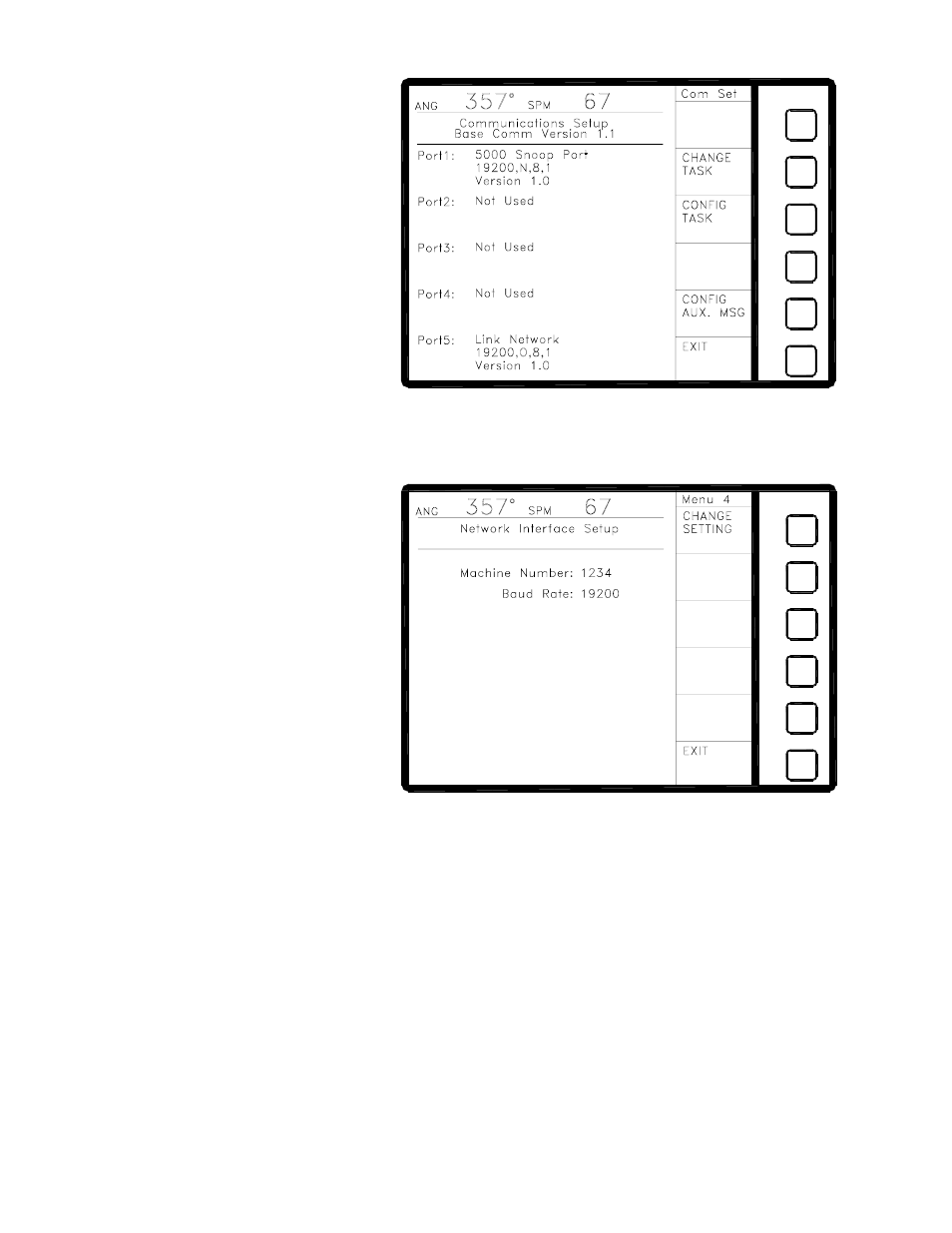

Figure 7.3: OmniLink (Monochrome) Communications
Configuration Screen
• Push the “CONFIG COMM.” softkey
to display the communications setup
screen, which should look similar to
Figure 7.3 (the port configurations
may vary depending on how the
particular machine is set up and what
options have been installed).
• Use the up and down arrow keys to
highlight “Port 5" and hit the
“CHANGE TASK” softkey until the
description for port 5 reads “Link
Network”.
Figure 7.4: OmniLink (Monochrome) Network Configuration
Screen
• Hit the “CONFIG TASK” softkey and
a screen similar to Figure 7.4 should
appear. Highlight the field for
“Machine Number” and enter the
machine number desired for this
press. If necessary, highlight the
“Baud Rate” field and hit the
“CHANGE SETTING” softkey until
it reads “19200".
• Exit back out to the main screen.
