5.2.2 Tonnage Detail
The tonnage detail
screen (“Peak Tons”
tab - see Figure 5.3)
shows the tonnage,
high setpoint, low
setpoint, reverse
setpoint, and any
alarms for each
channel of the tonnage
monitor. In addition,
indications are
provided to show
when the tonnage
monitor is bypassed
and whether reverse
and low limits are on
or off.

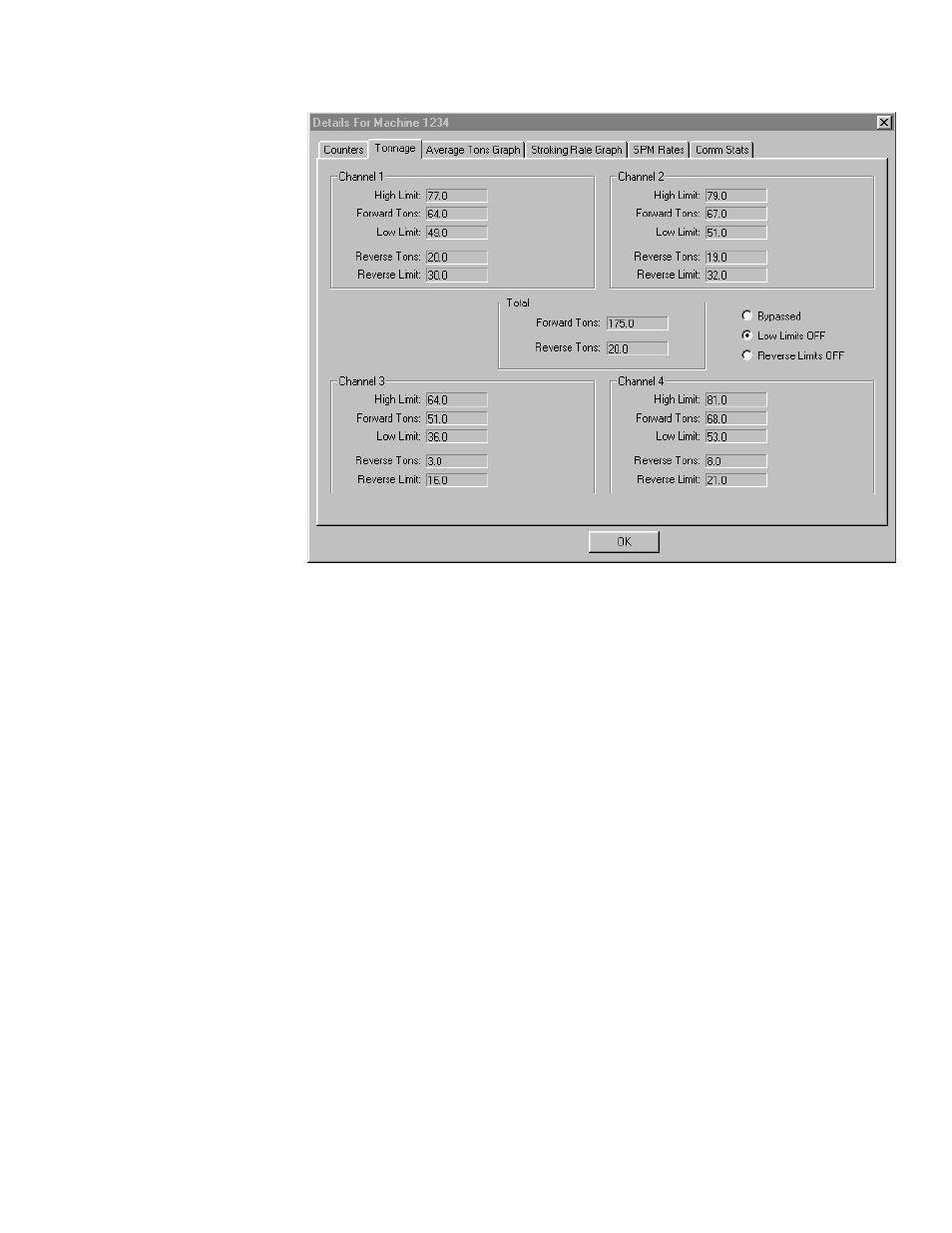

Figure 5.3: Machine Detail “Tonnage” Dialog Box
