2.6 System 1100 Connections
System 1100 tonnage monitors with software versions older than version 3.2 in the operator
interface board (the circuit board that is mounted on the door of the 1100) will need to have a software
upgrade in order to function with LinkNet. Contact Link for the appropriate software. The System 1100
has three terminal strips on the circuit board mounted to the door of the unit, two of which should
already be wired. The “NETWORK” port (see Figure 2.8) should be wired as follows:
Terminal A
Green/White and White/Green
Terminal B
White/Blue
Terminal C
Blue/White
Terminal D
White/Orange
Terminal E
Orange/White

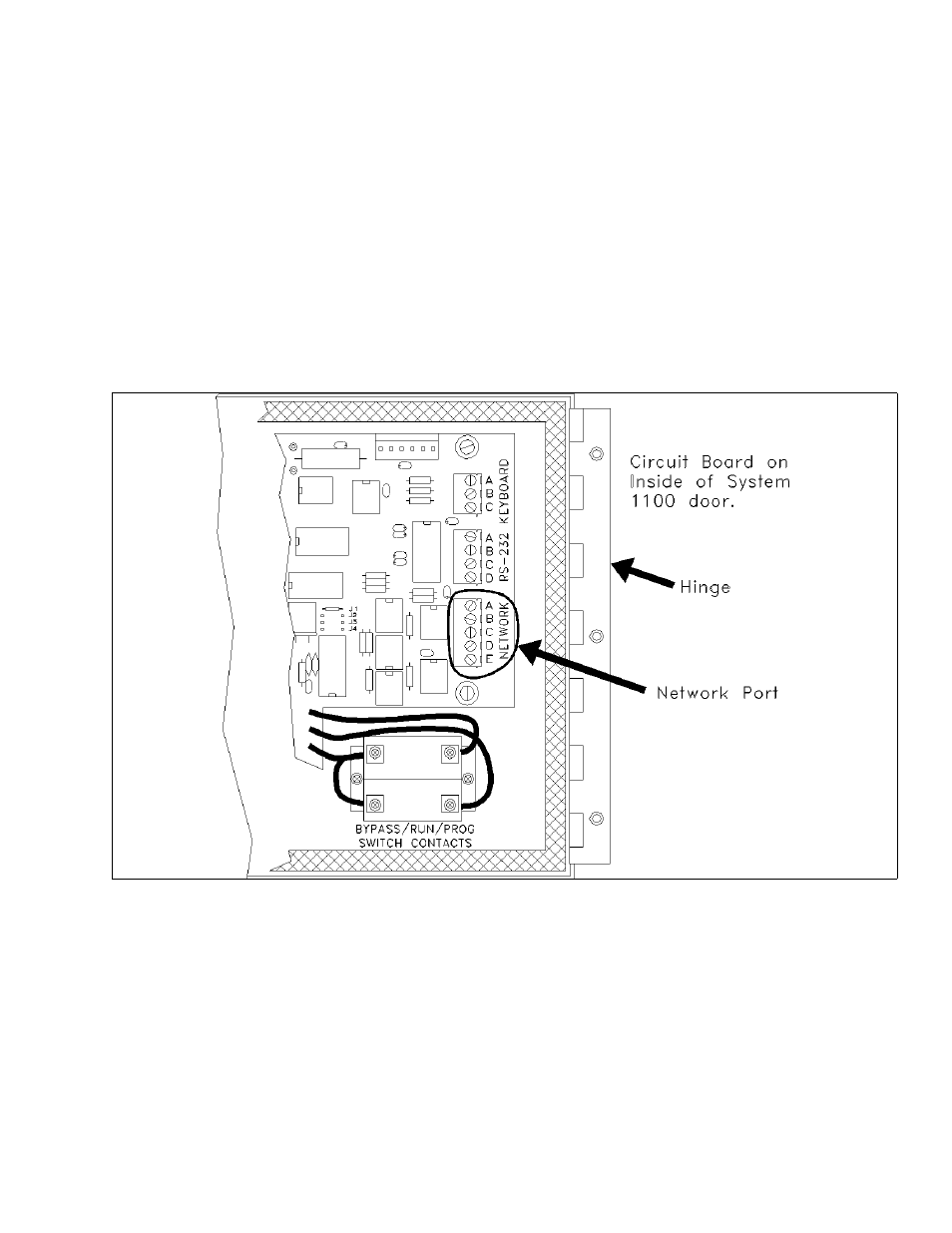

Figure 2.8: System 1100 Network Connections
