7. Front Panel Interface
56
PLM+ SERIES Operation Manual rev 1.0.0
7.11.8.1. Configure # of Cabinets in Parallel
This option allows selection of the number of speaker cabinets connected to each PLM+ output channel. Select
individual or multiple outputs and use the rotary encoder to set the value from 1 to 4. This value is used by
LoadSmart to confirm the correct connection and status of the speakers connected to each PLM+ channel.
7.11.8.2. LoadSmart Verification
Select this option to initiate LoadSmart verification, then select YES to continue. LoadSmart performs a rapid test
of all output channels, and displays the results on the LCD a few seconds later.

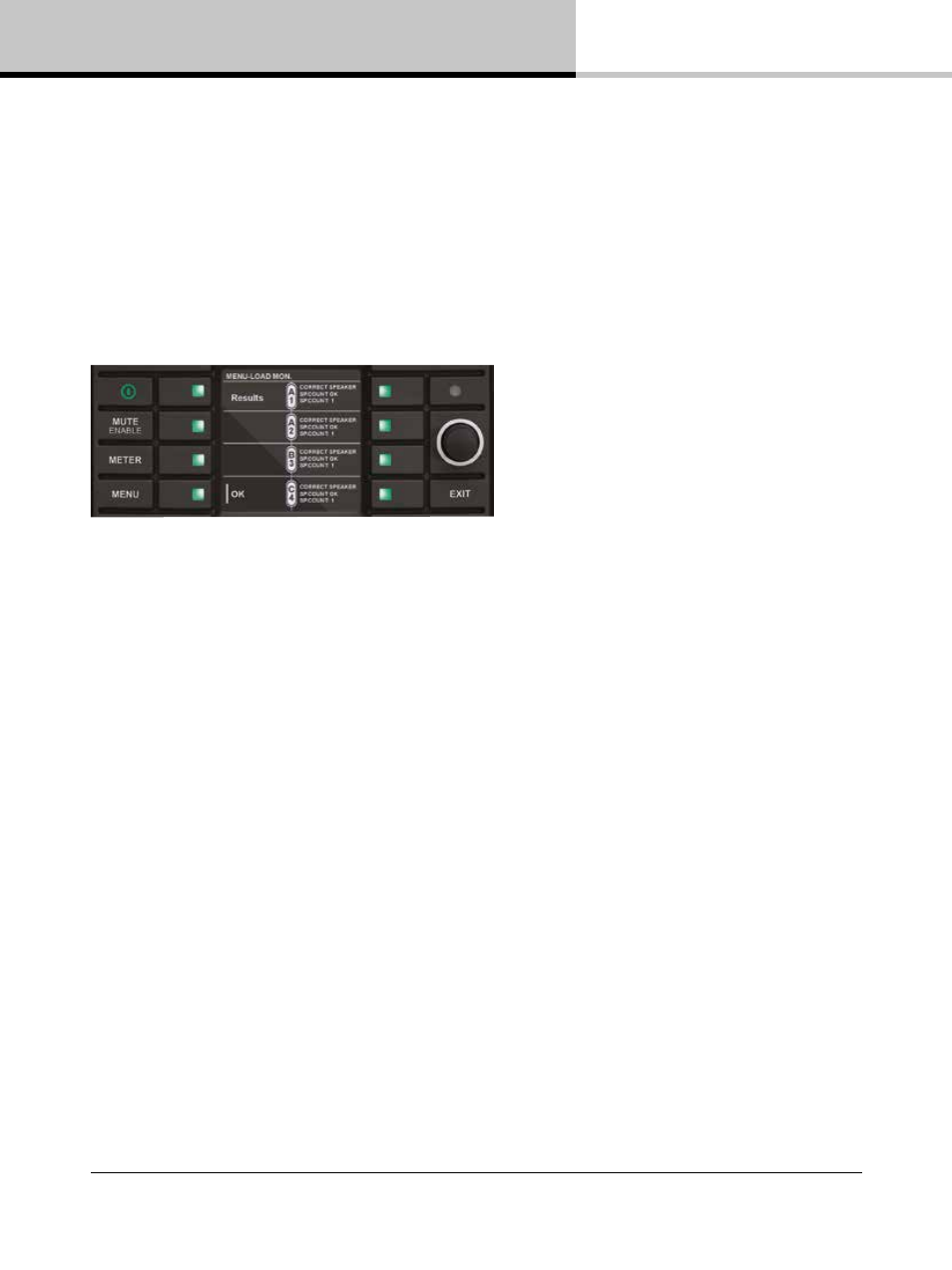

Figure 7.23: LoadSmart Verification Results Screen
The Load Results page provides three items of information per output channel:
• Confirmation that the speaker connected matches the speaker fingerprint assigned to the channel. If no
Fingerprint is assigned, NO MODEL will be displayed. If the wrong speaker is connected; “Wrong Speaker”
will be displayed
• Result of speaker cabinet count; this will either be OK or WRONG.
• Estimated number of speakers connected to the channel.
