Advanced Setup – Part 1
Advanced Setup – Part 1
Mute Level:
Set the volume attenuation level when the mute mode is
set for the different zones.
• FULL
The volume is fully muted.
• –40 dB
The volume is lowered 40 dB from the current level.
• –20 dB
The volume is lowered 20 dB from the current level.
Volume Level:
Set whether to fix the output level for the different zones
or make it variable.
• Variable
The level can be adjusted freely using buttons on the
remote control unit.
• –40 dB, 0 dB
The output level is fixed at the set level and the volume
can no longer be adjusted.
3
Press the
ENTER
button to enter the setting.
• The “Option Setup” menu reappears.
• The volume control for ZONE3 can be set only when “ZONE3”
is selected at “Power Amp Assign” (
page 72).
• For ZONE2 and ZONE3, the “Volume Limit” and “Power On
Level” can be set when “Variable” is selected for “Volume
Level”.
• When the power amplifier is assigned to either of the ZONE2
and ZONE3 channels at “Power Amp Assign”, “–VAR–” (only
variable) is displayed and the fixed level cannot be set.

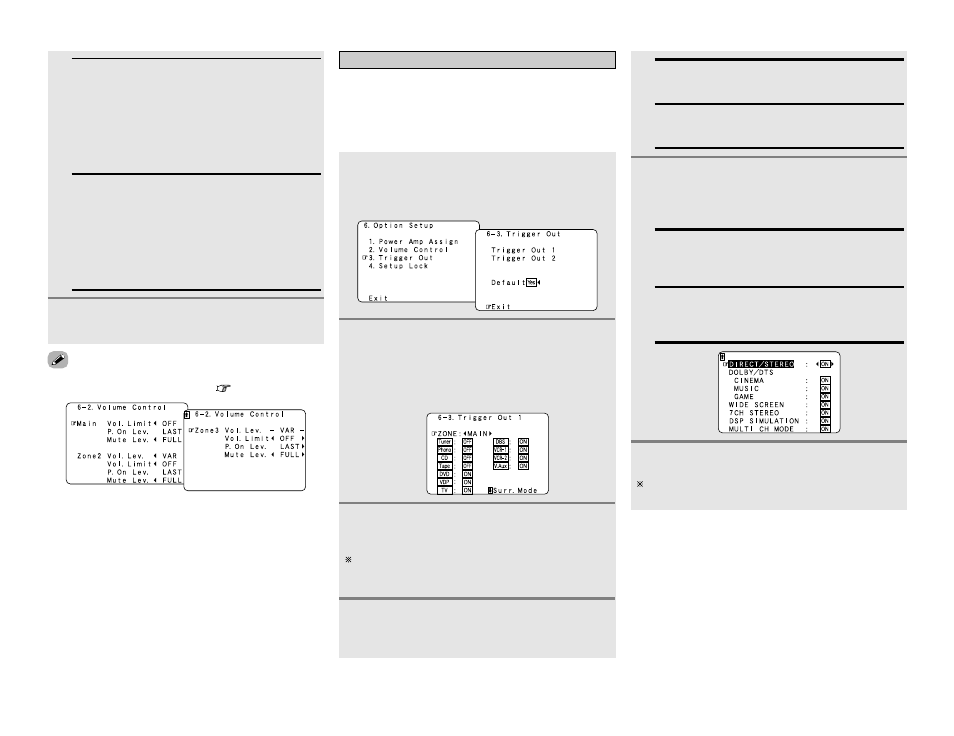

Setting the Trigger Out
• Two 12 V DC Trigger Outputs on the rear panel can be used to
control other devices with compatible trigger inputs, such as
motorized screens, motorized screen masking, motorized
drapes, and other trigger-controlled devices.
• Set the DC output supplied from the trigger out terminals for
the various input sources to “ON” or “OFF”.
1
Press the
CURSOR D
D
or
H
H
button to select the
“Trigger Out” at the “Option Setup” menu, then
press the
ENTER
button.
• The “Trigger Out” screen appears.
3
Press the
CURSOR F
F
or
G
G
button to select the
zone (MAIN ZONE, ZONE2 and ZONE3).
The power supplied from the trigger out terminal turns on
and off when the power for the set zone is turned on and
off.
6
Press the
ENTER
button.
• The “Trigger Out” screen reappears.
Use the same procedure to make the settings for Trigger
Out 2.
2
Press the
CURSOR D
D
or
H
H
button to select the
trigger out terminal you want to set, then press
the
ENTER
button.
• The setting screen appears.
Example: When “Trigger Out 1” is selected
5
If “MAIN” was selected at step 3:
Press the
CURSOR D
D
or
H
H
button to select the
surround mode, then press the
CURSOR F
F
or
G
G
button to select the “ON” or “OFF”.
4
Press the
CURSOR D
D
or
H
H
button to select the
input source, then press the
CURSOR F
F
or
G
G
button to select the “ON” or “OFF”.
ON:
When that input source is selected, the power supplied
from the trigger out terminal turns on.
OFF:
When that input source is selected, the power supplied
from the trigger out terminal turns off.
ON:
If “ON” is selected when an input source set to “ON” is
selected, the power supplied from the trigger out
terminal turns on.
OFF:
If “OFF” is selected when an input source set to “ON”
is selected, the power supplied from the trigger out
terminal turns off.
