20

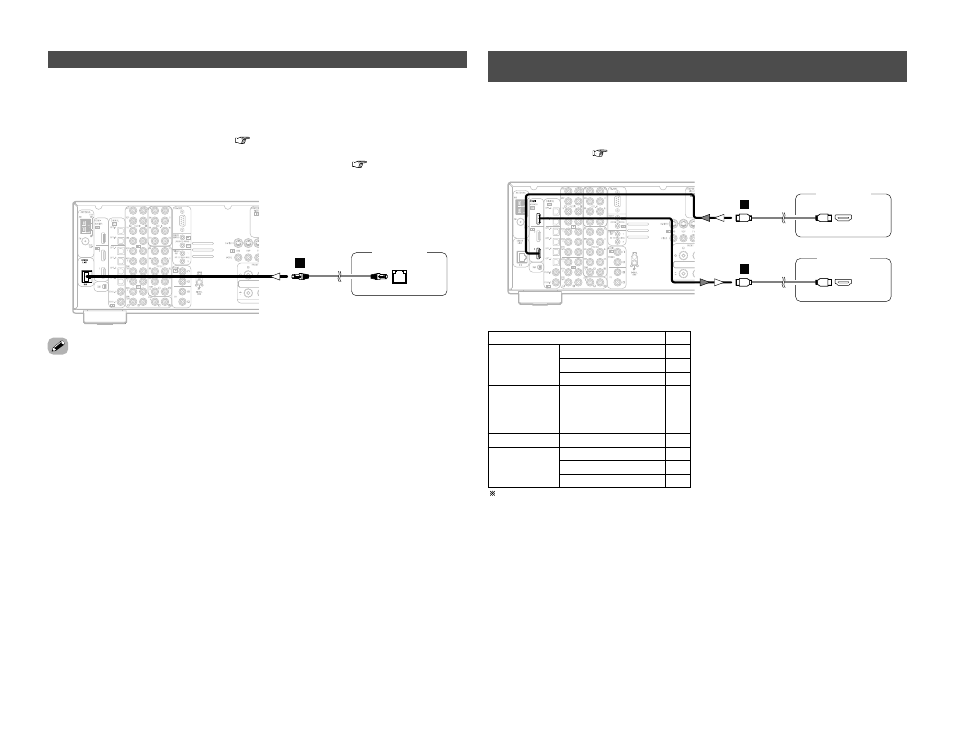

Connecting Other Sources Connecting Other Sources
DENON LINK connections
DVD player
DENON
LINK
E
• High quality digital sound with reduced digital signal transfer loss can be enjoyed by connecting
a separately sold DENON LINK compatible DVD player.
• Digital transfer and multi-channel playback of DVD Audio discs, Super Audio CDs and other multi-
channel sources are possible by connecting the AVR-3806 to a DENON DVD player equipped with
a DENON LINK connector using the connection cable included with the DVD player. For
instructions on playing Super Audio CDs (
page 59).
• When a DENON DVD player and the DENON LINK have been connected, be sure to make a
setting to “DENON LINK” with “Setting the Digital In Assignment” ( page 63).
Connecting equipment with HDMI (High-Definition Multimedia
Interface) terminals
• A simple 1-cable connection (using a commercially available cable) with a device having an HDMI
(High-Definition Multimedia Interface) connector allows digital transfer of the digital images of
DVD video and other sources, and the multi-channel sound of DVD Audio and DVD Video.
• To provide audio output from AVR-3806’s audio output connector, select “Amp” at the System Setup.
To provide audio output from the TV, select “TV” at the System Setup. For details, see “Setting
the HDMI In Assign” (
page 66, 67).
• With discs on which special copyright protection measures have been taken, however, the digital
signals may not be output from the DVD player. In this case, connect the DVD player’s analog
multi-channel output to the AVR-3806’s EXT. IN terminals for playback.
Also refer to your DVD player’s operating instructions.
DVD player
HDMI
OUT
Monitor TV
HDMI
IN
J
J
C C
DVD Video
Input signals
LINEAR PCM
DTS
Dolby Digital
DVD Audio
C C
LINEAR PCM
PACKED PCM
(with CPPM /
without CPPM)
C C
C C
C C CD LINEAR PCM
E E
Super Audio
CD
Multi area
CD area
Stereo area E E
C
C
2 Copyright Protection System
To play back the digital video and audio of DVD
video and DVD audio through an HDMI/DVI-D
connection, both the connected player and
monitor are required to support a copyright
protection system called HDCP (High-
bandwidth Digital Content Protection System).
HDCP is copy protection technology that
comprises data encryption and authentication
of the partner equipment.
The AVR-3806 supports HDCP. Please see the
user’s manual of your video display for more
information about this.
The AVR-3806 is HDMI Ver. 1.1 compatible.
