Page 29
24
Connecting Other Sources
Connecting Other Sources
For instructions on operations using the MULTI ZONE functions (
page 56~58).
Connecting the MULTI ZONE terminals
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 pre-out
(variable) and ZONE3 pre-out (fixed level) terminals can be used to play a different program
source in ZONE2 (or ZONE3) the same time (
page 56).
• The ZONE2 video out is only for the ZONE2.
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired
and connected between the MAIN ZONE and ZONE2 (ZONE3), the remote-controllable devices
in the MAIN ZONE can be controlled from ZONE2 (ZONE3) using the remote control unit.

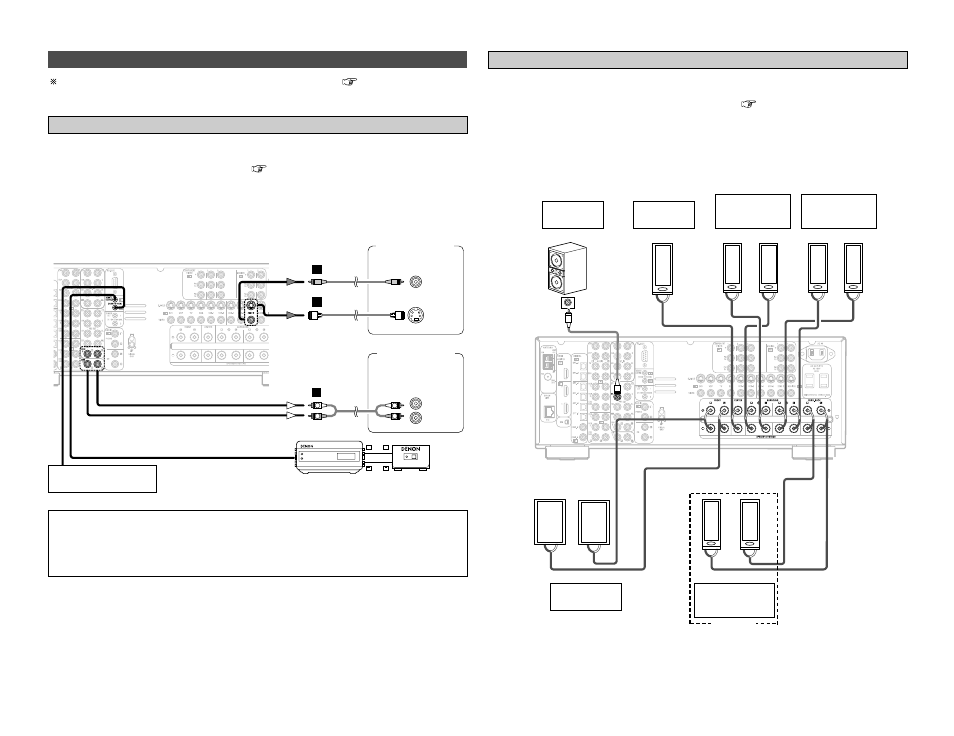

ZONE2 (or ZONE3) pre-out connections
NOTE:
• For the AUDIO output, use high quality pin-plug cables and wire in such a way that there is no
humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
• When the surround back’s power amplifier is assigned to the ZONE2 or ZONE3 output channel
at “Power Amp Assign” in the “System Setup Menu”, the surround back speaker terminals can
be used as the ZONE2 or ZONE3 speaker out terminals (
page 57).
• The connections diagram below is an example for when the surround back speaker is assigned
to the ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.
ZONE2 / ZONE3 speaker out connections
Power amplifier
(ZONE2)
Premain amplifier
(ZONE3)
R
L
IN
Monitor TV
(ZONE2)
S VIDEO
IN
VIDEO
IN
AUX OUT
R
L
R
L
H
A
G
+
+
RC-617
INFRARED
SENSOR
RC-616
INFRARED
RETRANSMITTER
INPUT
OUTPUT
Extension terminal
for future use.
Monitor TV
(ZONE 2)
Power amplifier
(ZONE 2)
Premain amplifier
(ZONE 3)
>
<
>
<
>
<
>
<
>
<
>
<
>
<
>
<
>
<
IN
(R)
(L)
(L)
(R)
(L)
(R)
(L)
(R)
Connection
terminal for
subwoofer
with built-in
amplifier
(subwoofer),
etc.
Surround
speaker
systems (A)
Subwoofer
Surround
speaker
systems (B)
ZONE2
Front speaker
systems
Front speaker
systems
Center
speaker
ZONE2
