23
Connecting Other Sources Connecting Other Sources

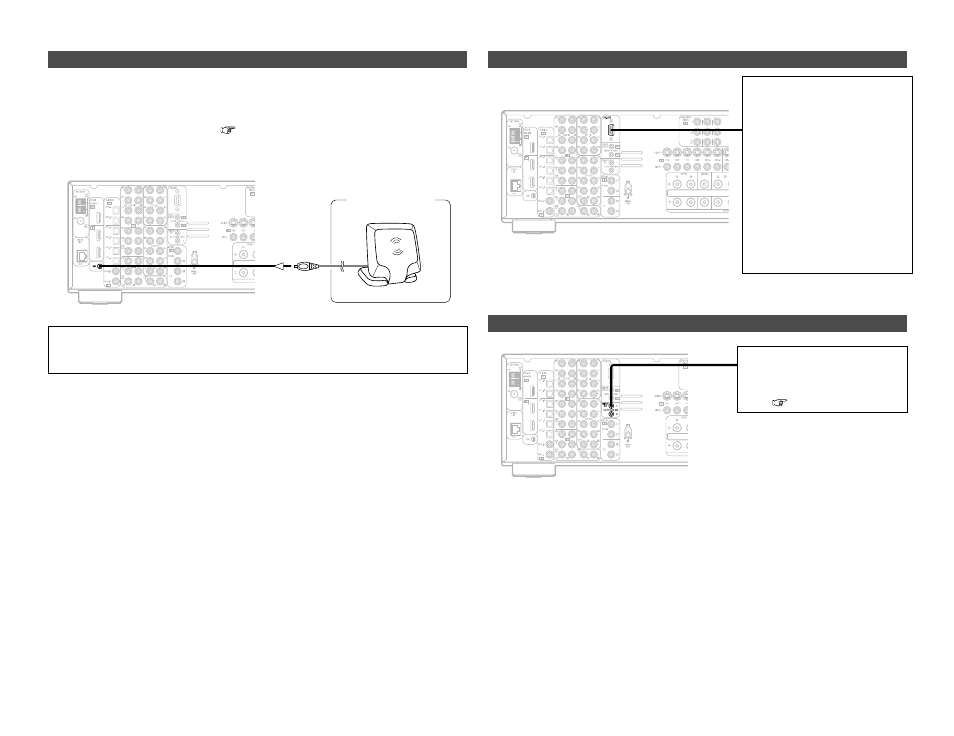

Connecting the XM terminal
• AVR-3806 is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the
XM Connect-and-Play TM (sold separately) and subscribing the XM service.
• Plug the XM Connect-and-Play antenna into XM terminal on the rear panel.
• Position the XM Connect-and-Play antenna near a south-facing window to receive the best signal.
For details, see “XM Satellite Radio” ( page 45).
When making connections, also refer to the operating instructions of the XM Connect-and-Play
antenna.
NOTE:
• Keep the power supply cord unplugged until the XM Connect-and-Play antenna connection
have been completed.
Connecting the CONTROL terminal
This terminal is used for an external
controller.
Perform the following operation
before using an external controller
connected to the RS-232C terminal:
1. Press the ON/STANDBY switch
on the main unit and set the unit
to the operating mode.
2. Perform the operation to turn off
the power from the external
control.
3. Check that the product has been
set to the standby mode.
After checking the above, check the
connections of the external
controller. Operation is possible.
Connecting the TRIGGER OUT terminals
Turn the DC 12V voltage on and off
for the individual functions and
surround modes.
For details, see “Setting the Trigger
Out” (
page 73).
XM Connect-and
-Play Antenna
XM
