Connecting Other Sources

Connecting Other Sources

• Use these terminals if you wish to connect external power amplifier(s) to increase the power of

the front, center, surround and surround back sound channels, or for connection to powered
loudspeakers.

• When using only one surround back speaker, connect it to the left channel.

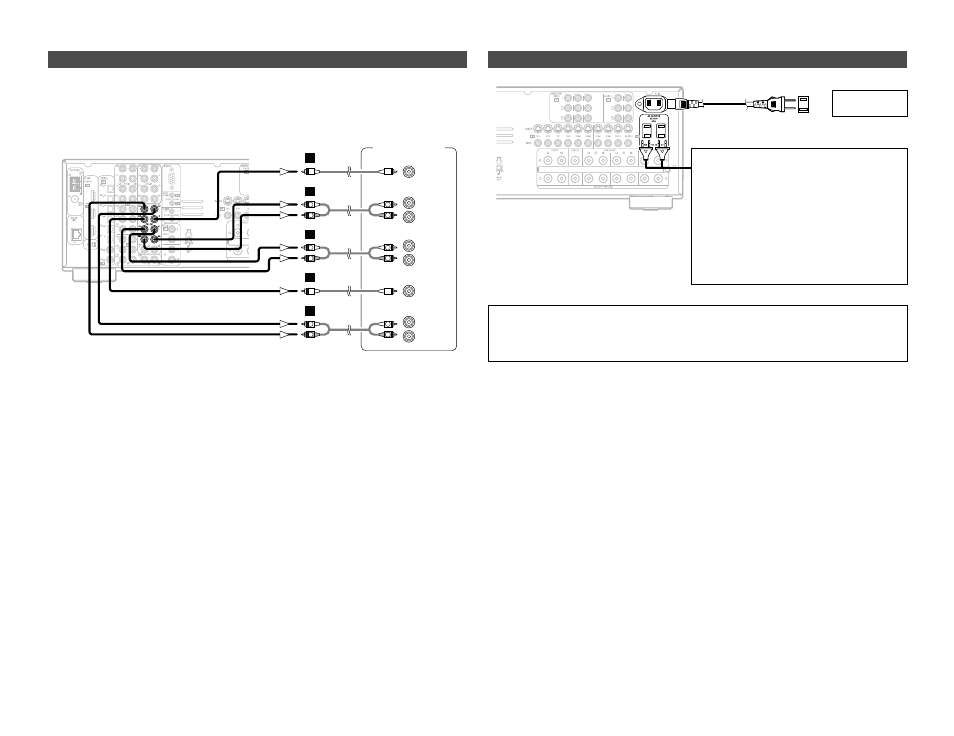

Connecting the pre-out terminals

Power amplifier

R

SURROUND

BACK

L

R

SURROUND

L

R

FRONT

L

CENTER

SUB-

WOOFER

R

L

R

L

B

A

B

A

R

L

R

L

R

L

R

L

A

Connecting the power supply cord

AC 120 V, 60 Hz

AC outlets

(wall)

Power supply cord

(Supplied)

NOTE:
• Only use the AC OUTLETS for audio equipment. Never use it for hair driers, TVs or other

electrical appliances.

• Insert the plugs securely. Incomplete connections will result in the generation of noise.

AC OUTLETS
• SWITCHED (total capacity – 120 W (1 A.))

The power to the outlet is turned on and off in
conjunction with the POWER switch on the
main unit, and when the power is switched
between on and standby from the remote
control unit.
No power is supplied from this outlet when
this unit’s power is at standby. Never connect
equipment whose total power consumption
exceeds 120 W (1 A.).
