22

Connecting Other Sources

Connecting Other Sources

1

4

2

3

2

AM loop antenna assembly

Connect to the AM

antenna terminals.

Remove the vinyl tie
and take out the
connection line.

Bend in the reverse
direction.

a. With the antenna

on top any stable
surface.

b. With the antenna

attached to a wall.

Mount

Installation hole Mount on wall, etc.

NOTE:
• Do not connect two FM antennas

simultaneously.

• Even if an external AM antenna is used, do

not disconnect the AM loop antenna.

• Make sure the AM loop antenna lead

terminals do not touch metal parts of the
panel.

An F-type FM antenna cable plug can be connected directly.

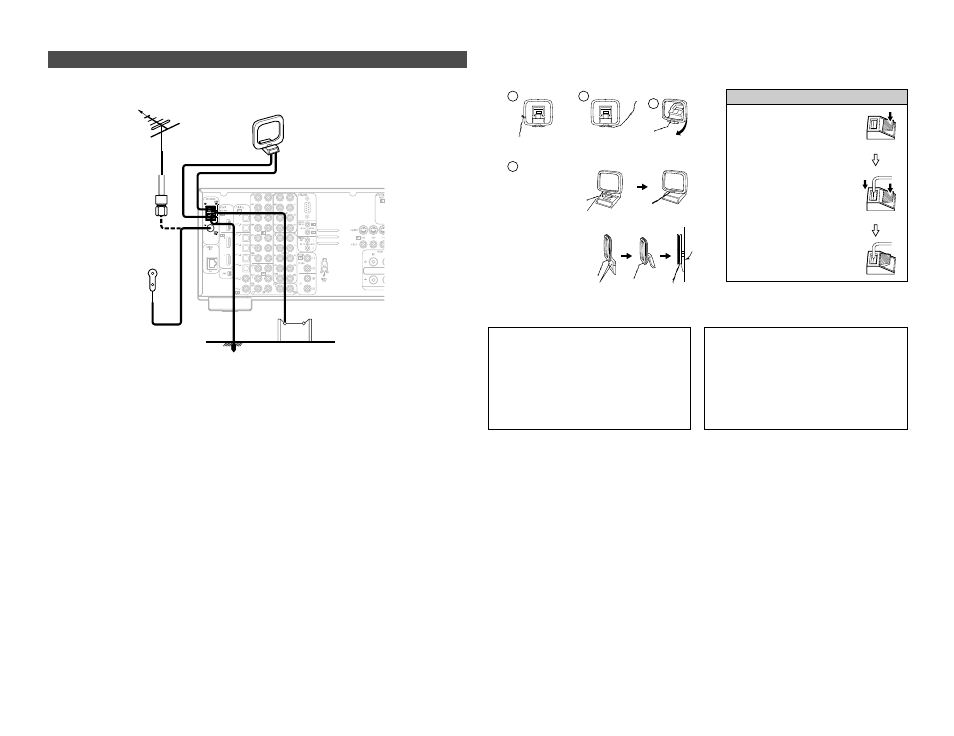

Connecting the antenna terminals

Note to CATV system installer:
This reminder is provided to call the CATV
system installer’s attention to Article 820-40
of the NEC which provides guidelines for
proper grounding and, in particular, specifies
that the cable ground shall be connected to
the grounding system of the building, as
close to the point of cable entry as practical.

Connection of AM antennas

1. Push the lever.

2. Insert the conductor.

3. Return the lever.

DIRECTION OF
BROADCASTING
STATION

75

/ohms

COAXIAL
CABLE

FM ANTENNA

FM INDOOR

ANTENNA

(Supplied)

AM LOOP
ANTENNA
(Supplied)

AM OUTDOOR ANTENNA

GROUND
