MATRIX 400™ REFERENCE MANUAL
80
5
The output signals are fully programmable being determined by the configured
Activation/Deactivation events, Deactivation Timeout or a combination of the two. Refer to
the Digital I/O folder in the VisiSet™ Help On Line for further details.
MATRIX USER INTERFACE
Vext 30 Vdc max
H/G
F/I
I
Load
V
Out

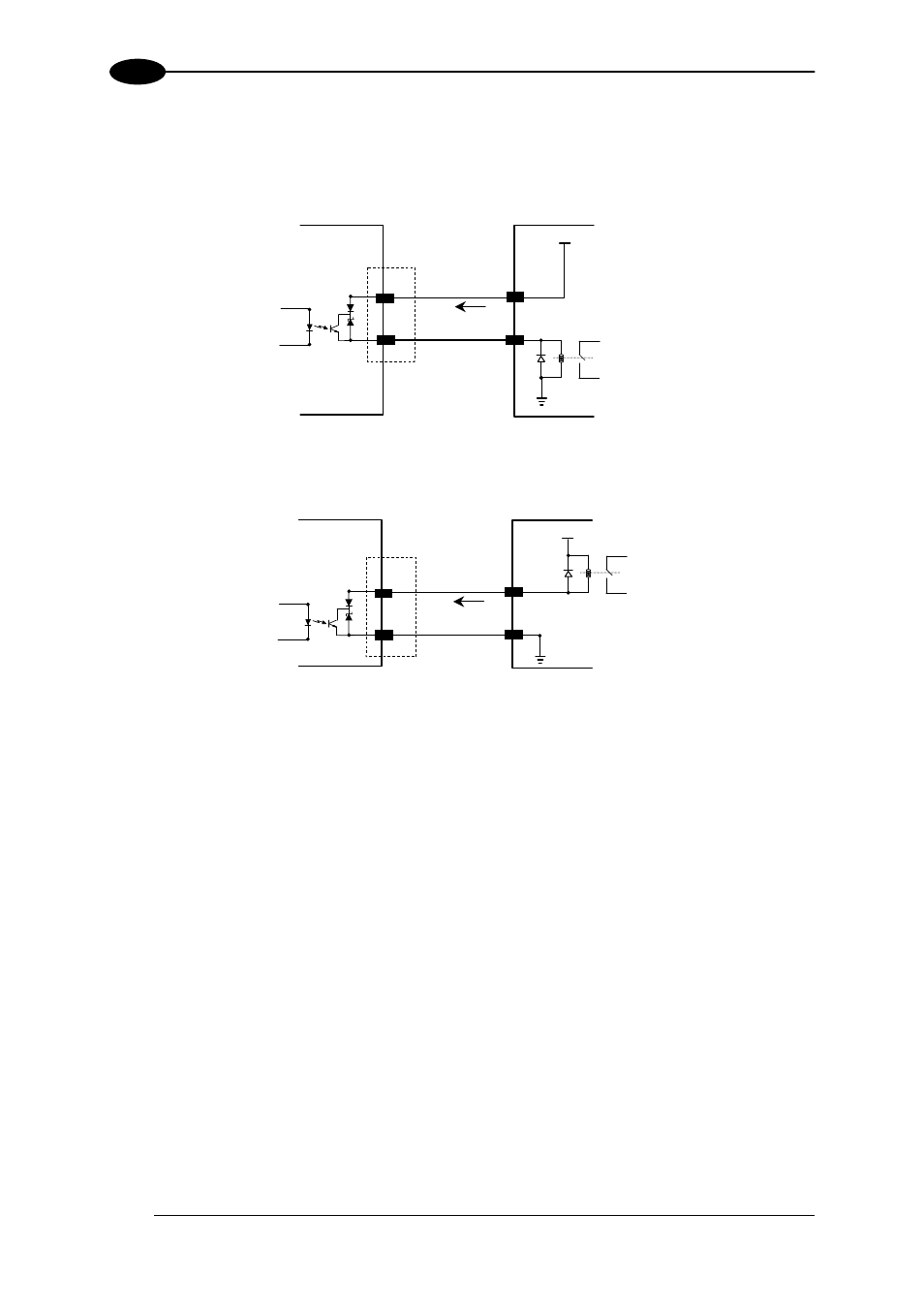

Figure 97 - Open Emitter Output Connection
MATRIX USER INTERFACE
Vext 30 Vdc max
H/G
F/I
I
Load
V
Out
Figure 98 - Open Collector Output Connection
