MATRIX 400™ REFERENCE MANUAL
92
6
When using a Local Area Network (LAN), one or more Matrix 400 XXX-010s can be
connected to the network by using CAB-ETH-M0x straight through cables:

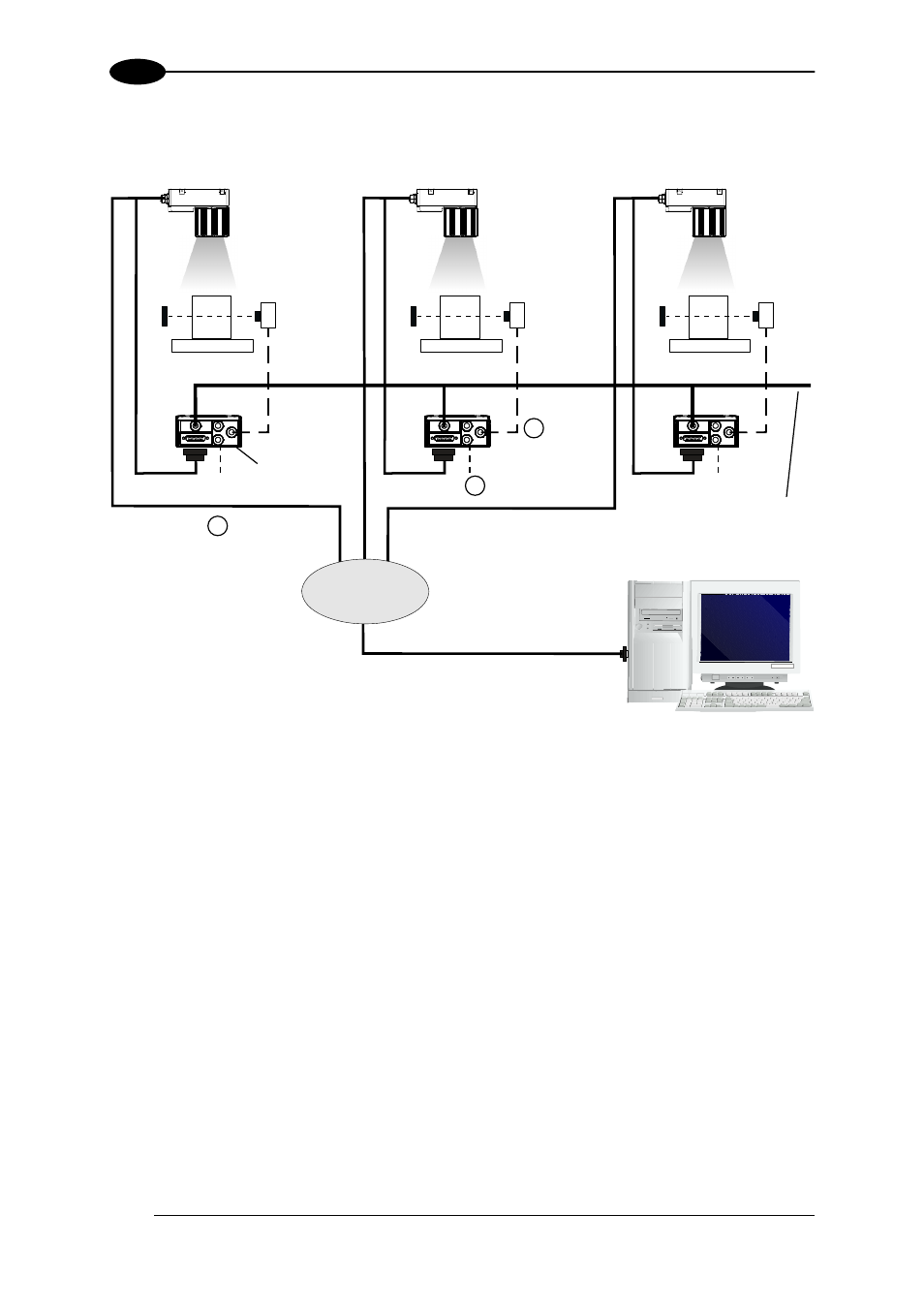

Figure 111 - Ethernet Network Layout
CBX
Matrix 400™
HOST
NETWORK
Power
CAB-ETH-M0
x
CAB-MSx
x
1
2
3
Ethernet Interface (Straight Through Cables)
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for One Shot or Phase Mode)
