Datalogic Scanning Matrix 400 User Manual

Page 63

Text mode
Original mode

background image

CBX ELECTRICAL CONNECTIONS

53

4

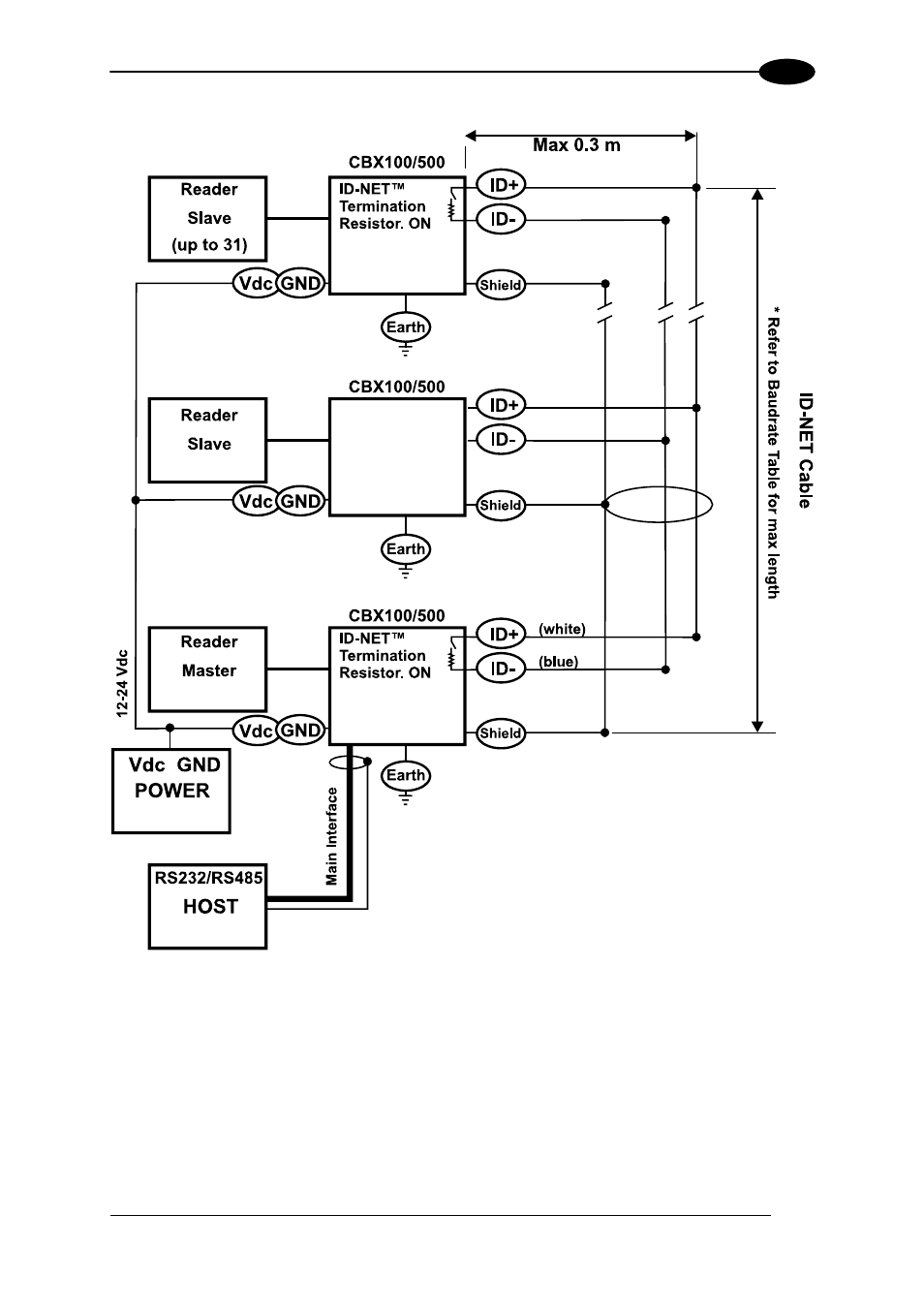

Figure 58 - ID-NET™ Network Connections with Common Power Branch Network
