INTRODUCTION
29
2
READY
green
green
yellow
yellow
red
SETUP
FOCUS
TEST
LEARN
GOOD
TRIGGER
COM
STATUS
READY
green
green
yellow
yellow
red
SETUP
FOCUS
TEST
LEARN
GOOD
TRIGGER
COM
STATUS
READY
green
green
yellow
yellow
red
SETUP
FOCUS
TEST
LEARN
GOOD
TRIGGER
COM
STATUS

Release button
to enter Setup Mode

Release button
to enter Learn Mode
 (cycle)
Release button
to Exit
Test Mode (Function 1)

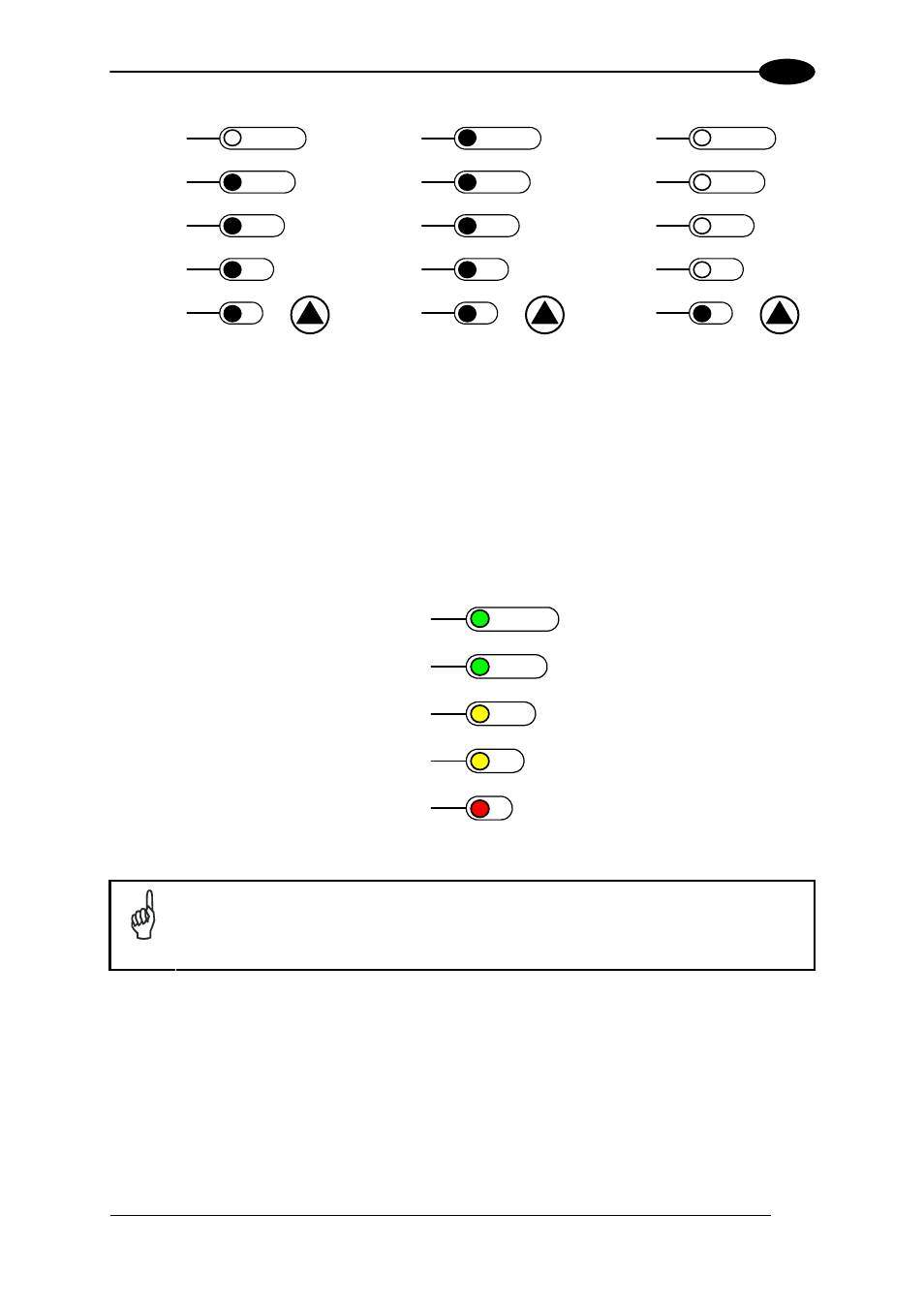

Once entered, the Bar Graph on the five LEDs is activated and if the imager starts reading
codes the Bar-Graph shows the Good Read Rate. In case of a NO READ condition, only the
Status
LED is on and blinks.
The Bar Graph has the following meaning:
READY
 95%
 75%
 60%
 40%
 20%
SETUP
FOCUS
TEST
LEARN
GOOD
TRIGGER
COM
STATUS
To exit the Test Mode, press the X-PRESS™ push button once.
NOTE
By default, the Test exits automatically after three minutes.
Focus/Locate (Function 2)
This function causes the Blue Diamonds™ to turn on. The Blue Diamonds™ can be used to
focus the lens at the desired reading distance and since they are centered on the FOV they
can also be used to position the imager on the code. The Focus LED blinks to indicate this
state.
To exit the Focus/Locate Mode, press the X-PRESS™ push button once. The Blue
Diamonds™ turn off.
