MATRIX 400™ REFERENCE MANUAL
42
3
3.3 MOUNTING AND POSITIONING MATRIX 400™

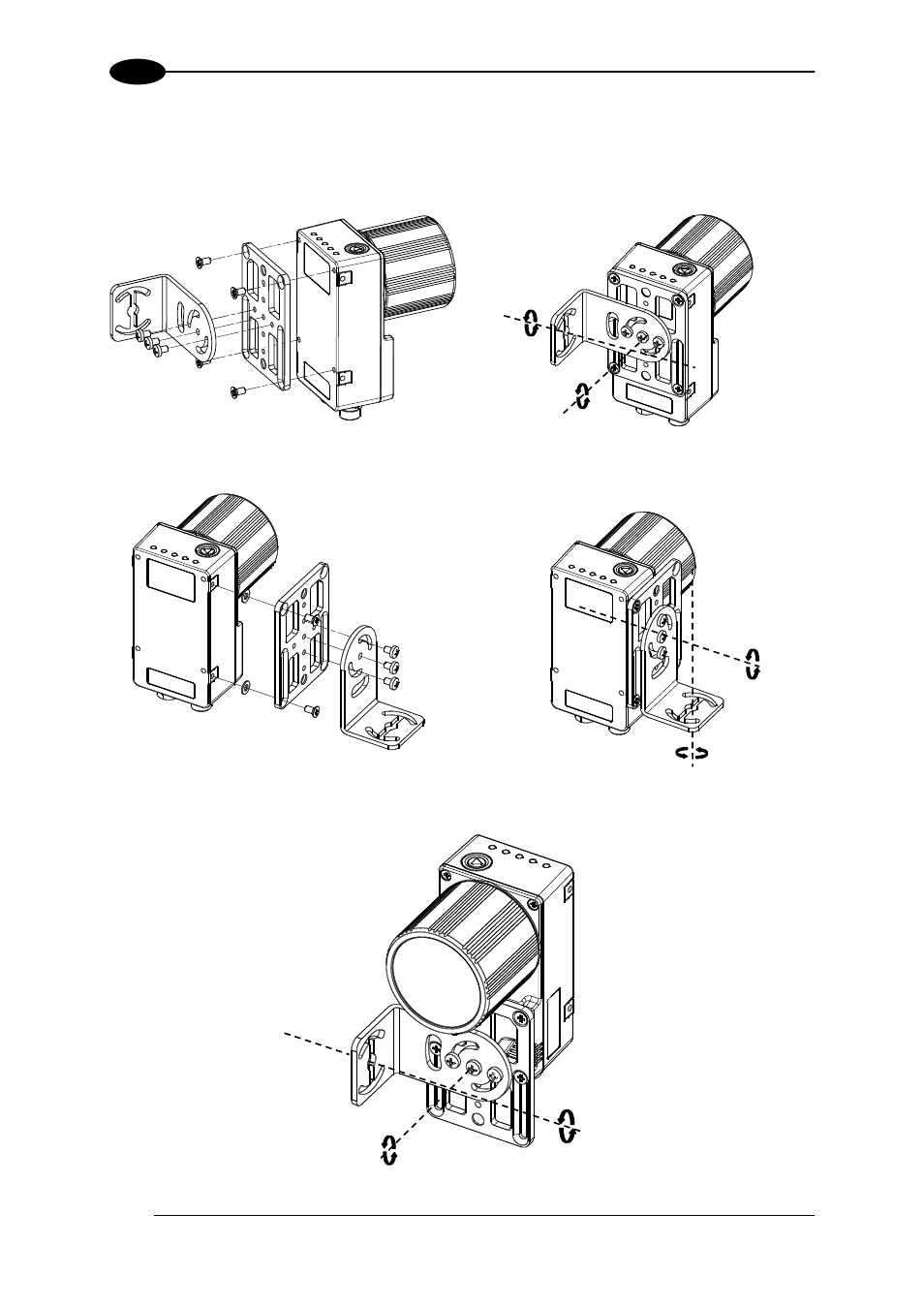

Using the Matrix 400™ mounting brackets you can obtain rotation on the various axes of the
reader as shown in the diagram below:
Figure 43 –Positioning with Mounting Bracket (Back)
Figure 44 –Positioning with Mounting Bracket (Side)
Figure 45 –Positioning with Mounting Bracket (Front)
Tilt
Pitch
Skew
Pitch
Tilt
Pitch
