MATRIX 400™ REFERENCE MANUAL
60
4
OUTPUT CONNECTIONS USING MATRIX 400™ POWER
CAUTION
Power is available directly to the Output Device, independently from the
Power Supply Switch inside the CBX.
Power to Output
Output device Signal
Output device
Reference
Output Device

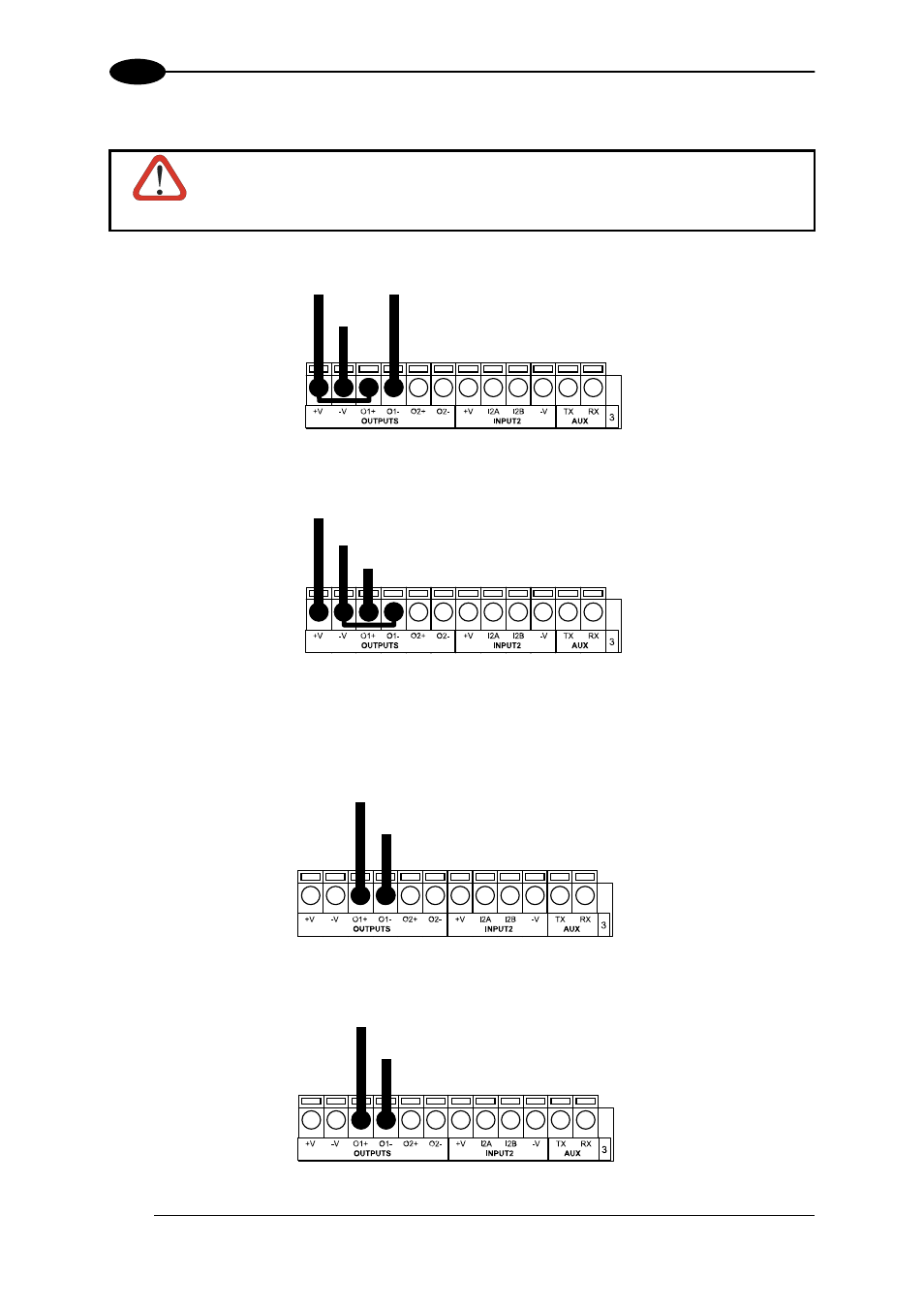

Figure 68 - Open Emitter Output Using MATRIX 400™ Power
Power to
Output device
Output device
Reference
Output Device
Output
Signal
Figure 69 - Open Collector Output Using MATRIX 400™ Power
OUTPUT CONNECTIONS USING EXTERNAL POWER
Pulled up to External
Output Device Power
Output
Signal
Output Device
Figure 70 - Output Open Emitter Using External Power
Pulled down to External
Output Device Reference
Output
Signal
Output Device
Figure 71 - Output Open Collector Using External Power
