MATRIX 400™ REFERENCE MANUAL

72

5

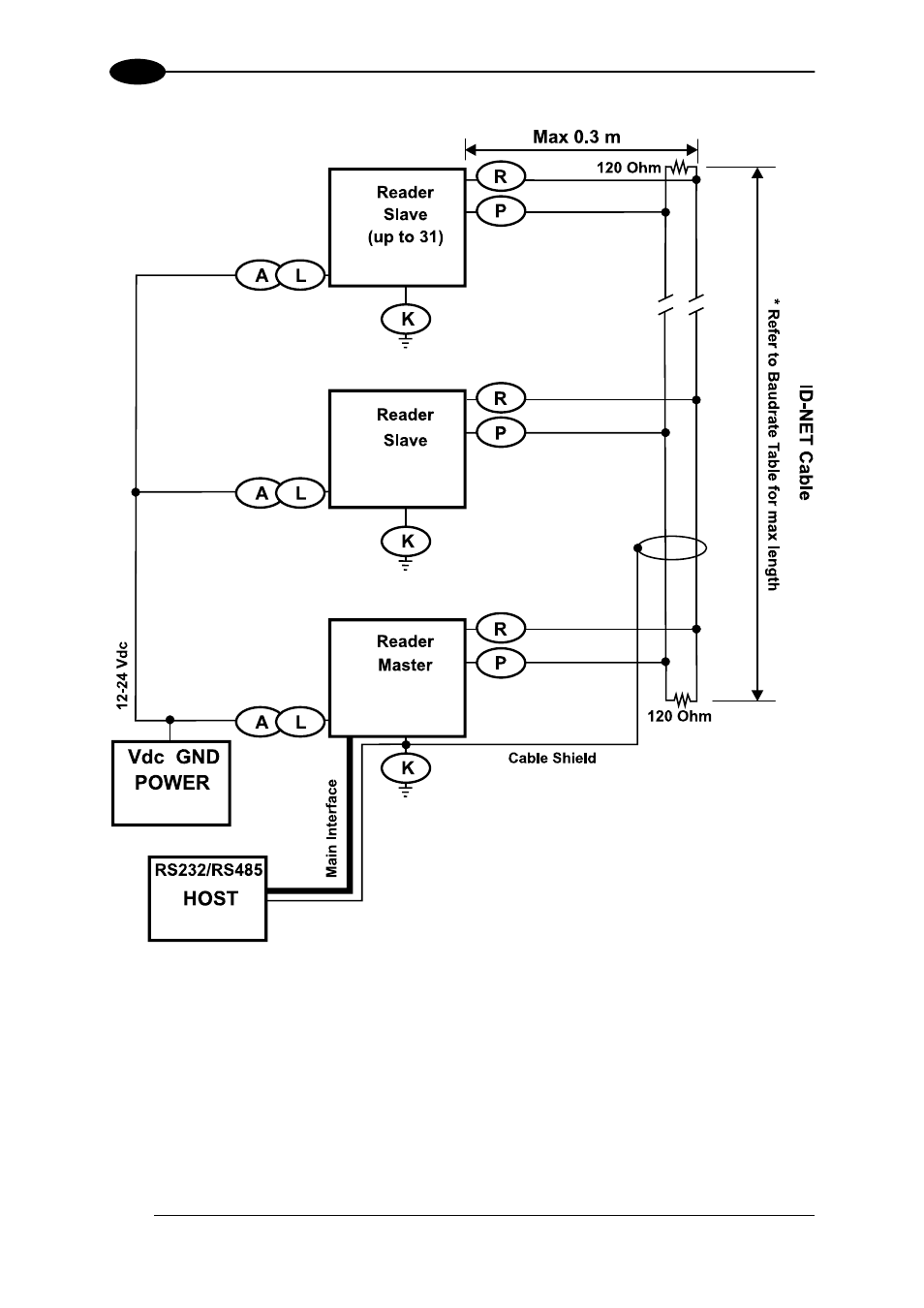

Figure 84 - ID-NET™ Network Connections with Common Power Branch Network
