MATRIX 400™ REFERENCE MANUAL
68
5

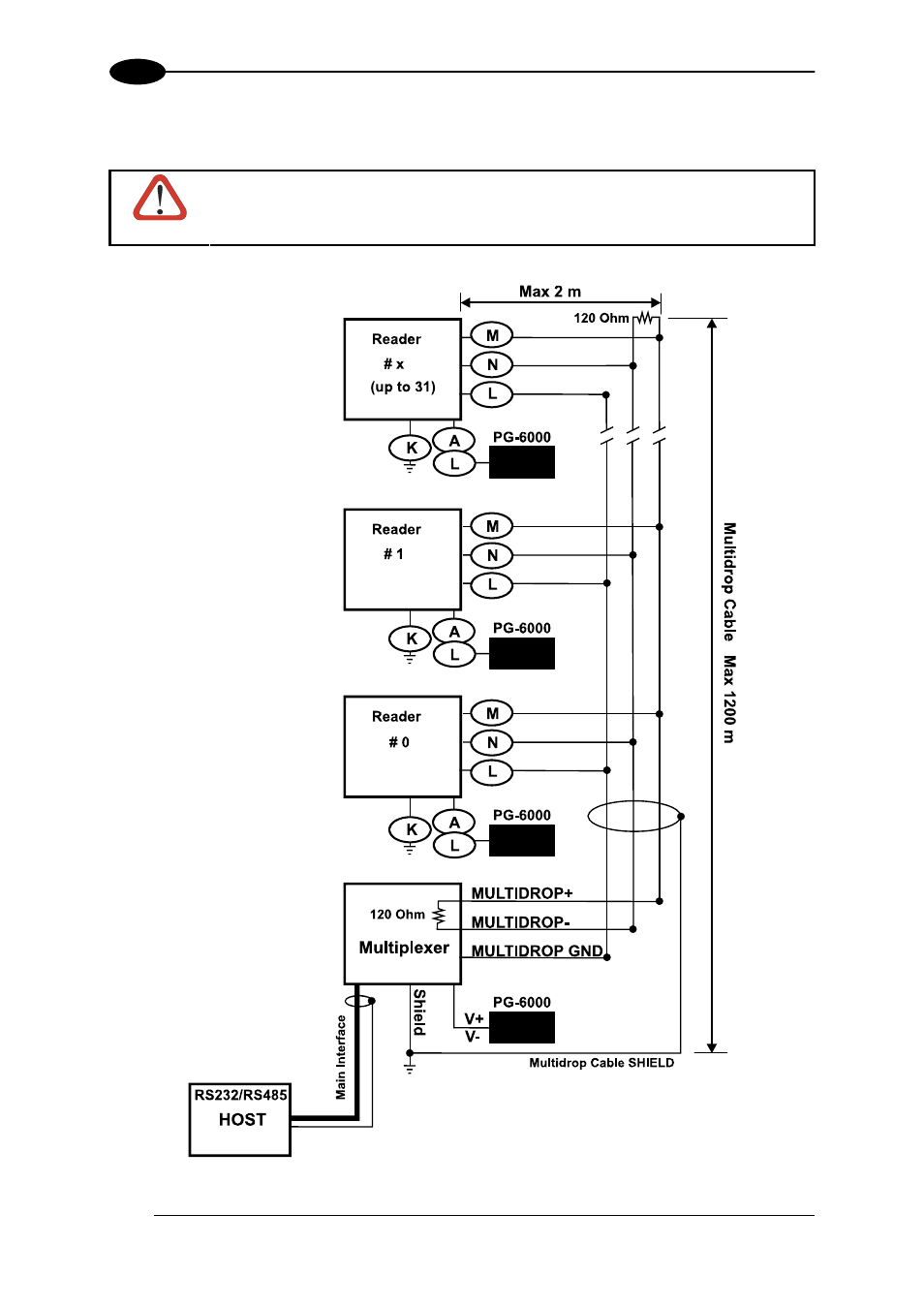

The figure below shows a multidrop configuration with Matrix 400™ readers connected to a
Multiplexer.
CAUTION
This is an example of multidrop wiring. Consult the multiplexer manual for
complete wiring instructions.
Figure 81 - Matrix 400™ Multidrop Connection to a Mutiplexer
