MATRIX 400™ REFERENCE MANUAL
70
5
5.5.2 ID-NET™ Response Time

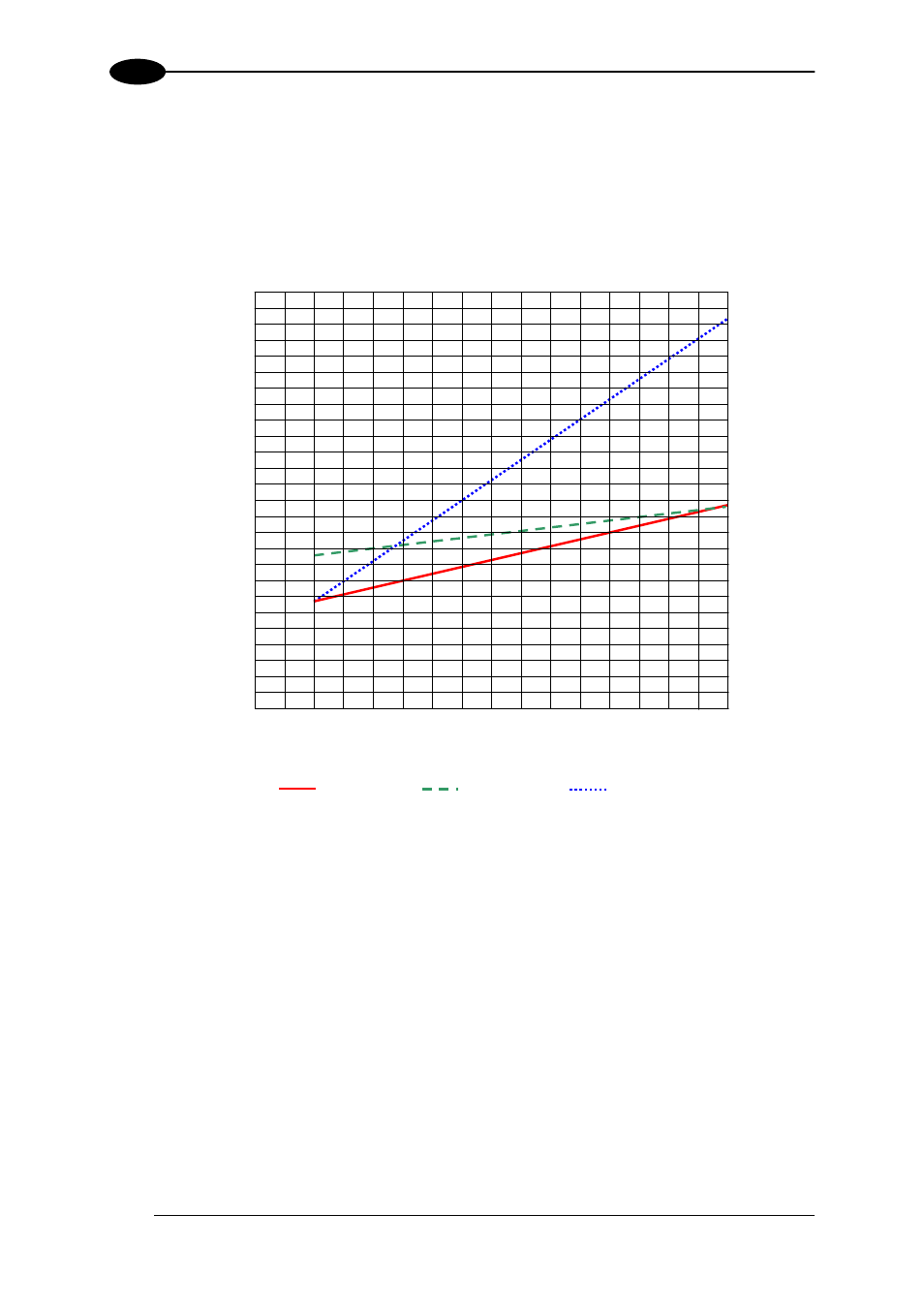

The following figure shows the response time of the ID-NET™ network. This time is defined
as the period between the Trigger activation and the beginning of data transmission to the
Host.
Max ID-NET™ Response Time
240
220
200
180
160
140
120
100
80
60
40
20
0
Response Time (ms)
Number of Nodes
500 kbps 250 kbps 125 kbps
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Figure 82 – ID-NET™ Response Time
CONDITIONS:
 ID-NET™ M/S Synchronized layout
 message length = 50 bytes per node
