- 11 -
7 Appliance installation

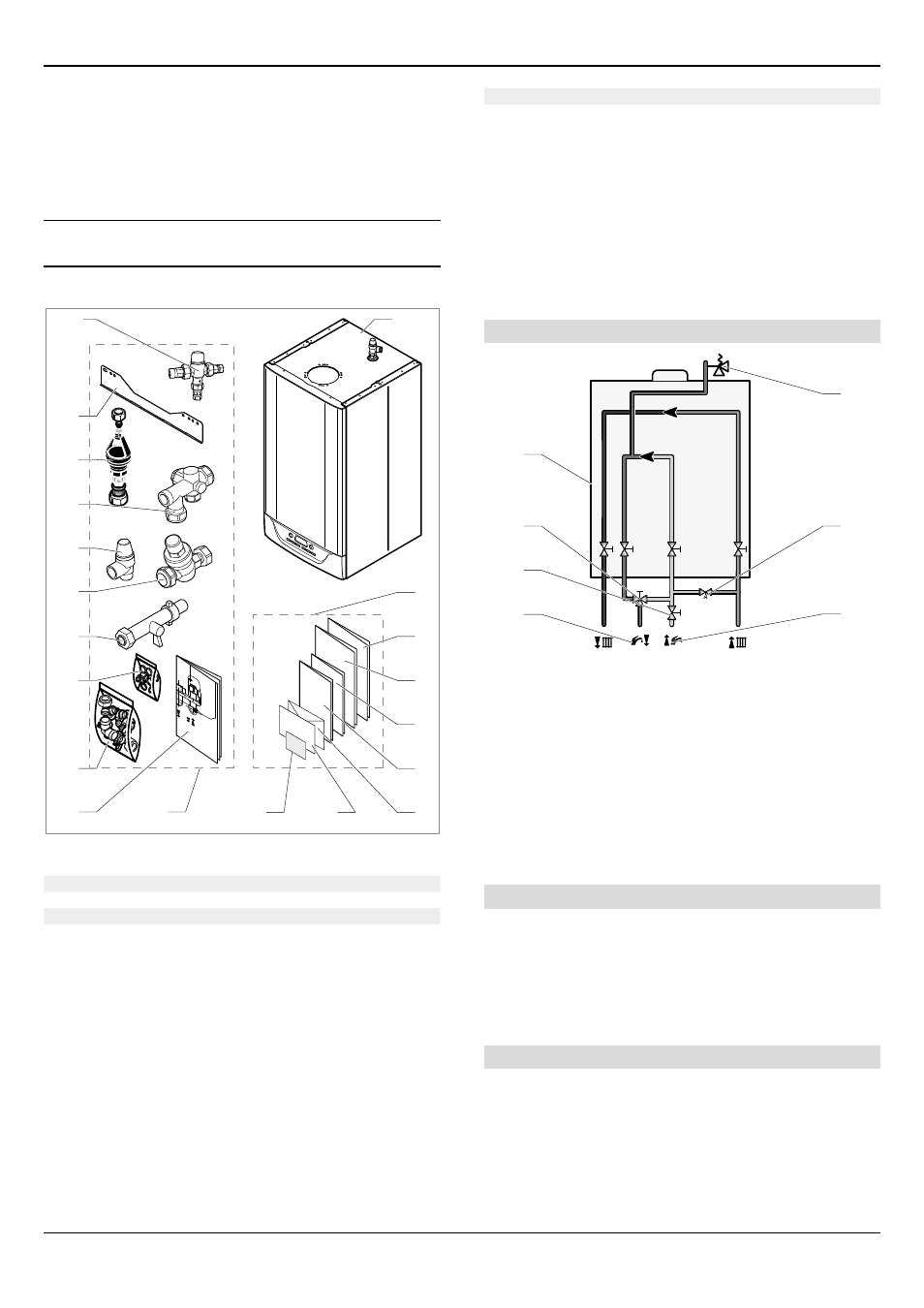

7.1 Scope of delivery
The appliance is delivered in a single carton with a document
pack and fittings.
i The flues package will be ordered according to the
configuration of the installation.
• Please check the contents.
2 2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10 1
3.7 3.6
3
3.1
3.2
3.3
3.4
3.5
Key
1 boiler (x1)
2 Accessories bag (x1)
2.1 Wall template (x1)
2.2 fittings pack (x1)
- Heating return valve (x1)
- Cold water inlet valve (x1)
- Heating flow valve (x1)
- Domestic hot water connection (x1)
- Gas isolation valve (x1)
- Compression fitting (x1)
2.3 Seals bag (x1)
2.4 filling loop (x1)
2.5 Pressure reducing valve (x1)
2.6 Pressure relief valve (x1)
2.7 Check valve (x1)
2.8 Tundish (x1)
2.9 Hanging bracket (x1)
2.10 Mixing valve (x1)
3 Documents bag (x1)
3.1 Installation and servicing manual (x1)
3.2 flue book (x1)
3.3 Instructions for use (x1)
3.4 Extended guarantee leaflet (x1)
3.5 Guarantee envelope pack (x1)
3.6 Magnetic lighting instruction label (x1)
3.7 Gas conversion label (x1)
7.2 Recommendations before installing
7.2.1 Domestic hot water circuit design
Water pressure
4
1
2
3
7
6
5
Key
1 Domestic hot water out
2 Pressure reducing valve (if required)
3 Mixing valve
4 boiler
5 Temperature/pressure relief valve
6 filling loop in accessory box
7 Domestic cold water supply in
The minimum working pressure to obtain the maximum domestic
flow is 1,0 bar.
The boiler is supplied with a pressure reduction valve pre-set to
deliver an inlet pressure of 3.5bar.
‘Hard’ water areas
The temperatures within the heat exchanger are limited by the
boiler control system to minimise scale formation within the hot
water pipework. However, in areas where the water is ‘hard’ (i.e.
more than 200 mg/L of calcium carbonate), it is recommended
that the hot water setting is reduced and that a scale reducer is
fitted, refer to the manufacturer’s instructions or consult the local
water company for additional advice.
Domestic water flow rate
The domestic hot water flow has a restrictor, factory fitted, which
reduces the flow to a maximum of:
- 35 Store ▸ 16 l/min.
